Carburetor replacement parts for 1985 Honda AERO 80 (NH80)

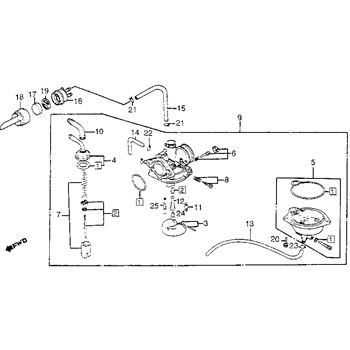

OEM Parts Honda 1985 Honda AERO 80 (NH80) Carburetor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	GASKET SET Part #: 16010-GM9-305 Required per assembly: 1 Not Available
002	NEEDLE, SET, JET Part #: 16012-GN3-671 Required per assembly: 1 Not Available
003	FLOAT SET Part #: 16013-GC7-004 Required per assembly: 1 Not Available
004	TOP SET Part #: 16014-198-690 Required per assembly: 1 $26.31 $24.35 - + Add to cart
005	CHAMBER, SET, FLOAT Part #: 16015-GN3-671 Required per assembly: 1 Not Available
008	SCREW SET B Part #: 16028-GC8-004 Required per assembly: 1 $16.29 $15.81 - + Add to cart
010	CAP, CABLE, SEALING Part #: 16118-GB4-003 Required per assembly: 2 $14.27 $11.90 - + Add to cart
011	VALVE, FLOAT Part #: 16155-883-005 Required per assembly: 1 $23.31 $19.43 - + Add to cart
012	HOLDER, NEEDLE, JET Part #: 16165-GC8-004 Required per assembly: 1 Not Available
013	TUBE, OVERFLOW Part #: 16198-GC7-004 Required per assembly: 1 Not Available
014	TUBE, AIR, VENT Part #: 16199-GC8-004 Required per assembly: 1 Not Available
015	TUBE, BYSTARTER Part #: 16607-GC8-000 Required per assembly: 1 Not Available
016	BODY Part #: 17215-GA6-670 Required per assembly: 1 Not Available
017	ELEMENT Part #: 17216-GA6-670 Required per assembly: 1 Not Available
018	CAP Part #: 17217-GC8-000 Required per assembly: 1 Not Available
019	PLATE Part #: 17218-GB2-000 Required per assembly: 1 Not Available
020	SCREW-WASHER (4X14) Part #: 93892-04014-08 Required per assembly: 2 $2.13 $1.97 - + Add to cart
021	CLIP, TUBE, (B7) Part #: 95002-02070 Required per assembly: 2 $2.79 $2.60 - + Add to cart
022	CLIP, TUBE, (B8) Part #: 95002-02080 Required per assembly: 5 $2.79 $2.60 - + Add to cart
023	CLIP, TUBE, (B6.5) Part #: 95002-02650 Required per assembly: 1 $2.49 $2.31 - + Add to cart
024	JET, MAIN, (#82) Part #: 99101-HP2-0820 $9.45 $8.16 - + Add to cart
024	JET, MAIN, (#88) Part #: 99102-GHB-0880 Required per assembly: 1 $7.18 $6.31 - + Add to cart
025	JET, SLOW, (#35) Part #: 99103-GC8-0350 Required per assembly: 1 Not Available
