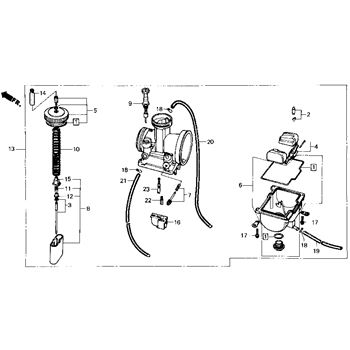

Carburetor 85-89 replacement parts for 1985 Honda CR500R

OEM Parts Honda 1985 Honda CR500R Carburetor 85-89

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	GASKET SET Part #: 16010-KA5-691 Required per assembly: 1 $54.11 $45.12 - + Add to cart
002	VALVE, SET, FLOAT Part #: 16011-KA3-741 Required per assembly: 1 $52.47 $43.75 - + Add to cart
003	NDL, JET, (R1369N) Part #: 16201-HB9-671 Required per assembly: 1 Not Available
004	FLOAT SET Part #: 16013-HA2-671 Required per assembly: 1 Not Available
005	TOP SET Part #: 16014-KA5-691 Required per assembly: 1 Not Available
006	CHAMBER, SET, FLOAT Part #: 16015-KA3-761 Required per assembly: 1 Not Available
007	SCREW SET Part #: 16016-HA2-004 Required per assembly: 1 Not Available
008	VALVE, SET, THROTTLE Part #: 16022-KA5-691 Required per assembly: 1 Not Available
009	VALVE, SET, STARTER Part #: 16046-KA5-691 Required per assembly: 1 $65.30 $61.48 - + Add to cart
010	SPRING, COMPRESSION Part #: 16050-KA5-691 Required per assembly: 1 Not Available
011	SPRING Part #: 16051-KA3-761 Not Available
012	COLR, SPRING, SETTING Part #: 16066-KA3-761 Not Available
013	CARBURETOR ASSEMBLY Part #: 16100-KA5-305 Required per assembly: 1 Not Available
014	CAP, CABLE, SEALING Part #: 16118-166-004 Required per assembly: 1 $9.71 $8.36 - + Add to cart
015	HOLDER, CABLE Part #: 16137-KA3-761 Required per assembly: 1 Not Available
016	PLATE, BUFFER Part #: 16185-KA3-761 Required per assembly: 1 Not Available
017	SCREW, PAN, (4X16) Part #: 93500-04016-0H $1.87 $1.73 - + Add to cart
018	CLIP, TUBE, (B7) Part #: 95002-02070 Required per assembly: 2 $2.79 $2.60 - + Add to cart
019	BULK, HOSE, VINYL Part #: 95003-05008-60M Required per assembly: 1 $28.39 - + Add to cart
020	BULK HOSE (4X7X8000) Part #: 95003-07008-60M Required per assembly: 1 $33.81 - + Add to cart
021	BULK HOSE (4X7X8000) Part #: 95003-07008-60M Required per assembly: 1 $33.81 - + Add to cart
022	JET, MAIN, (#168) Part #: 99113-GHB-1680 $10.91 $9.33 - + Add to cart
023	JET, SLOW, (#65) Part #: 99103-KA3-0650 Not Available
