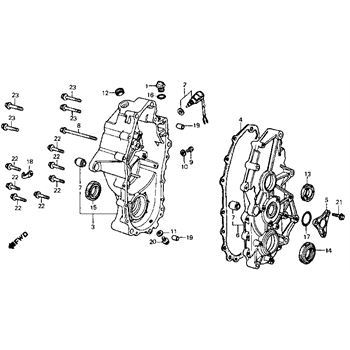

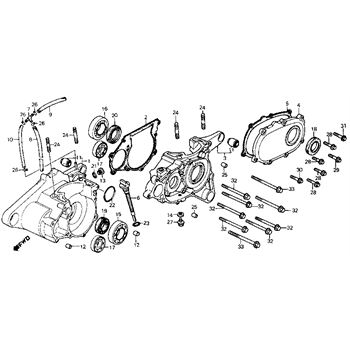

Crankcase replacement parts for 1985 Honda ODYSSEY 350 (FL350R)

OEM Parts Honda 1985 Honda ODYSSEY 350 (FL350R) Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

002	GASKET, CRANKCASE Part #: 11191-VM0-306 Required per assembly: 1 Not Available
005	GASKET, L. Part #: 11395-VM0-306 Required per assembly: 1 Not Available
007	JOINT, FUEL Part #: 16235-399-000 Required per assembly: 1 Not Available
008	TUBE Part #: 17530-437-000 Required per assembly: 1 $10.35 $8.88 - + Add to cart
012	PIN, DOWEL, (12X16) Part #: 90036-357-000 Required per assembly: 2 $4.60 - + Add to cart
013	CAP, ALTERNATOR Part #: 90084-471-000 Required per assembly: 1 Not Available
014	WASHER (10.2MM) Part #: 90601-ZE1-000 Required per assembly: 1 $2.11 $1.96 - + Add to cart
015	BEARING (6306) (C3) Part #: 91032-HE0-005 Required per assembly: 1 Not Available
016	BEARING (6307) (C3) Part #: 91001-KC4-004 Required per assembly: 1 Not Available
017	BEARING (6204) Part #: 91102-GE1-711 Required per assembly: 2 $21.72 $18.11 - + Add to cart
018	OIL SEAL (30X50X7) Part #: 91201-VM0-004 Required per assembly: 1 Not Available
019	OIL SEAL (25X40X8) Part #: 91202-VM0-003 Required per assembly: 1 Not Available
020	OIL SEAL (45X62X8) Part #: 91203-VM0-004 Required per assembly: 1 Not Available
021	O-RING (13.8X2.5) Part #: 91303-MG7-003 Required per assembly: 1 $4.43 $4.03 - + Add to cart
021	O-RING (13.8X2.5) Part #: 91303-377-000 Required per assembly: 1 $4.75 $4.32 - + Add to cart
023	O-RING (11.9X2.2) Part #: 91370-461-000 Required per assembly: 1 $3.43 $3.12 - + Add to cart
024	BOLT, 2, STUD, (10X45) Part #: 92900-10045-3B Required per assembly: 4 $3.11 $2.90 - + Add to cart
025	PIN, A, DOWEL, (10X14) Part #: 94301-10140 Required per assembly: 2 $3.50 $3.18 - + Add to cart
026	CLIP, TUBE, (C9) Part #: 95002-50000 Required per assembly: 1 $2.32 $2.15 - + Add to cart
027	BOLT, FLANGE, (10X16) Part #: 95701-10016-08 Required per assembly: 2 $3.21 $2.99 - + Add to cart
028	BOLT, FLANGE, (6X22) Part #: 96001-06022-00 Required per assembly: 2 $2.27 $2.10 - + Add to cart
029	BOLT, FLANGE, (6X25) Part #: 96001-06025-00 Required per assembly: 2 $3.07 $2.86 - + Add to cart
030	BOLT, FLANGE, (6X32) Part #: 96001-06032-00 Required per assembly: 1 $2.41 $2.23 - + Add to cart
031	BOLT, FLANGE, (6X35) Part #: 96001-06035-00 Required per assembly: 3 $2.41 $2.23 - + Add to cart
032	BOLT, FLANGE, (6X65) Part #: 96001-06065-00 Required per assembly: 4 $3.55 $3.23 - + Add to cart
033	BOLT, FLANGE, (6X70) Part #: 96001-06070-00 Required per assembly: 2 $2.94 $2.67 - + Add to cart
