Water Pipe replacement parts for 1985 Honda V30 MAGNA (VF500C)

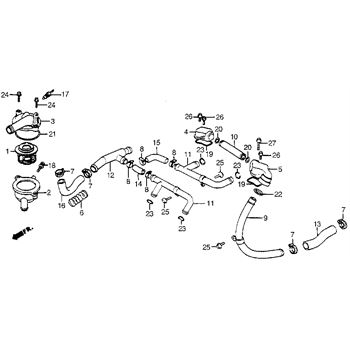

OEM Parts Honda 1985 Honda V30 MAGNA (VF500C) Water Pipe

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	THERMOSTAT Part #: 19300-MB0-003 Required per assembly: 1 $61.18 $51.00 - + Add to cart
003	COVER, THERMOSTAT Part #: 19315-MJ8-000 Required per assembly: 1 Not Available
004	CAP, A, CONNECTING Part #: 19508-MB0-000 Required per assembly: 1 Not Available
007	CLAMP, WATER, HOSE Part #: 19503-MB1-870 Required per assembly: 2 $14.56 $12.14 - + Add to cart
007	CLAMP, WATER, HOSE Part #: 19503-MB1-870 Required per assembly: 4 $14.56 $12.14 - + Add to cart
008	CLAMP, B, WATER, HOSE Part #: 19517-MJ8-000 Required per assembly: 4 Not Available
010	PIPE, B, WATER Part #: 19522-KE7-000 Required per assembly: 1 Not Available
017	THERMO UNIT Part #: 37750-PC1-004 Required per assembly: 1 $94.28 $85.75 - + Add to cart
018	BOLT, SPECIAL, (8MM) Part #: 90042-MB6-000 Required per assembly: 1 Not Available
019	GASKET, CONNECTING, CAP Part #: 91301-MB0-000 Required per assembly: 2 $5.49 $4.99 - + Add to cart
020	O-RING (18.3X2.3) Part #: 91301-147-023 Required per assembly: 2 $3.17 $2.94 - + Add to cart
021	O-RING (54X2) Part #: 91307-MB0-003 Required per assembly: 1 $4.86 $4.42 - + Add to cart
022	O-RING (19X3) Part #: 91312-KE7-003 Required per assembly: 1 $3.64 $3.31 - + Add to cart
023	O-RING (13X3.0) Part #: 91302-MB6-830 Required per assembly: 1 $2.94 $2.73 - + Add to cart
024	BOLT, FLANGE, (6X22) Part #: 95701-06022-00 Required per assembly: 1 $2.79 $2.54 - + Add to cart
025	BOLT, FLANGE, (6X14) Part #: 96001-06014-07 Required per assembly: 2 $2.22 $2.06 - + Add to cart
026	BOLT, FLANGE, (6X22) Part #: 96001-06022-07 Required per assembly: 3 $2.84 $2.64 - + Add to cart
027	BOLT, FLANGE, (6X35) Part #: 96001-06035-07 Required per assembly: 1 $3.14 $2.91 - + Add to cart
