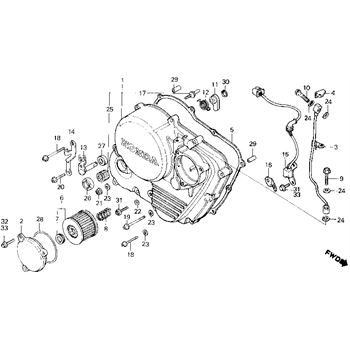

Right Crankcase Cover replacement parts for 1985 Honda XL600R

OEM Parts Honda 1985 Honda XL600R Right Crankcase Cover

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COVER, R., CRANKCASE Part #: 11330-MG2-791 Required per assembly: 1 Not Available
003	PIPE, OIL, PASSAGE Part #: 11335-MG3-010 Required per assembly: 1 Not Available
004	STOPPER, OIL, PIPE Part #: 11336-KN8-730 Required per assembly: 1 Not Available
005	GASKET, R. Part #: 11394-MY2-624 Required per assembly: 1 $33.57 $27.99 - + Add to cart
006	ELEMENT, OIL, FILTER Part #: 15410-KF0-315 Required per assembly: 1 $6.65 $5.86 - + Add to cart
007	RUBBER, FILTER Part #: 15413-MC8-000 Required per assembly: 1 $4.68 $4.25 - + Add to cart
008	SPRING Part #: 15414-KF0-000 Required per assembly: 1 $5.63 $5.12 - + Add to cart
009	BOLT, FLANGE, (8X30) Part #: 15532-MA6-000 Required per assembly: 1 $10.67 $9.14 - + Add to cart
010	BOLT, FLANGE, (8X30) Part #: 15531-KN8-730 Required per assembly: 1 $9.45 $8.16 - + Add to cart
011	FOLLOWER, CAM Part #: 28271-428-000 Required per assembly: 1 Not Available
012	SPRING, FOLLOWER Part #: 28274-KF0-000 Required per assembly: 1 Not Available
013	SHAFT, FOLLOWER Part #: 28280-MG3-000 Required per assembly: 1 Not Available

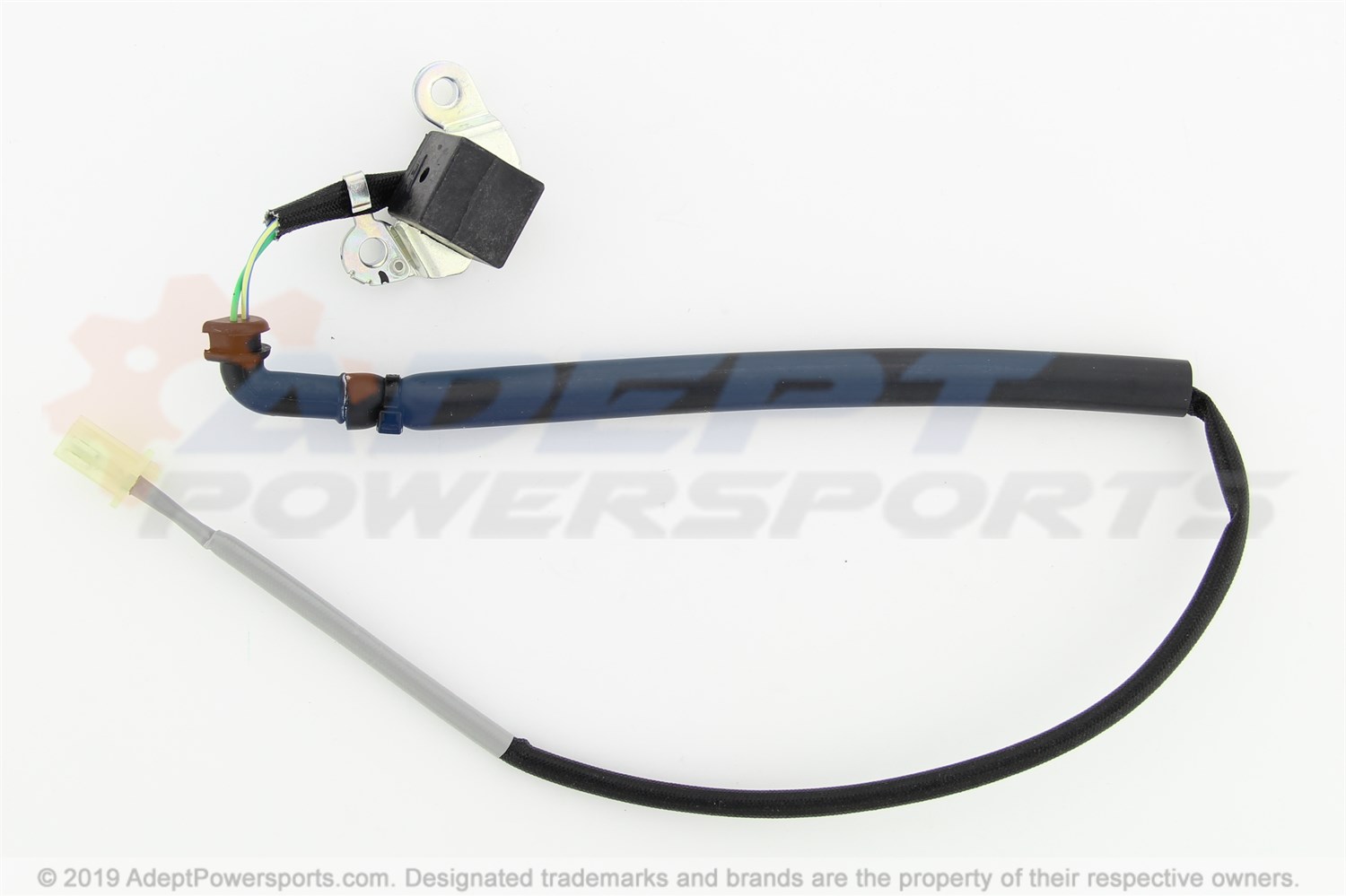

015	GENERATOR, PULSE Part #: 30300-MK2-010 Required per assembly: 1 Not Available
017	BOLT, SPECIAL, (6MM) Part #: 90041-MG3-000 Required per assembly: 1 Not Available
018	BOLT (6X25) Part #: 90091-KF0-000 Required per assembly: 8 $5.07 $4.61 - + Add to cart
019	BOLT (6X40) Part #: 90093-KF0-000 Required per assembly: 2 $5.74 $5.22 - + Add to cart
020	BOLT (6X28) Part #: 90098-KF0-000 Required per assembly: 2 $4.85 $4.41 - + Add to cart
021	NUT, U, (6MM) Part #: 90301-MG3-000 Required per assembly: 2 $8.30 $7.23 - + Add to cart
022	WASHER (11MM) Part #: 90425-300-000 Required per assembly: 1 $3.69 $3.35 - + Add to cart
023	WASHER (6MM) Part #: 90461-MG3-000 Required per assembly: 10 Not Available
024	GASKET Part #: 90544-439-930 Required per assembly: 4 $3.10 $2.89 - + Add to cart
025	BEARING (20X26X12) Part #: 91051-V19-003 Required per assembly: 1 $23.82 $19.29 - + Add to cart
026	OIL SEAL (20X32X6) Part #: 91201-360-005 Required per assembly: 1 $5.24 - + Add to cart
027	OIL SEAL (12X22X5) Part #: 91201-965-000 Required per assembly: 1 $5.43 $4.94 - + Add to cart
028	O-RING (54X2.4) Part #: 91302-KF0-003 Required per assembly: 1 $4.17 $3.75 - + Add to cart
029	PIN, DOWEL, (8X20) Part #: 94301-08200 Required per assembly: 2 $3.21 $2.99 - + Add to cart
030	CIRCLIP (10MM) Part #: 94510-10000 Required per assembly: 1 $2.13 $1.97 - + Add to cart
031	BOLT, FLANGE, (6X16) Part #: 95701-06016-00 Required per assembly: 1 Note: 95701-06016-08* $2.63 $2.44 - + Add to cart
032	BOLT, FLANGE, (6X18) Part #: 96001-06018-07 Required per assembly: 2 $2.29 $2.12 - + Add to cart
033	BOLT, FLANGE, (6X20) Part #: 96001-06020-07 Required per assembly: 2 $2.38 $2.20 - + Add to cart
