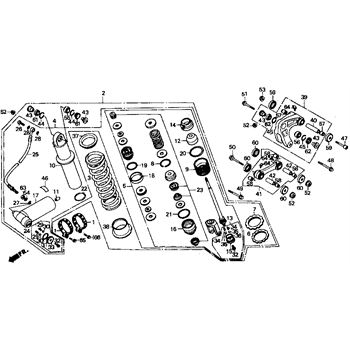

Shock Absorber 85-87 replacement parts for 1985 Honda XR600R

OEM Parts Honda 1985 Honda XR600R Shock Absorber 85-87

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

002	SHOCK, ABSORBER, RR. Part #: 52400-MK2-003 Required per assembly: 1 Not Available
003	SPRING, RR., SHOCK Part #: 52401-KN5-003 Required per assembly: 1 Not Available
004	DAMPER, RR. Part #: 52410-MK2-003 Required per assembly: 1 Not Available
006	ADJUSTER, SPRING Part #: 52422-KN5-003 Required per assembly: 1 Not Available
007	NUT, ADJUSTER Part #: 52423-KA3-711 Required per assembly: 1 Not Available
009	SEAT, SPRING Part #: 52424-MK2-771 Required per assembly: 1 Not Available
010	CASE, SHOCK, ABSORBER Part #: 52425-MK2-003 Required per assembly: 1 Not Available
011	CAP, AIR, VALVE Part #: 52425-381-771 Required per assembly: 1 $5.96 $5.42 - + Add to cart
014	PLATE, END Part #: 52428-MK2-771 Required per assembly: 1 Not Available
019	O-RING C (2.0X29.5) Part #: 52432-KF0-003 Required per assembly: 1 Not Available
020	O-RING (2.0X47.5) Part #: 52432-MK2-771 Required per assembly: 1 Not Available
022	RING, STOPPER Part #: 52435-KF0-003 Required per assembly: 1 Not Available
023	OIL SEAL SET Part #: 52436-MK2-771 Required per assembly: 1 Not Available
026	BOLT, OIL, (10X22) Part #: 52441-KA3-711 Required per assembly: 2 Not Available
027	O-RING (9.8X1.9) Part #: 52441-MA0-003 Required per assembly: 2 Not Available
028	WASHER (10MM) Part #: 52442-KA3-711 Required per assembly: 2 $3.44 $3.13 - + Add to cart
029	SPRING, CLICK Part #: 52445-KN5-003 Required per assembly: 2 Not Available
031	O-RING (2X23.5) Part #: 52447-KF0-003 Required per assembly: 1 Not Available
032	SCREW Part #: 52448-KF0-003 Required per assembly: 1 $3.57 - + Add to cart
034	SPRING, CLICK Part #: 52455-KF0-003 Required per assembly: 2 $5.44 $4.89 - + Add to cart
035	BALL Part #: 52456-KF0-003 Required per assembly: 2 $3.90 - + Add to cart
036	SEAL, RING Part #: 52457-KN5-003 Required per assembly: 1 $7.86 $6.85 - + Add to cart
037	SEAT, B, SPRING Part #: 52458-KN5-003 Required per assembly: 1 Not Available
038	SEAT, C, SPRING Part #: 52459-KN5-003 Required per assembly: 1 Not Available
039	ARM, SHOCK, ABSORBER Part #: 52460-MK2-010 Required per assembly: 1 Not Available
040	COLLAR Part #: 52463-KN5-000 Required per assembly: 1 $22.18 $17.95 - + Add to cart
041	ROD ASSEMBLY Part #: 52470-KN5-000 Required per assembly: 1 Not Available
042	COLLAR Part #: 52473-KN5-000 Required per assembly: 2 $14.10 $11.41 - + Add to cart
043	COLLAR, SHOCK Part #: 52486-KN5-003 Required per assembly: 4 Not Available
044	RING, STOPPER Part #: 52487-KA4-831 Required per assembly: 2 $5.29 $4.81 - + Add to cart
045	RING, STOPPER Part #: 52487-KN5-000 Required per assembly: 2 $4.28 $3.89 - + Add to cart
047	BOLT (12X100) Part #: 90128-MV1-000 Required per assembly: 1 Not Available
048	BOLT, FLANGE, (10X77) Part #: 90129-KF0-000 Required per assembly: 1 $17.22 $14.36 - + Add to cart
049	BOLT, FLANGE, (10X72) Part #: 90150-KF0-000 Required per assembly: 1 $17.13 $14.28 - + Add to cart
050	BOLT, FLANGE, (10X69) Part #: 90151-KV6-910 Required per assembly: 1 Not Available
051	BOLT, FLANGE, (10X48) Part #: 90153-KA3-730 Required per assembly: 1 Not Available
052	NUT, U, (10MM) Part #: 90304-GE8-003 Required per assembly: 1 Note: Sold in multiples of 5 only $4.58 - + Add to cart
053	NUT, FLANGE, (12MM) Part #: 90306-KF0-003 Required per assembly: 5 $5.21 $4.74 - + Add to cart
054	WASHER Part #: 90501-MT2-000 Required per assembly: 1 $3.03 $2.81 - + Add to cart
055	BEARING (14MM) Part #: 91077-KN5-004 Required per assembly: 2 $24.73 $20.60 - + Add to cart
057	BEARING, CUSHION, ARM Part #: 91078-KN5-003 Required per assembly: 2 $32.96 $27.48 - + Add to cart
058	BEARING, CONN, ROD Part #: 91079-KN5-003 Required per assembly: 4 $14.73 $12.28 - + Add to cart
059	SEAL, CUSHION, ARM Part #: 91261-KN5-003 Required per assembly: 2 $11.70 $9.98 - + Add to cart
060	SEAL Part #: 91262-KN5-003 Required per assembly: 4 $11.70 $9.98 - + Add to cart
061	DUST SEAL B Part #: 91351-KN5-003 Required per assembly: 2 Not Available
062	DUST SEAL B Part #: 91351-KN5-004 Required per assembly: 2 $5.43 $4.94 - + Add to cart
063	NUT, HEX., (12MM) Part #: 94002-12000-0S Required per assembly: 1 $3.14 $2.91 - + Add to cart
064	NIPPLE (B.T6S) Part #: 96201-80000 Required per assembly: 1 $3.59 $3.26 - + Add to cart
065	BOLT, FLANGE, (6X20) Part #: 96300-06020-00 Required per assembly: 1 $2.18 $1.98 - + Add to cart
066	BOLT, FLANGE, (6X25) Part #: 96300-06025-00 Required per assembly: 2 $2.48 $2.29 - + Add to cart
