Swingarm replacement parts for 1986 Honda ALL TERRAIN CYCLE (ATC350X)

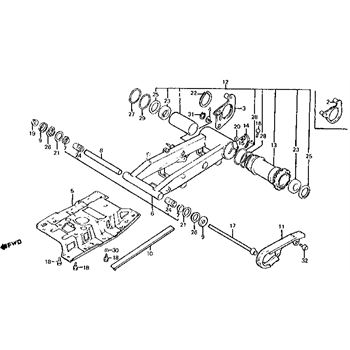

OEM Parts Honda 1986 Honda ALL TERRAIN CYCLE (ATC350X) Swingarm

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COLLAR, RR., AXLE Part #: 42621-HA5-000 Required per assembly: 1 $40.61 $36.92 - + Add to cart
004	BUSH, RR., BRAKE, STAY Part #: 43483-HA2-670 Required per assembly: 1 Not Available
006	SWINGARM, ASSEMBLY, RR. Part #: 52000-HA5-672 Required per assembly: 1 Not Available
007	BUSH, PIVOT, THRUST Part #: 52109-KA4-701 Required per assembly: 2 $18.57 $15.47 - + Add to cart
009	CAP Part #: 52144-HA5-000 Required per assembly: 2 $15.02 $12.51 - + Add to cart
010	SLIDER, SKID, PLATE Part #: 52156-HB9-000 Required per assembly: 1 Not Available
014	SEAL, BEARING, HOLDER Part #: 52202-HA2-000 Required per assembly: 2 $17.64 $14.72 - + Add to cart
015	BOLT, STOPPER, (8MM) Part #: 90115-964-003 Required per assembly: 1 $5.04 $4.58 - + Add to cart
016	BOLT, SOCKET, (8MM) Part #: 90116-125-782 Required per assembly: 2 Not Available
018	BOLT, FLANGE, (8X12) Part #: 90190-MG3-000 Required per assembly: 3 $4.93 $4.48 - + Add to cart
019	NUT, U, (14MM) Part #: 90305-GE8-003 Required per assembly: 1 $5.24 $4.76 - + Add to cart
020	WASHER (8MM) Part #: 90481-035-000 Required per assembly: 1 $2.86 $2.65 - + Add to cart
021	WASHER, PLAIN, (32MM) Part #: 90551-HA5-000 Required per assembly: 2 $7.84 $6.84 - + Add to cart
022	CIRCLIP (OUTER) (70) Part #: 90665-964-000 Required per assembly: 1 $15.30 $11.96 - + Add to cart
023	BEARING (40X62X12) Part #: 91051-HA2-013 Required per assembly: 2 $27.18 $24.21 - + Add to cart
024	BEARING, SWINGARM Part #: 91071-MA0-003 Required per assembly: 2 $38.37 $31.99 - + Add to cart
025	DUST SEAL (52X62X7) Part #: 91252-HA2-003 Required per assembly: 2 $19.52 $15.26 - + Add to cart
026	DUST SEAL Part #: 91253-KA4-701 Required per assembly: 2 $14.91 $12.43 - + Add to cart
027	O-RING, ROTARY, CASE Part #: 91351-737-752 Required per assembly: 1 $5.54 $5.04 - + Add to cart
028	O-RING Part #: 91353-HA2-003 Required per assembly: 2 $8.19 $7.14 - + Add to cart
029	O-RING (69X2) Part #: 91302-MS2-003 Required per assembly: 1 $5.52 $5.02 - + Add to cart
030	WASHER, PLAIN, (8MM) Part #: 94103-08000 Required per assembly: 4 $1.72 $1.58 - + Add to cart
031	CIRCLIP (12MM) Part #: 94510-12000 Required per assembly: 1 $2.86 $2.65 - + Add to cart
032	BOLT, FLANGE, (6X10) Part #: 96300-06010-00 Required per assembly: 2 $1.98 $1.83 - + Add to cart
