Carburetor Component replacement parts for 1986 Honda SHADOW 500 (VT500C)

OEM Parts Honda 1986 Honda SHADOW 500 (VT500C) Carburetor Component

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	GASKET SET Part #: 16010-MM9-305 Required per assembly: 2 Not Available
002	VALVE, SET, FLOAT Part #: 16011-KE9-701 Required per assembly: 2 Not Available
003	FLOAT SET Part #: 16013-MB0-671 Required per assembly: 4 $63.83 $53.23 - + Add to cart
004	CHAMBER, SET, FLOAT Part #: 16015-ME9-721 Required per assembly: 2 Not Available
005	SCREW SET Part #: 16016-MAH-670 Required per assembly: 2 $30.69 $25.58 - + Add to cart
006	SCREW SET C Part #: 16029-MB0-671 Required per assembly: 1 Not Available
007	PLATE, SET, VALVE Part #: 16037-ME5-671 Required per assembly: 2 $32.26 $26.11 - + Add to cart
008	VALVE, SET, STARTER Part #: 16046-ME9-672 Required per assembly: 2 Not Available
009	SPRING Part #: 16050-MF5-671 Required per assembly: 2 Not Available
010	SPRING Part #: 16052-ME9-672 Required per assembly: 1 $6.81 $6.02 - + Add to cart
011	TOP Part #: 16108-MJ1-671 Required per assembly: 2 $46.95 $39.15 - + Add to cart
012	PISTON, VACUUM Part #: 16111-MF5-841 Required per assembly: 2 $192.96 $163.28 - + Add to cart
013	CAP, CABLE, SEALING Part #: 16118-ME9-671 Required per assembly: 2 $15.48 $12.92 - + Add to cart
016	HOLDER, NEEDLE, JET Part #: 16165-MF5-671 Required per assembly: 2 Not Available
017	SCREW, PAN, (4X10) Part #: 93500-04010-0H Required per assembly: 1 $1.95 $1.80 - + Add to cart
018	SCREW-WASHER (4X16) Part #: 93892-04016-00 Required per assembly: 8 $1.56 $1.46 - + Add to cart
019	JET, MAIN, (#108) Part #: 99101-MAZ-1080 $10.35 $8.88 - + Add to cart
020	JET, MAIN, (#115) Part #: 99101-MAZ-1150 Required per assembly: 2 $10.17 $8.72 - + Add to cart

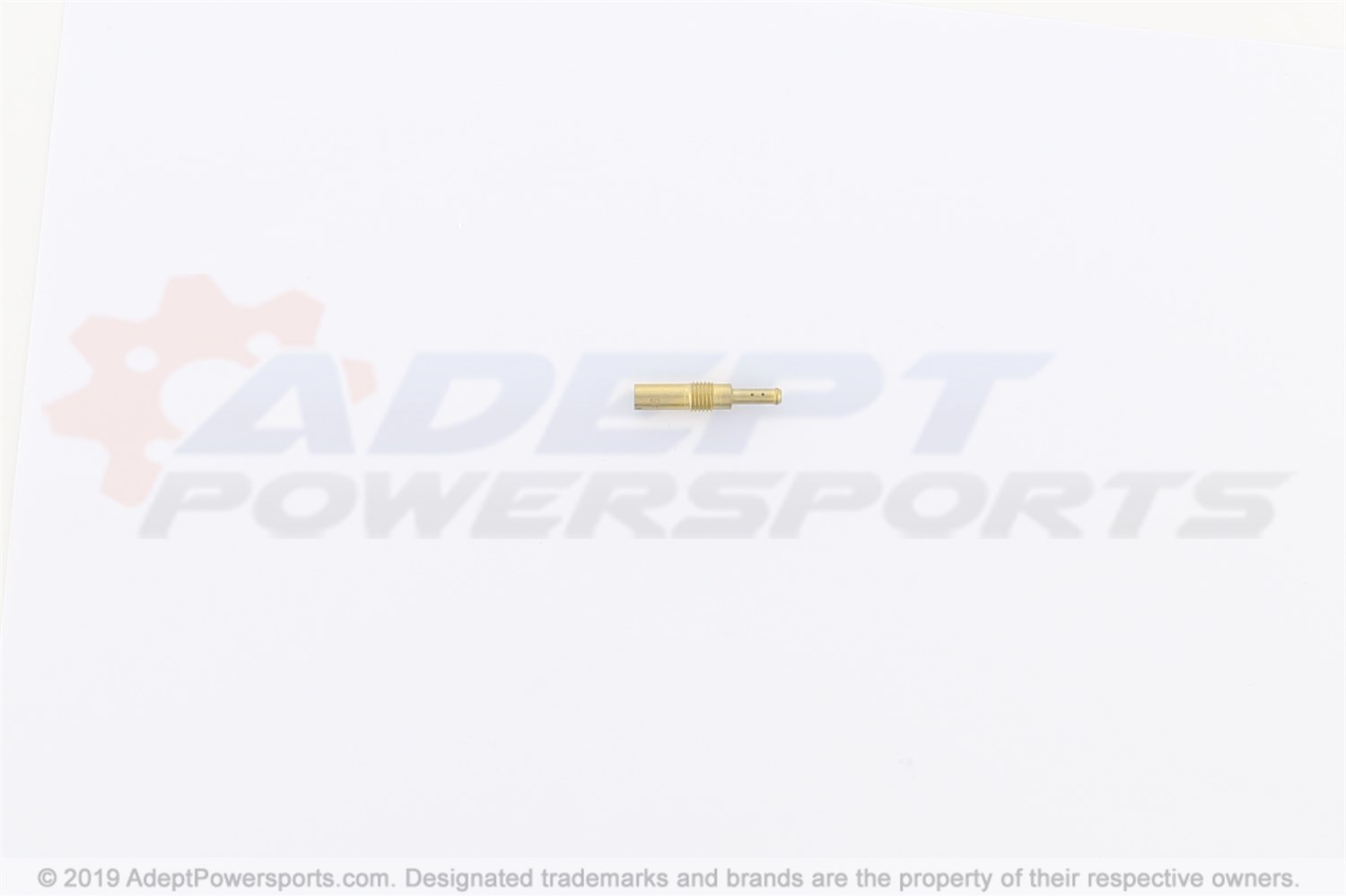

021	JET, SLOW, (#38) Part #: 99103-MY0-0380 Required per assembly: 2 $22.27 $18.02 - + Add to cart
022	JET, SLOW, (#40) Part #: 99103-MZ8-0400 Required per assembly: 1 Not Available
