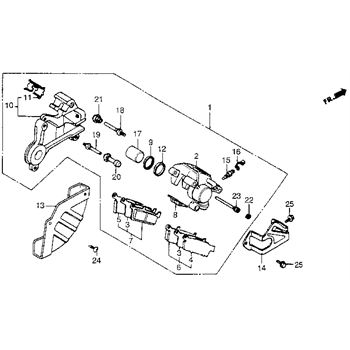

Rr. Brake Caliper replacement parts for 1987 Honda CR250R

OEM Parts Honda 1987 Honda CR250R Rr. Brake Caliper

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

002	BODY, RR., CALIPER Part #: 43130-KS6-305 Required per assembly: 1 Not Available
003	INSULATOR Part #: 43102-KS6-701 Required per assembly: 2 Not Available
004	RETAINER, A, PAD Part #: 43103-KS6-702 Required per assembly: 1 Not Available
005	RETAINER, B, PAD Part #: 43104-KS6-702 Required per assembly: 1 Not Available
006	PAD A Part #: 43105-KS6-702 Required per assembly: 1 Not Available
007	PAD B Part #: 43106-KS6-702 Required per assembly: 1 Not Available
008	SPRING, PAD Part #: 43108-MY6-671 Required per assembly: 1 $6.35 $5.63 - + Add to cart
009	DUST SEAL Part #: 43109-MA3-006 Required per assembly: 1 $6.88 $6.08 - + Add to cart
011	RETAINER Part #: 43112-KS6-701 Required per assembly: 1 $7.29 $6.40 - + Add to cart
012	SEAL, PISTON Part #: 43209-MA3-006 Required per assembly: 1 $8.45 $7.34 - + Add to cart
013	COVER, RR., DISK Part #: 43330-KS6-700 Required per assembly: 1 $29.55 $24.64 - + Add to cart
014	GUARD, RR., CALIPER Part #: 43340-KS6-831 Required per assembly: 1 Not Available
015	SCREW, BLEEDER Part #: 43352-568-003 Required per assembly: 1 $9.56 $8.94 - + Add to cart
016	CAP, BLEEDER Part #: 43353-461-771 Required per assembly: 1 $6.07 $5.42 - + Add to cart
017	PISTON Part #: 45107-ML4-006 Required per assembly: 2 $43.88 $36.60 - + Add to cart
018	BOLT, A, PIN Part #: 45131-HA5-672 Required per assembly: 2 $17.88 $14.92 - + Add to cart
019	BOLT, PIN Part #: 45131-166-016 Required per assembly: 1 $9.17 $7.92 - + Add to cart
020	BOOT, PIN, BUSH Part #: 45132-166-016 Required per assembly: 1 $6.57 $5.81 - + Add to cart
021	BOOT B Part #: 45133-MA3-006 Required per assembly: 1 $6.57 $5.81 - + Add to cart
022	PLUG, PIN Part #: 45203-MG3-016 Required per assembly: 1 $6.15 $5.47 - + Add to cart
023	PIN, HANGER Part #: 45215-KA3-732 Required per assembly: 2 $13.34 $11.12 - + Add to cart
024	SCREW (6X10) Part #: 90101-KS6-700 Required per assembly: 2 $3.14 $2.46 - + Add to cart
025	BOLT, FLANGE, (6X12) Part #: 96300-06012-00 Required per assembly: 2 $1.98 $1.83 - + Add to cart
NI	PAD, SET, RR., BRAKE Part #: 43105-KZ1-415 Required per assembly: 1 $45.28 $36.12 - + Add to cart
