Pedal 87 replacement parts for 1987 Honda Elite 150 (CH150)

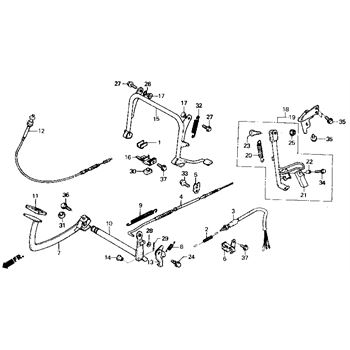

OEM Parts Honda 1987 Honda Elite 150 (CH150) Pedal 87

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	PROTECTOR Part #: 19105-GE2-000 Required per assembly: 1 Not Available
002	SPRING, STOP, SWITCH Part #: 35357-KE1-000 Required per assembly: 1 $7.40 $6.49 - + Add to cart
003	SWITCH, STARTER, STOP Part #: 35370-KM1-000 Required per assembly: 1 Not Available
004	CABLE, RR., BRAKE Part #: 43450-KV8-971 Required per assembly: 1 Not Available
005	STOPPER, RR. Part #: 43451-KG8-000 Required per assembly: 1 $3.64 - + Add to cart
006	CLAMP, RR. Part #: 43453-KN7-670 Required per assembly: 1 Not Available
007	PEDAL, RR., BRAKE Part #: 46500-KV7-670 Required per assembly: 1 Not Available
008	SPRING B Part #: 46510-KJ9-000 Required per assembly: 1 $5.04 $4.58 - + Add to cart
009	SPRING, BRAKE, PEDAL Part #: 46514-KM7-910 Required per assembly: 1 Not Available
009	SPRING, BRAKE, PEDAL Part #: 46514-KE1-000 Required per assembly: 1 Not Available
010	ARM, MIDDLE Part #: 46515-KV7-671 Required per assembly: 1 Not Available
011	COVER, PEDAL Part #: 46545-538-010 Required per assembly: 1 $6.89 $6.58 - + Add to cart
012	CABLE, BRAKE, LOCK Part #: 46620-KV7-670 Required per assembly: 1 Not Available
013	PLATE, PEDAL, STOPPER Part #: 46625-KV7-670 Required per assembly: 1 Not Available
014	BUSH, STOPPER, PLATE Part #: 46633-KJ9-000 Required per assembly: 1 Not Available
015	STAND, MAIN Part #: 50500-KV7-670 Required per assembly: 1 Not Available
016	PLATE Part #: 50501-KV7-670 Required per assembly: 1 $11.95 $10.40 - + Add to cart
017	COLLAR, MAIN, STAND Part #: 50504-KJ9-670 Required per assembly: 2 Not Available
018	STAND, ASSEMBLY, SIDE Part #: 50510-KV7-670 Required per assembly: 1 Not Available
019	STAY, SIDE, STAND Part #: 50520-KV7-670 Required per assembly: 1 Not Available
020	SPRING, SIDE, STAND Part #: 50532-KN7-670 Required per assembly: 1 Not Available
021	RUBBER, STAND Part #: 50548-324-760 Required per assembly: 1 $14.45 $12.05 - + Add to cart
022	COLLAR Part #: 50549-356-700 Required per assembly: 1 $3.73 $3.39 - + Add to cart
023	SCREW Part #: 90108-KN7-670 Required per assembly: 1 $4.87 - + Add to cart
024	BOLT, FLANGE, (6X9) Part #: 90132-KV7-670 Required per assembly: 1 Not Available
025	NUT, FLG, (M8X1.25) Part #: 90309-428-731 Required per assembly: 1 $4.68 $4.25 - + Add to cart
026	O-RING (14X1.5) Part #: 91304-035-000 Required per assembly: 1 $3.73 $3.39 - + Add to cart
027	BOLT-WASHER (10X20) Part #: 93401-10020-07 Required per assembly: 2 $2.55 $2.36 - + Add to cart
028	WASHER, PLAIN, (6MM) Part #: 94101-06800 Required per assembly: 2 Not Available
029	PIN, SPLIT, (2.0X12) Part #: 94201-20120 Required per assembly: 1 $2.07 $1.91 - + Add to cart
030	RUBBER A Part #: 95011-61000 Required per assembly: 1 $2.27 $2.10 - + Add to cart
031	RUBBER C Part #: 95011-63000 Required per assembly: 2 $5.28 $4.80 - + Add to cart
032	SPRING, D, MAIN, STAND Part #: 95014-71402 Required per assembly: 1 $3.51 $3.19 - + Add to cart
033	BOLT, FLANGE, (6X16) Part #: 95701-06016-00 Required per assembly: 1 Note: 95701-06016-08* $2.63 $2.44 - + Add to cart
034	BOLT, FLANGE, (6X25) Part #: 95701-06025-07 Required per assembly: 2 $2.79 $2.60 - + Add to cart
035	BOLT, FLANGE, (8X12) Part #: 95701-08012-00 Required per assembly: 2 $2.17 $2.00 - + Add to cart
036	BOLT, FLANGE, (8X32) Part #: 95701-08032-00 Required per assembly: 1 $2.40 $2.22 - + Add to cart
037	BOLT, FLANGE, (6X12) Part #: 96001-06012-00 Required per assembly: 2 $2.79 $2.60 - + Add to cart
037	BOLT, FLANGE, (6X14) Part #: 96001-06014-00 Required per assembly: 2 $2.79 $2.60 - + Add to cart
