Rear Wheel replacement parts for 1987 Honda FATCAT (TR200)

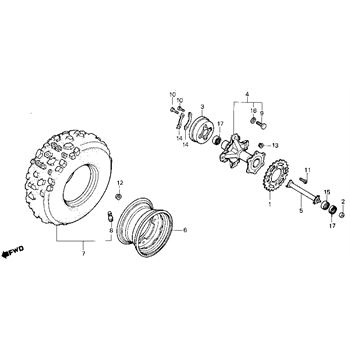

OEM Parts Honda 1987 Honda FATCAT (TR200) Rear Wheel

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SPROCKET (39T) Part #: 41201-HB7-505 Required per assembly: 1 Not Available
008	VALVE, RIM Part #: 42753-SB8-661 Required per assembly: 2 Note: Sold in multiples of 10 only $2.92 $2.71 - + Add to cart
010	BOLT, BRAKE, DRUM Part #: 90109-HB7-000 Required per assembly: 4 Not Available
012	NUT, U, (10MM) Part #: 90304-GE8-003 Required per assembly: 1 Note: Sold in multiples of 5 only $4.58 - + Add to cart
013	NUT, FLG, (M8X1.25) Part #: 90309-428-731 Required per assembly: 1 $4.68 $4.25 - + Add to cart
015	OIL SEAL (28X42X7) Part #: 91257-230-003 Required per assembly: 1 $13.10 $10.61 - + Add to cart
016	WASHER, PLAIN, (10MM) Part #: 94101-10000 Required per assembly: 2 $2.18 $2.02 - + Add to cart
017	BEARING (6302UU) Part #: 96150-63020-10 Required per assembly: 1 $17.80 $16.20 - + Add to cart
