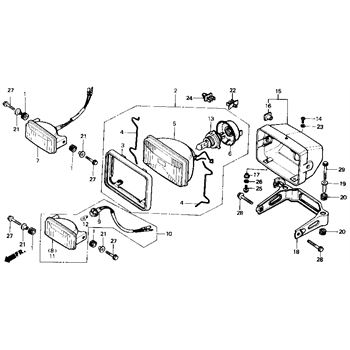

Headlight 86-87 replacement parts for 1987 Honda FOURTRAX 4X4 (TRX350)

OEM Parts Honda 1987 Honda FOURTRAX 4X4 (TRX350) Headlight 86-87

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	RUBBER, CUSHION Part #: 17622-GB7-900 Required per assembly: 4 $5.74 $5.15 - + Add to cart
002	HEADLIGHT ASSEMBLY Part #: 33100-HA7-672 Required per assembly: 1 Not Available
003	RIM, HEADLIGHT Part #: 33101-HA8-680 Required per assembly: 1 Not Available
004	SPRING, UNIT, HOLDER Part #: 33109-440-931 Required per assembly: 2 Not Available
006	COVER, RUBBER Part #: 33141-HA7-670 Required per assembly: 1 Not Available
011	BASE, L. Part #: 33255-HA7-670 Required per assembly: 1 Not Available
012	BULB (12V/5W) Part #: 34351-657-921 Required per assembly: 2 $5.09 $4.63 - + Add to cart
013	BULB (12V 60/55W) Part #: 34901-MC7-602 Required per assembly: 1 $43.09 $35.93 - + Add to cart
014	SCREW Part #: 52426-KM4-003 Required per assembly: 1 $3.43 $3.12 - + Add to cart
015	CASE, HEADLIGHT Part #: 61301-HA7-672 Required per assembly: 1 Not Available
016	COLLAR A Part #: 61302-HA7-670 Required per assembly: 2 Not Available
017	COLLAR Part #: 61304-292-000 Required per assembly: 2 $4.80 $4.36 - + Add to cart
018	BRAKET, HEADLIGHT, CASE Part #: 61310-HA7-750 Required per assembly: 1 Not Available
020	RUBBER, RR., FENDER Part #: 80152-958-680 Required per assembly: 2 $6.18 $5.50 - + Add to cart
021	COLLAR Part #: 84706-KN9-830 Required per assembly: 2 Not Available
022	CLAMP, TUBE Part #: 90114-HA7-670 Required per assembly: 1 Not Available
023	COLLAR (5MM) Part #: 90104-GE2-010 Required per assembly: 1 Not Available
024	CLAMP, TUBE Part #: 90651-HA7-670 Required per assembly: 1 Not Available
025	BOLT (5X16) Part #: 92301-05016-0A Required per assembly: 2 $2.24 $2.07 - + Add to cart
026	WASHER, SPRING, (5MM) Part #: 94111-05000 Required per assembly: 3 $2.17 $2.00 - + Add to cart
027	BOLT, FLANGE, (6X20) Part #: 95701-06020-08 Required per assembly: 1 $1.47 $1.35 - + Add to cart
028	BOLT, FLANGE, (8X35) Part #: 95701-08035-00 Required per assembly: 4 $3.26 $3.03 - + Add to cart
028	BOLT, FLANGE, (8X35) Part #: 95800-08035-02 Required per assembly: 2 Not Available
029	BOLT, FLANGE, (8X65) Part #: 95801-08065-00 Required per assembly: 2 $3.86 $3.51 - + Add to cart
029	BOLT, FLANGE, (8X65) Part #: 95701-08065-00 Required per assembly: 2 $2.72 $2.52 - + Add to cart
