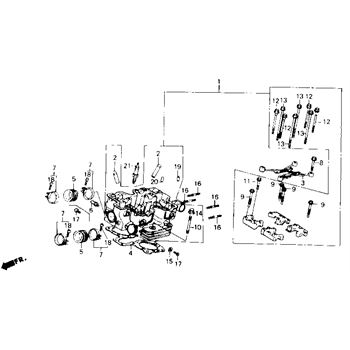

Front Cylinder Head replacement parts for 1987 Honda MAGNA (VF700C)

OEM Parts Honda 1987 Honda MAGNA (VF700C) Front Cylinder Head

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CYLINDER, HEAD, ASSEMBLY, FR. Part #: 12010-MN0-000 Required per assembly: 1 Not Available
001	CYLINDER, HEAD, FR. Part #: 12010-MN0-680 Required per assembly: 1 Not Available
002	GUIDE, VALVE, (OS) Part #: 12204-MS2-305 Required per assembly: 16 Not Available
002	GUIDE, VALVE, (OS) Part #: 12204-MS2-305 Required per assembly: 8 Not Available
005	GASKET, CYL, HD Part #: 12251-MN0-505 Required per assembly: 1 Not Available
006	INSULATOR, CARB Part #: 16211-MB0-000 Required per assembly: 2 $38.64 $32.22 - + Add to cart
007	JOINT, BOOST Part #: 16214-MB0-000 Required per assembly: 1 $5.72 $5.14 - + Add to cart
008	BAND, INSULATOR Part #: 16223-KS5-000 Required per assembly: 1 $16.46 $13.72 - + Add to cart
009	BOLT, FLANGE, (6X52) Part #: 90009-HA0-000 Required per assembly: 4 $5.63 $5.12 - + Add to cart
010	BOLT, FLANGE, (6X62) Part #: 90003-MB6-680 Required per assembly: 4 Not Available
011	BOLT, STUD, (9X99) Part #: 90005-MB6-680 Required per assembly: 4 Not Available
012	BOLT, FLANGE, (6X40) Part #: 90008-GE0-710 Required per assembly: 2 Not Available
014	BOLT, UBS, (9X175) Part #: 90012-MB6-003 Required per assembly: 4 Not Available
016	BOLT, OIL, CONTROL Part #: 90045-MB2-000 Required per assembly: 1 Not Available
017	NUT, CAP, (9MM) Part #: 90232-MB6-680 Required per assembly: 4 $5.26 $4.78 - + Add to cart
018	WASHER (10MM) Part #: 90443-MB0-000 Required per assembly: 2 $4.10 $3.73 - + Add to cart
019	WASHER (5MM) Part #: 90452-323-000 Required per assembly: 1 $2.67 $2.48 - + Add to cart
020	WASHER (6.5MM) Part #: 90463-ML7-000 Required per assembly: 1 $4.10 $3.73 - + Add to cart
021	BOLT, 2, STUD, (6X32) Part #: 92900-06032-0E Required per assembly: 1 $3.66 $3.33 - + Add to cart
022	SCREW, PAN, (5X8) Part #: 93500-05008-0A Required per assembly: 6 $1.91 $1.77 - + Add to cart
023	SCREW, PAN, (5X28) Part #: 93500-05028-0G Required per assembly: 3 $1.75 $1.61 - + Add to cart
024	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 $3.21 $2.99 - + Add to cart
025	PIN, DOWEL, (12X20) Part #: 94301-12200 Required per assembly: 1 $3.50 $3.18 - + Add to cart
028	BOLT, FLANGE, (6X12) Part #: 95701-06012-00 Required per assembly: 2 $2.63 $2.44 - + Add to cart
029	S/PLG (X24EPR-U9) Part #: 98069-58926 Required per assembly: 1 Note: Denso $3.25 - + Add to cart
029	S/PLG (DPR9EA-9) Part #: 98069-59916 $3.32 - + Add to cart
029	S/PLG (X22EPR-U9) Part #: 98069-57926 $3.25 - + Add to cart
029	S/PLG (X27EPR-U9) Part #: 98069-59926 $3.25 - + Add to cart
029	S/PLG (DPR7EA-9) Part #: 98069-57916 $3.32 - + Add to cart
029	S/PLG (DPR8EA-9) Part #: 98069-58916 Required per assembly: 1 $3.62 - + Add to cart
