Front Brake Master Cylinder replacement parts for 1987 Honda TRX250X

OEM Parts Honda 1987 Honda TRX250X Front Brake Master Cylinder

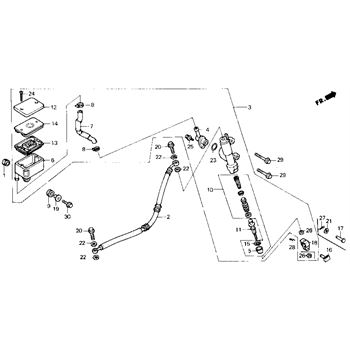

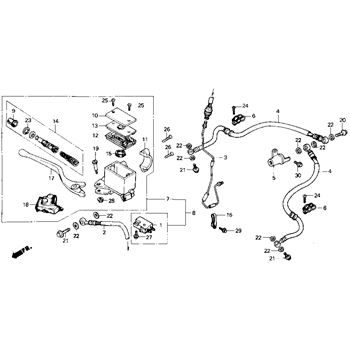

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

003	PIPE, FR., BRAKE Part #: 45127-HC0-000 Required per assembly: 1 Not Available
004	HOSE, FR., BRAKE Part #: 45128-HC0-671 Required per assembly: 2 Not Available
005	JOINT Part #: 45129-HC0-016 Required per assembly: 1 Not Available
006	CLAMP, FR. Part #: 45464-HB9-000 Required per assembly: 2 Not Available
009	BOOT Part #: 45504-410-003 Required per assembly: 1 $14.10 $11.76 - + Add to cart
010	CAP, MASTER, CYLINDER Part #: 45513-HA2-006 Required per assembly: 1 $31.93 $26.62 - + Add to cart
011	HOLDER Part #: 45517-961-000 Required per assembly: 1 Not Available
012	DIAPHRAGM Part #: 45520-MG7-006 Required per assembly: 1 $12.29 $10.24 - + Add to cart
013	PLATE, DIAPHRAGM Part #: 45521-HA2-006 Required per assembly: 1 $12.59 $10.48 - + Add to cart
014	MASTER CYLINDER SET Part #: 45530-KJ1-702 Required per assembly: 1 $59.94 $49.97 - + Add to cart
015	SEPARATOR Part #: 46666-HB9-006 Required per assembly: 1 $10.87 $9.30 - + Add to cart
016	CLAMP, B, FR. Part #: 51203-HA7-670 Required per assembly: 1 Not Available
017	LEVER, R., HANDLEBAR Part #: 53175-HC0-305 Required per assembly: 1 Not Available
019	BOLT Part #: 90114-166-006 Required per assembly: 1 $7.50 $6.82 - + Add to cart
020	BOLT, OIL, (10X34) Part #: 90145-MB0-010 Required per assembly: 1 Not Available
021	BOLT, OIL, (10X22) Part #: 90145-KM3-751 Required per assembly: 1 $12.77 $10.64 - + Add to cart
022	WASHER, OIL, BOLT Part #: 90545-300-000 Required per assembly: 4 $4.80 $4.09 - + Add to cart
023	CIRCLIP Part #: 90651-MA5-671 Required per assembly: 1 $3.19 $2.51 - + Add to cart
024	SCREW, PAN, (5X16) Part #: 93500-05016-0A Required per assembly: 2 $1.95 $1.80 - + Add to cart
025	SCREW, FLAT, (4X12) Part #: 93600-04012-0G Required per assembly: 2 $1.87 $1.70 - + Add to cart
026	SCREW, OVAL, (6X25) Part #: 93700-06025-0G Required per assembly: 2 Not Available
028	NUT, FLANGE, (6MM) Part #: 94050-06000 Required per assembly: 2 $1.73 $1.59 - + Add to cart
029	BOLT, FLANGE, (6X10) Part #: 96300-06010-00 Required per assembly: 2 $1.98 $1.83 - + Add to cart
030	BOLT, FLANGE, (6X16) Part #: 96300-06016-00 Required per assembly: 4 $1.98 $1.83 - + Add to cart
