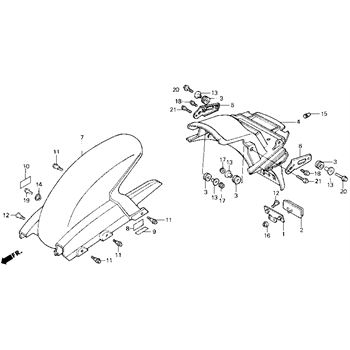

Rear Fender replacement parts for 1988 Honda CBR1000F

OEM Parts Honda 1988 Honda CBR1000F Rear Fender

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	STAY, RR., REFLECTOR Part #: 33740-MM5-671 Required per assembly: 1 Not Available
002	REFLECTOR, REFLEX Part #: 33741-MC7-612 Required per assembly: 1 ~~$17.49~~ $17.45 - + Add to cart
003	RUBBER Part #: 61304-415-000 Required per assembly: 2 $5.10 - + Add to cart
005	STAY, R., RR., FENDER Part #: 80101-MM5-000 Required per assembly: 1 $13.43 - + Add to cart
006	STAY, L., RR., FENDER Part #: 80102-MM5-000 Required per assembly: 1 Not Available
007	FENDER, RR. Part #: 80201-MM4-000 Required per assembly: 1 Not Available
008	MARK, TIRE, CAUTION Part #: 87505-MM5-670 Required per assembly: 1 Not Available
009	MARK Part #: 87507-MM5-600 Required per assembly: 1 Not Available
011	BOLT, FLANGE, (6MM) Part #: 90111-187-000 Required per assembly: 2 $11.55 - + Add to cart
012	SCREW (6X11) Part #: 90381-MB2-000 Required per assembly: 4 $5.30 - + Add to cart
013	COLLAR (6.2X12) Part #: 90501-425-000 Required per assembly: 2 $9.57 - + Add to cart
014	COLLAR Part #: 90522-170-700 Required per assembly: 1 ~~$2.92~~ $2.67 - + Add to cart
015	PLUG, CONE, TYPE Part #: 90899-422-610 Required per assembly: 4 ~~$2.96~~ $2.73 - + Add to cart
016	NUT, FLANGE, (5MM) Part #: 94050-05080 Required per assembly: 1 $0.58 - + Add to cart
017	NUT, FLANGE, (6MM) Part #: 94050-06000 Required per assembly: 2 ~~$1.73~~ $0.91 - + Add to cart
018	BOLT, FLANGE, (6X12) Part #: 95701-06012-00 Required per assembly: 2 $3.01 - + Add to cart
019	BOLT, FLANGE, (6X14) Part #: 95701-06014-07 Required per assembly: 3 ~~$2.50~~ $2.32 - + Add to cart
020	BOLT, FLANGE, (6X20) Part #: 95701-06020-00 Required per assembly: 1 $2.65 - + Add to cart
021	BOLT, FLANGE, (6X25) Part #: 95701-06025-00 Required per assembly: 4 ~~$2.79~~ $2.67 - + Add to cart
