Muffler replacement parts for 1988 Suzuki RM250

OEM Parts Suzuki 1988 Suzuki RM250 Muffler

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

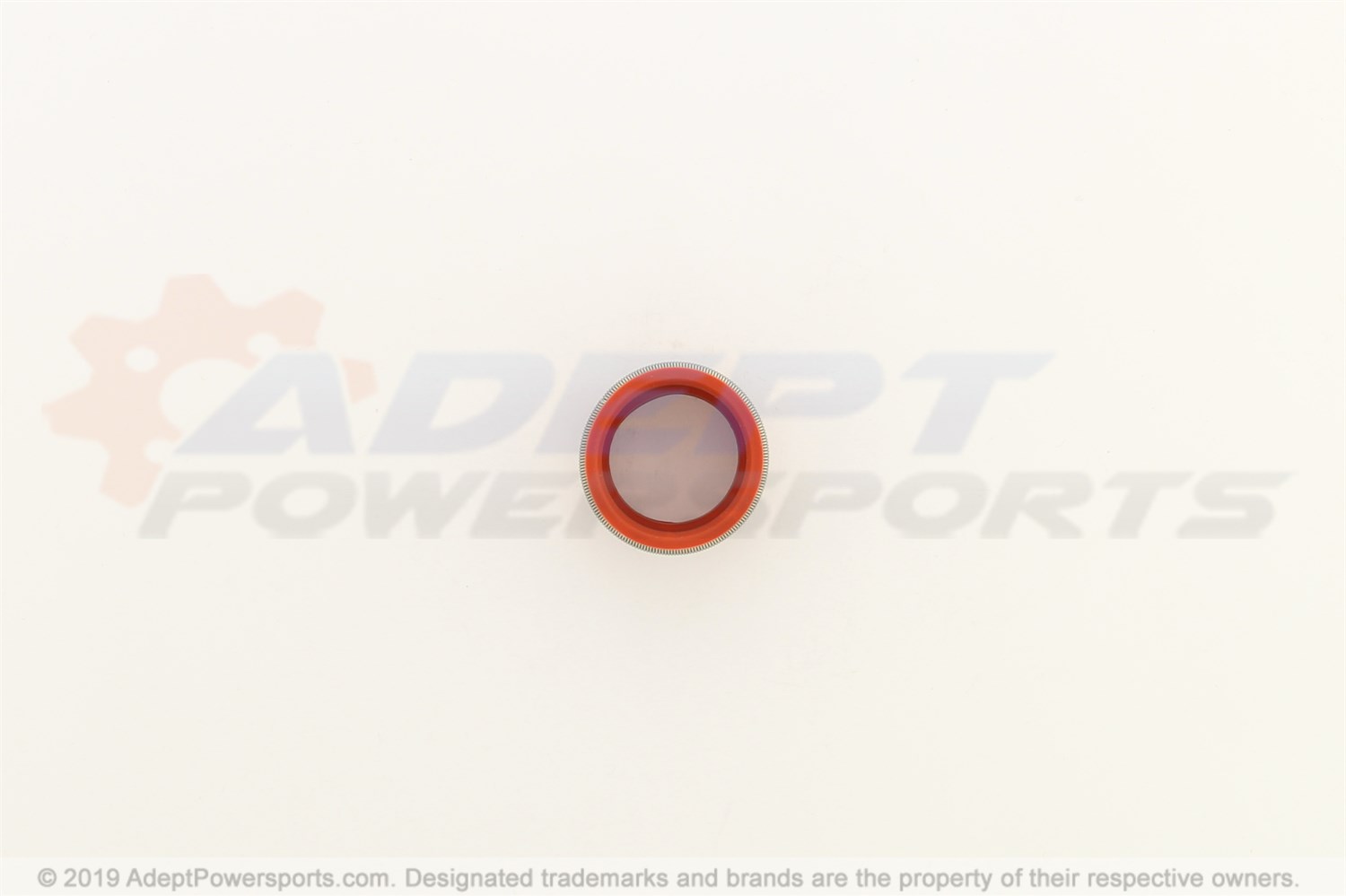

1	GASKET, EXHAUST, FRANGE Part #: 14181-16300-H17 Required per assembly: 1 $6.28 $5.65 - + Add to cart
2	FLANGE, EXHAUST, PIPE Part #: 14170-26C01 Required per assembly: 1 Not Available
3	SCREW Part #: 02112-06167 Required per assembly: 2 $1.78 $1.60 - + Add to cart
4	BOLT Part #: 09128-06057 Required per assembly: 1 Note: BOLT (6X20); $2.05 $1.85 - + Add to cart
5	LOCK WASHER Part #: 08321-01067 Required per assembly: 3 Note: Sold in multiples of 10 only $2.29 $2.06 - + Add to cart
6	WASHER (6X10X2) Part #: 09160-06106 Required per assembly: 1 $2.87 $2.58 - + Add to cart
7	MUFFLER, 1ST Part #: 14310-26C12 Required per assembly: 1 Not Available
8	MUFFLER, 2ND Part #: 14330-26C11 Required per assembly: 1 Not Available
9	SPRING Part #: 09443-11024-XC0 Required per assembly: 2 Note: MODEL K/L/M $10.53 $10.32 - + Add to cart
11	GASKET Part #: 14771-35301 Required per assembly: 1 Not Available
12	PLATE, MOUNTING Part #: 14761-01B00 Required per assembly: 1 Note: MODEL K Not Available
13	CUSHION, REAR Part #: 14762-01B02 Required per assembly: 1 Note: CUSHION, UPPER; $4.62 $4.16 - + Add to cart
14	SPACER Part #: 09180-06268 Required per assembly: 1 $2.53 $2.28 - + Add to cart
15	BOLT Part #: 01547-06167 Required per assembly: 1 Note: BOLT, 6X16; $2.06 $1.85 - + Add to cart
16	WASHER Part #: 09160-06077 Required per assembly: 2 Note: WASHER, LICENSE LAMP; 6.5X20X1.2 $2.30 $2.07 - + Add to cart
17	BOLT Part #: 01547-06257 Required per assembly: 1 $2.53 $2.28 - + Add to cart
18	PLUG, DRAIN Part #: 01500-0816B Required per assembly: 1 Note: BOLT; $3.11 $2.80 - + Add to cart
19	LOCK WASHER Part #: 08321-01087 Required per assembly: 1 Note: WASHER; Sold in multiples of 10 only $2.29 $2.06 - + Add to cart
20	SPACER (8.5X12X11) Part #: 09180-08189 Required per assembly: 1 Note: SPACER; $3.13 $2.82 - + Add to cart
22	BOLT Part #: 01500-0825A Required per assembly: 1 $2.77 $2.49 - + Add to cart
23	WASHER Part #: 09160-08146 Required per assembly: 2 $3.11 $2.80 - + Add to cart
25	CUSHION, TAIL, PIPE Part #: 14652-00B01 Required per assembly: 1 Not Available
