Remote Control Attachment replacement parts for 1989 Yamaha 30F

OEM Parts Yamaha 1989 Yamaha 30F Remote Control Attachment

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ATTACHMENT ASSEMBLY Part #: 6J8-48501-02-EK Required per assembly: 1 Not Available
2	WASHER, SPRING Part #: 92990-08100-00 Required per assembly: 1 $5.59 $4.45 - + Add to cart
3	THROTTLE, LEVER, CON Part #: 6J8-48534-00-00 Required per assembly: 1 Note: (E) $20.98 $19.64 - + Add to cart
4	LEVER, SHIFTCONTROL Part #: 6J8-48544-02-00 Required per assembly: 1 $49.99 $48.35 - + Add to cart
5	WASHER Part #: 6J8-44177-00-00 Required per assembly: 1 Note: (E) $6.49 $6.11 - + Add to cart
6	PIN, SPRING Part #: 90254-03M03-00 Required per assembly: 1 Note: (E) $5.49 $5.22 - + Add to cart
7	LEVER, SHIFT, CONTRL Part #: 6J8-44173-02-00 Required per assembly: 1 Note: (E) $12.99 $12.84 - + Add to cart
8	JOINT Part #: 6J8-42169-01-00 Required per assembly: 1 Note: (E) $13.99 $13.59 - + Add to cart
9	BRACKET, REMOTE, CON Part #: 6J8-48531-00-00 Required per assembly: 1 Note: (E) $24.98 $23.42 - + Add to cart
10	BRACKET, REMOTE, CON Part #: 6J8-48532-00-00 Required per assembly: 1 Note: UR EH (E) $29.98 $28.70 - + Add to cart
11	CLAMP, CABLE Part #: 682-48538-50-00 Required per assembly: 1 $15.49 $15.10 - + Add to cart
12	PIN, SPRING Part #: 91690-30012-00 Required per assembly: 1 $5.99 $5.59 - + Add to cart
13	BOLT Part #: 90109-06M29-00 Required per assembly: 1 Note: EH (E) $10.99 $10.57 - + Add to cart
14	NUT, SPECIAL, SHAPE Part #: 90179-06M24-00 Required per assembly: 2 $4.75 $4.17 - + Add to cart
15	END, CABLE Part #: 6G8-26363-00-00 Required per assembly: 2 $9.99 $9.81 - + Add to cart
16	END, CABLE, 2 Part #: 6G8-26364-00-00 Required per assembly: 2 $9.49 $9.06 - + Add to cart
17	COVER, BOTTOM Part #: 6J8-42723-50-00 Required per assembly: 1 Note: UR 30ER MODEL Not Available
18	SCREW Part #: 6J8-42846-00-00 Required per assembly: 1 Note: ER/EH (E) $15.99 $15.10 - + Add to cart

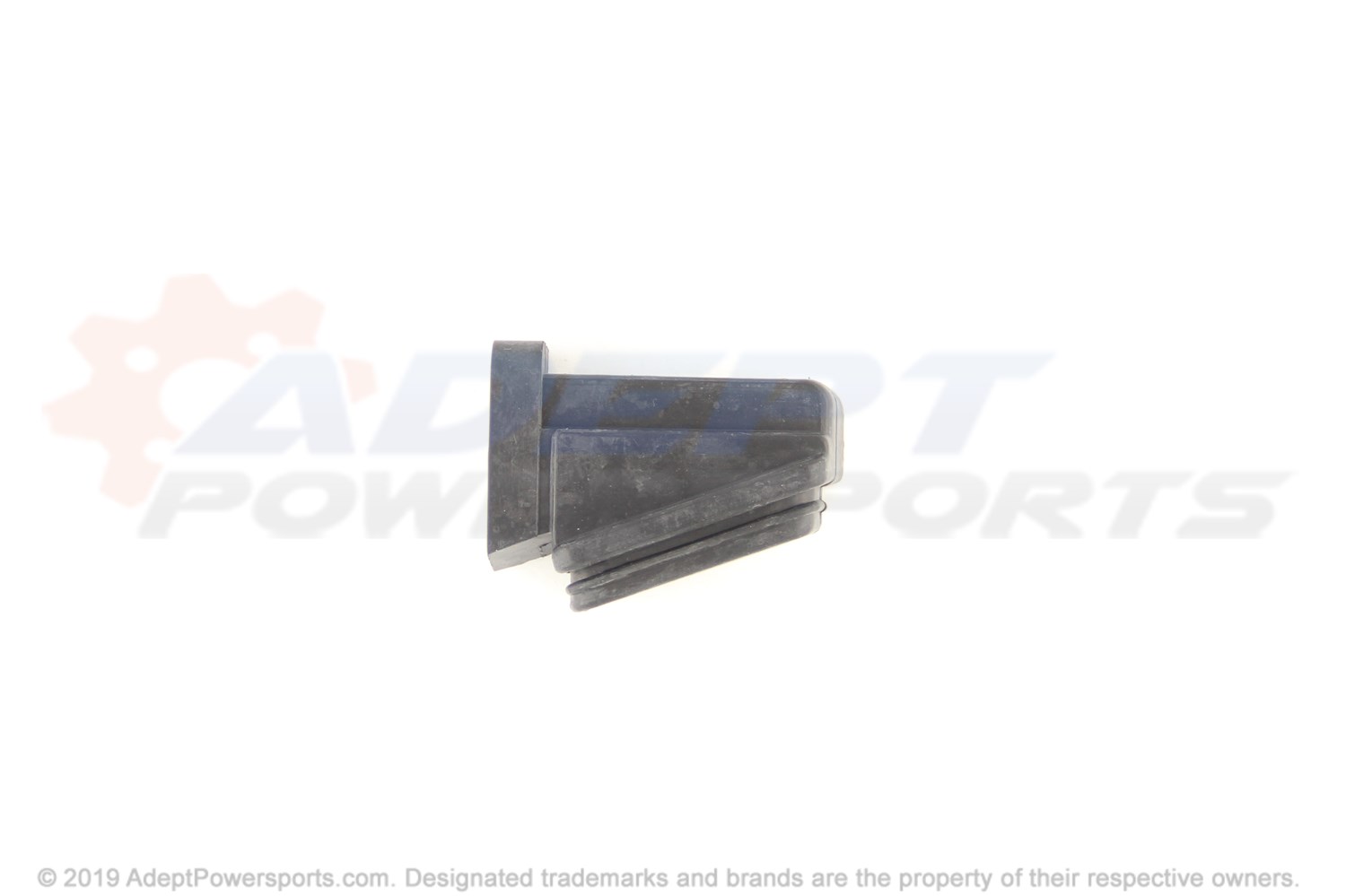

19	GROMMET 1 Part #: 6J8-42724-10-00 Required per assembly: 1 $15.49 $15.10 - + Add to cart
20	HOOK, STEERING Part #: 6J8-48511-52-00 Required per assembly: 1 Note: STEERING GUIDE TYPE $80.98 $77.10 - + Add to cart
22	BOLT, HEXAGON, DEEP, RECESS Part #: 97D95-06016-00 Required per assembly: 2 $2.75 $1.87 - + Add to cart
23	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 2 Note: Sold in multiples of 5 only $2.95 - + Add to cart
24	HOOK STEERING Part #: 6G8-48511-10-00 Required per assembly: 1 Note: BALL POST TYPE $17.48 $16.62 - + Add to cart
25	BOLT, HEXAGON, DEEP, RECESS Part #: 97D95-06016-00 Required per assembly: 2 $2.75 $1.87 - + Add to cart
26	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 2 Note: Sold in multiples of 5 only $2.95 - + Add to cart
