Front Fork 90 replacement parts for 1990 Honda CR500R

OEM Parts Honda 1990 Honda CR500R Front Fork 90

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CLAMP, A, FR. Part #: 45461-KA3-710 Required per assembly: 1 $12.05 $10.05 - + Add to cart
002	CLAMP, B, FR. Part #: 45462-KA3-710 Required per assembly: 1 $5.94 $5.31 - + Add to cart
003	FORK, ASSEMBLY, R., FR. Part #: 51400-ML3-911 Required per assembly: 1 Not Available
005	COLLAR, SPRING Part #: 51404-KZ3-701 Required per assembly: 2 Not Available
007	STOPPER, SPRING, SEAT Part #: 51406-ML3-911 Required per assembly: 2 Not Available
009	CASE, OIL, SEAL Part #: 51411-KZ3-701 Required per assembly: 2 Not Available
010	RING, BACK-UP Part #: 51412-KZ3-003 Required per assembly: 2 $10.93 $9.35 - + Add to cart

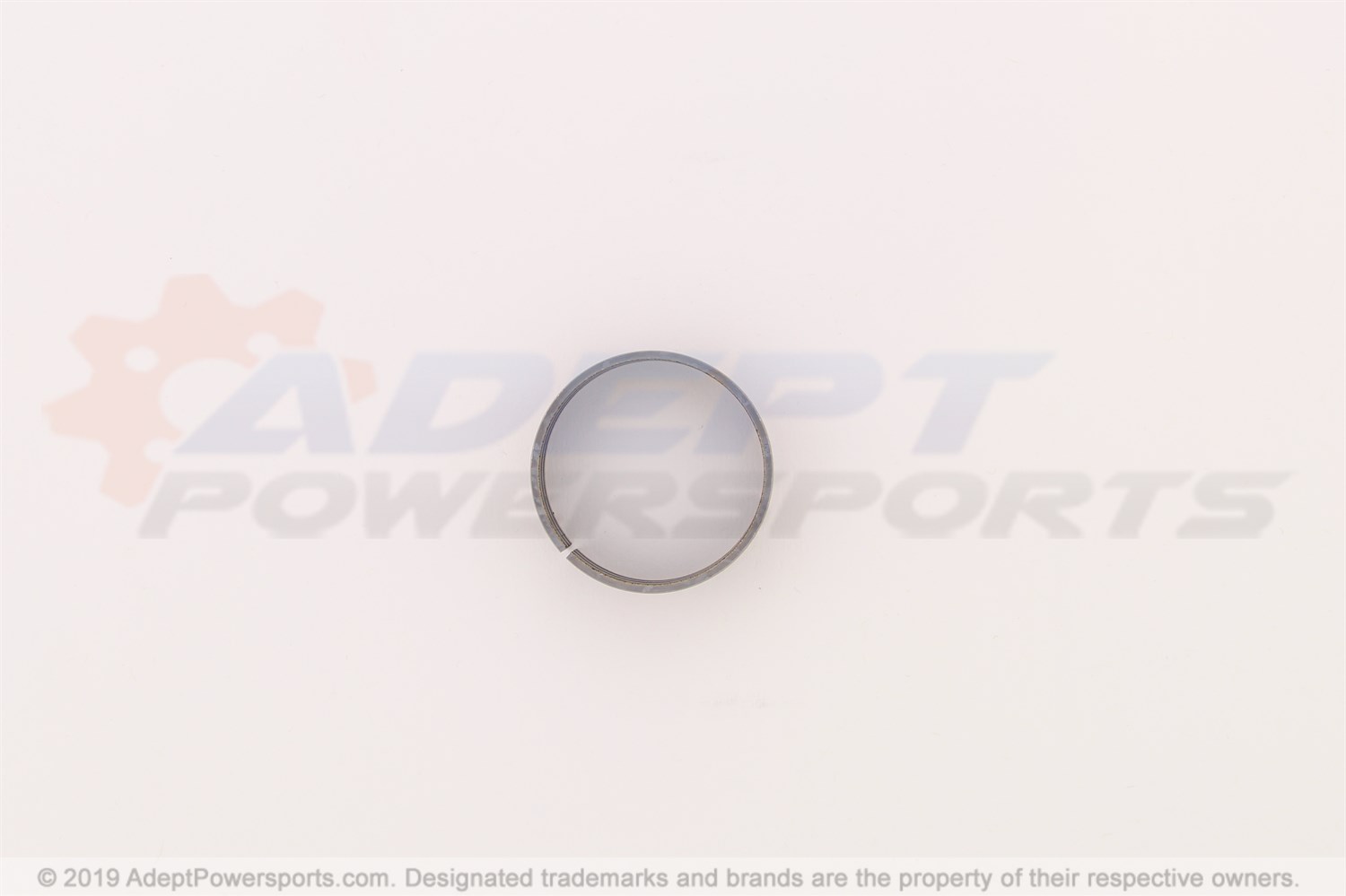

011	BUSH, GUIDE Part #: 51414-KZ3-701 Required per assembly: 2 $25.14 $19.64 - + Add to cart
012	BUSH, SLIDER Part #: 51415-MCH-003 Required per assembly: 2 $13.77 $11.47 - + Add to cart
015	CYLINDER Part #: 51431-KZ3-701 Required per assembly: 2 Not Available
016	RING, PISTON Part #: 51435-KZ3-701 Required per assembly: 1 Not Available
017	BOLT, CENTER Part #: 51441-ML3-911 Required per assembly: 2 Not Available
018	RING Part #: 51447-KZ3-003 Required per assembly: 2 $6.15 $5.47 - + Add to cart
021	VALVE, AIR Part #: 51456-469-013 Required per assembly: 2 $39.05 $32.57 - + Add to cart
026	SEAL, SET, FR., FORK Part #: 51490-KZ3-810 Required per assembly: 2 Not Available
027	FORK, ASSEMBLY, L., FR. Part #: 51500-ML3-911 Required per assembly: 1 Not Available
028	CASE, L., SLIDE Part #: 51520-KZ3-701 Required per assembly: 1 Not Available
029	PROTR, L., FR., FORK Part #: 51610-ML3-910 Required per assembly: 1 Not Available
030	PROTR, R., FR., FORK Part #: 51620-KZ3-010 Required per assembly: 1 Not Available
031	HOLDER, AXLE Part #: 51634-MV1-003 Required per assembly: 2 Not Available
032	CAP, AIR, VALVE Part #: 52425-381-771 Required per assembly: 1 $5.96 $5.42 - + Add to cart
033	BOLT, DISK, (6X13) Part #: 90106-KZ3-000 Required per assembly: 6 $5.15 - + Add to cart
034	BOLT, FLANGE, (6MM) Part #: 90113-KZ3-000 Required per assembly: 4 $3.86 $3.51 - + Add to cart
035	NUT, U, (6MM) Part #: 90301-473-003 Required per assembly: 1 $5.46 $4.96 - + Add to cart
036	WASHER, SPECIAL Part #: 90544-KZ3-003 Required per assembly: 2 $4.02 - + Add to cart
037	DUST SEAL Part #: 91254-KZ3-003 Required per assembly: 2 $19.60 $16.34 - + Add to cart
038	O-RING (15.5X1.5) Part #: 91256-GC5-003 Required per assembly: 2 $2.52 $2.33 - + Add to cart
039	O-RING (5.8X1.9) Part #: 91305-323-000 Required per assembly: 2 $4.08 $3.71 - + Add to cart
040	O-RING (54.5X2.4) Part #: 91360-SM4-003 Required per assembly: 2 Not Available
041	O-RING (44.7X2.4) Part #: 91356-KZ3-003 Required per assembly: 2 $5.29 $4.81 - + Add to cart
042	BOLT, STUD, (6X25) Part #: 92900-06025-0E Required per assembly: 4 $2.07 $1.91 - + Add to cart
