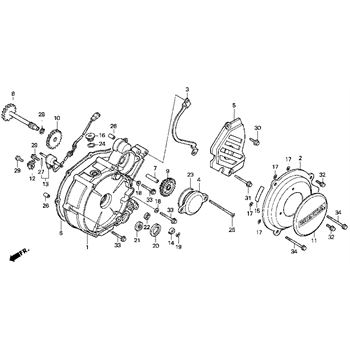

Left Crankcase Cover replacement parts for 1990 Honda FOURTRAX 200 (TRX200)

OEM Parts Honda 1990 Honda FOURTRAX 200 (TRX200) Left Crankcase Cover

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COVER, L., CRANKCASE Part #: 11341-HB3-840 Required per assembly: 1 Not Available
002	COVER, L. Part #: 11351-HF1-671 Required per assembly: 1 Not Available
003	GUIDE, DRIVE, CHAIN Part #: 11352-HB3-000 Required per assembly: 1 Not Available
006	GASKET, L. Part #: 11396-HF1-910 Required per assembly: 1 Not Available
007	SHAFT, STARTER, IDLE Part #: 28115-HB3-000 Required per assembly: 1 Not Available
008	SHAFT, STARTER, IDLE Part #: 28116-HB3-000 Required per assembly: 1 Not Available
009	GEAR A/B (12T/48T) Part #: 28117-HF1-670 Required per assembly: 1 Not Available
010	GEAR C (21T) Part #: 28118-HB3-000 Required per assembly: 1 Not Available
011	COVER, RECOIL, STARTER Part #: 28406-HB2-300 Required per assembly: 1 Not Available
012	CLAMP Part #: 32112-HB3-000 Required per assembly: 1 $5.07 - + Add to cart
013	SWITCH, ASSEMBLY, CHANGE Part #: 35759-HF1-000 Required per assembly: 1 Not Available
014	INDICATOR, NEUTRAL Part #: 35762-HB3-000 Required per assembly: 1 Not Available
015	LABEL, SHIFT, PATTERN Part #: 87104-HF1-671 Required per assembly: 1 Not Available
016	CAP (14MM) Part #: 90084-KY2-000 Required per assembly: 1 $18.51 $15.43 - + Add to cart
017	NUT, PUSH Part #: 90202-HF1-671 Required per assembly: 4 $5.79 $5.20 - + Add to cart
018	WASHER (6MM) Part #: 90441-706-000 Required per assembly: 2 $2.19 $2.03 - + Add to cart
019	CIRCLIP (5MM) Part #: 90605-230-000 Required per assembly: 1 $4.22 $3.84 - + Add to cart
020	OIL SEAL (22X32X7) Part #: 91202-HB3-003 Required per assembly: 1 $11.55 $9.85 - + Add to cart
021	OIL SEAL (12X24X5) Part #: 91203-436-004 Required per assembly: 1 $7.14 $6.49 - + Add to cart
022	OIL SEAL (9X18X5) Part #: 91204-HB3-004 Required per assembly: 1 $5.29 $4.81 - + Add to cart
023	O-RING (45X2.5) Part #: 91301-679-003 Required per assembly: 1 $5.64 $5.13 - + Add to cart
024	O-RING (13.8X2.5) Part #: 91303-377-000 Required per assembly: 1 $4.75 $4.32 - + Add to cart
025	SCREW, OVAL, (6X70) Part #: 93700-06070-0A Required per assembly: 2 Not Available
026	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 $3.21 $2.99 - + Add to cart
027	PIN, SPRING, (2.5X20) Part #: 94305-25142 Required per assembly: 1 $2.63 $2.44 - + Add to cart
028	CIRCLIP (12MM) Part #: 94510-12000 Required per assembly: 1 $2.86 $2.65 - + Add to cart
029	BOLT, FLANGE, (6X14) Part #: 95701-06014-00 Required per assembly: 1 $2.04 $1.88 - + Add to cart
030	BOLT, FLANGE, (6X28) Part #: 95701-06028-00 Required per assembly: 2 $2.81 $2.61 - + Add to cart
031	BOLT, FLANGE, (6X40) Part #: 95701-06040-00 Required per assembly: 1 $2.87 $2.67 - + Add to cart
032	BOLT, FLANGE, (6X14) Part #: 96001-06014-00 Required per assembly: 6 $2.79 $2.60 - + Add to cart
033	BOLT, FLANGE, (6X35) Part #: 96001-06035-00 Required per assembly: 4 $2.41 $2.23 - + Add to cart
034	BOLT, FLANGE, (6X65) Part #: 96001-06065-00 Required per assembly: 2 $3.55 $3.23 - + Add to cart
