Oil Pump replacement parts for 1990 Honda HURRICANE 600 (CBR600F)

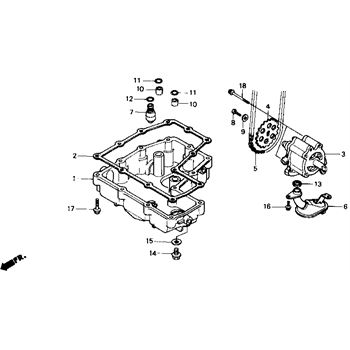

OEM Parts Honda 1990 Honda HURRICANE 600 (CBR600F) Oil Pump

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	PAN, OIL Part #: 11210-MN4-010 Required per assembly: 1 Not Available
002	GASKET, OIL, PAN Part #: 11398-MN4-920 Required per assembly: 1 Not Available
003	PUMP, ASSEMBLY, OIL Part #: 15100-MN4-000 Required per assembly: 1 Not Available
004	SPROCKET (23T) Part #: 15134-KT8-000 Required per assembly: 1 Not Available
005	CHAIN (25H-62) Part #: 15141-KT8-003 Required per assembly: 1 Not Available
006	STRAINER, OIL Part #: 15153-KT8-000 Required per assembly: 1 Not Available
007	VALVE, ASSEMBLY, RELIEF Part #: 15220-KT8-000 Required per assembly: 1 Not Available
008	BOLT, HEX., (6X16) Part #: 90021-KE8-010 Required per assembly: 1 $3.25 $3.02 - + Add to cart
009	WASHER (6X2.3) Part #: 90488-MB0-000 Required per assembly: 1 $5.26 $5.25 - + Add to cart
010	PIN, GUIDE, (13X8.5) Part #: 91105-MA6-000 Required per assembly: 2 Not Available
011	O-RING (13X3.0) Part #: 91302-MB6-830 Required per assembly: 2 $2.94 $2.73 - + Add to cart
012	O-RING (14.8X2.2) Part #: 91313-MG7-004 Required per assembly: 1 $5.04 $4.58 - + Add to cart
013	O-RING (17X3) Part #: 91315-KT8-003 Required per assembly: 1 Not Available
014	BOLT, DRAIN, (12MM) Part #: 92800-12000 Required per assembly: 2 $4.86 $4.42 - + Add to cart
015	WASHER, DRAIN, (12MM) Part #: 94109-12000 Required per assembly: 2 $2.17 $1.97 - + Add to cart
016	BOLT, FLANGE, (6X16) Part #: 95701-06016-00 Required per assembly: 2 Note: 95701-06016-08* $2.63 $2.44 - + Add to cart
017	BOLT, FLANGE, (6X28) Part #: 95701-06028-00 Required per assembly: 2 $2.81 $2.61 - + Add to cart
018	BOLT, FLANGE, (6X85) Part #: 95701-06085-00 Required per assembly: 1 $2.72 $2.52 - + Add to cart
