Front Brake Master Cylinder replacement parts for 1990 Honda NX250

OEM Parts Honda 1990 Honda NX250 Front Brake Master Cylinder

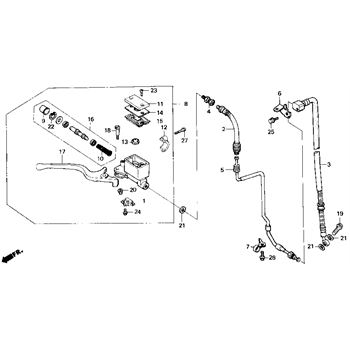

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SWITCH, FR., STOP Part #: 35340-MM5-600 Required per assembly: 1 $26.04 $20.76 - + Add to cart
002	HOSE, BRAKE, (UPPER) Part #: 45125-KW3-900 Required per assembly: 1 Not Available
003	HOSE, BRAKE, (LOWER) Part #: 45126-KW3-900 Required per assembly: 1 Not Available
004	JOINT, BRAKE, HOSE Part #: 45127-KZ4-003 Required per assembly: 1 Not Available
005	PIPE, FR., BRAKE Part #: 45135-KW3-900 Required per assembly: 1 Not Available
006	STAY, FR., BRAKE, HOSE Part #: 45463-KW3-000 Required per assembly: 1 Not Available
007	CLAMP, FR. Part #: 45464-KW3-000 Required per assembly: 1 Not Available
008	M/CYL, ASSEMBLY, FR. Part #: 45500-KW3-671 Required per assembly: 1 Not Available
009	BOOT Part #: 45504-410-003 Required per assembly: 1 $14.10 $11.76 - + Add to cart
010	SPRING Part #: 45506-KA3-731 Required per assembly: 1 $5.78 $5.11 - + Add to cart
011	CAP, MASTER, CYLINDER, (COO) Part #: 45513-HR0-305 Required per assembly: 1 $5.22 $5.16 - + Add to cart
012	HOLDER Part #: 45517-166-006 Required per assembly: 1 $15.70 $13.09 - + Add to cart
013	SEPARATOR Part #: 45518-MG3-016 Required per assembly: 1 $13.12 $10.95 - + Add to cart
014	DIAPHRAGM Part #: 45520-MG7-006 Required per assembly: 1 $12.29 $10.24 - + Add to cart
014	PLATE, DIAPHRAGM Part #: 45521-HA2-006 Required per assembly: 1 $12.59 $10.48 - + Add to cart
015	DIAPHRAGM Part #: 45520-MG7-006 Required per assembly: 1 $12.29 $10.24 - + Add to cart
015	PLATE, DIAPHRAGM Part #: 45521-HA2-006 Required per assembly: 1 $12.59 $10.48 - + Add to cart
016	MASTER CYLINDER SET Part #: 45530-MN9-305 Required per assembly: 1 $58.81 $49.05 - + Add to cart
017	LEVER, R., HANDLE Part #: 53175-KM9-006 Required per assembly: 1 $25.74 $21.46 - + Add to cart
018	BOLT Part #: 90114-MA5-671 Required per assembly: 1 $10.93 $9.35 - + Add to cart
019	BOLT, OIL, (10X22) Part #: 90145-MS9-612 Required per assembly: 2 $8.20 $7.84 - + Add to cart
020	NUT, CAP, (6MM) Part #: 90201-415-000 Required per assembly: 1 $3.11 $2.90 - + Add to cart
021	WASHER, OIL, BOLT Part #: 90545-300-000 Required per assembly: 4 $4.80 $4.09 - + Add to cart
022	CIRCLIP Part #: 90651-MA5-671 Required per assembly: 1 $3.19 $2.51 - + Add to cart
023	SCREW, FLAT, (4X12) Part #: 93600-04012-0G Required per assembly: 2 $1.87 $1.70 - + Add to cart
024	SCREW-WASHER (4X12) Part #: 93893-04012-08 Required per assembly: 3 $2.37 $2.19 - + Add to cart
025	BOLT, FLANGE, (6X10) Part #: 96001-06010-00 Required per assembly: 3 $2.63 $2.44 - + Add to cart
026	BOLT, FLANGE, (6X12) Part #: 96001-06012-00 Required per assembly: 1 $2.79 $2.60 - + Add to cart
027	BOLT, FLANGE, (6X22) Part #: 96001-06022-07 Required per assembly: 2 $2.84 $2.64 - + Add to cart
