1990 Honda PILOT (FL400R) - Crankshaft

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
002

RING SET (OS) (0.50)

Part #: 13013-HE0-305
Not Available
002

RING SET (OS) (0.25)

Part #: 13012-HE0-305
Not Available
002

RING SET (STD)

Part #: 13011-HE0-305 Required per assembly: 1
Not Available
003

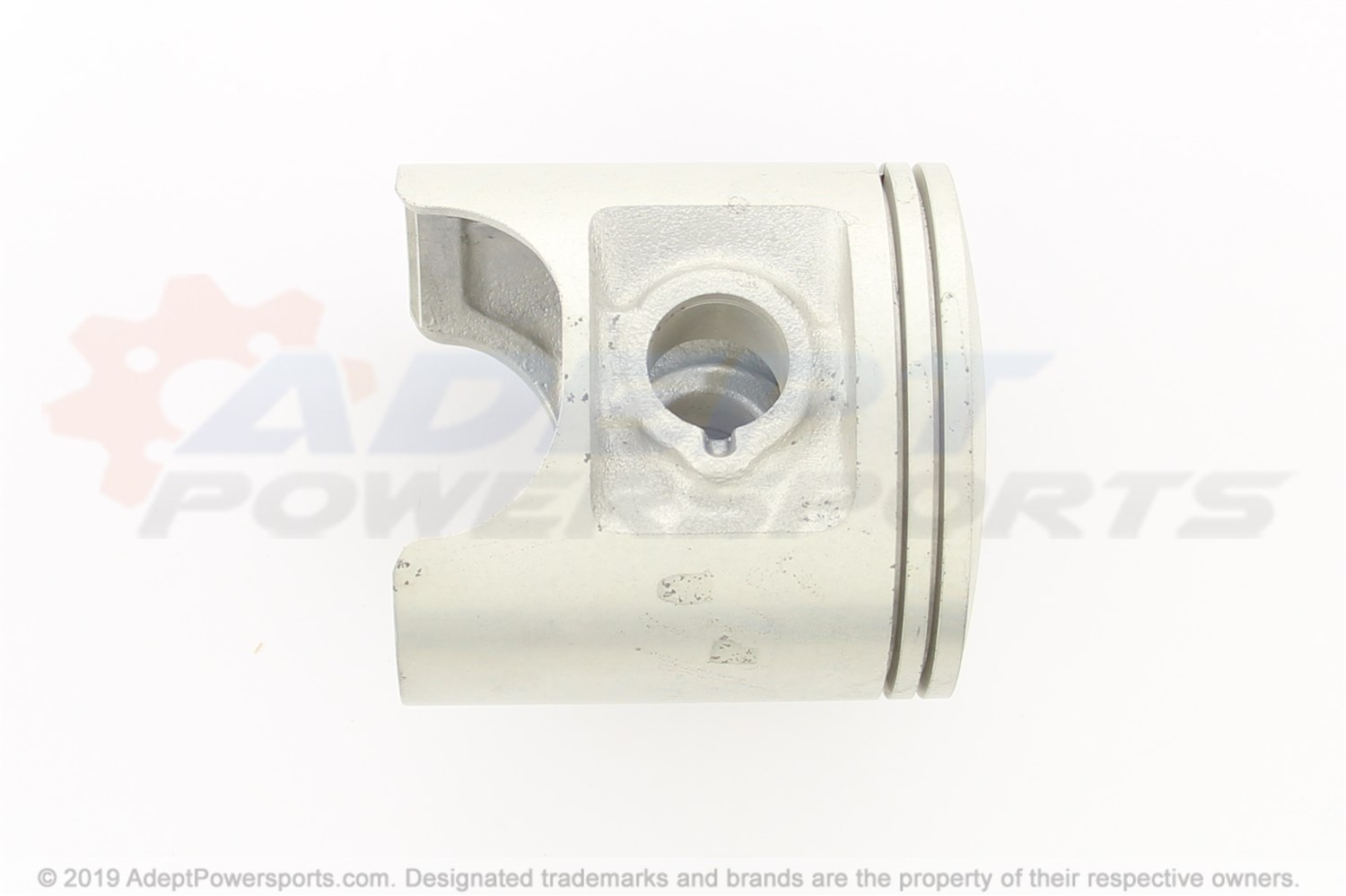

PISTON COMP. A

Part #: 13101-HE0-505 Required per assembly: 1
Not Available
003

PISTON (OS) (0.25)

Part #: 13102-HE0-315
Not Available
003

PISTON (OS) (0.50)

Part #: 13103-HE0-315
Not Available
006

PLATE

Part #: 13202-KA5-741 Required per assembly: 2
Not Available
009

WEIGHT (43T)

Part #: 13350-HE0-000 Required per assembly: 1
Not Available
011

PIN, C, CRANK

Part #: 13383-HE0-300 Required per assembly: 1
Not Available
011

PIN, B, CRANK

Part #: 13382-HE0-300 Required per assembly: 1
Not Available
011

PIN, A, CRANK

Part #: 13381-HE0-300 Required per assembly: 1
Not Available
012

NUT, LOCK, (30MM)

Part #: 90232-HE0-000 Required per assembly: 1
Not Available
013

WASHER (30X44)

Part #: 90460-HE0-000 Required per assembly: 1
Not Available
014

CLIP (1.2X20)

Part #: 90601-KA5-000 Required per assembly: 4
$2.41
$2.23
-
+
Add to cart
016

BEARING

Part #: 91003-HE0-003 Required per assembly: 1
Not Available
017

BEARING, CONN, ROD

Part #: 91005-HE0-003 Required per assembly: 1
Not Available
017

BEARING, CONN, ROD

Part #: 91004-HE0-003 Required per assembly: 1
Not Available
017

BEARING, CONN, ROD

Part #: 91006-HE0-003 Required per assembly: 1
Not Available
018

O-RING (27.4X2.4)

Part #: 91304-MG7-003 Required per assembly: 1
$7.75
$6.76
-
+
Add to cart
