Water Pipe replacement parts for 1990 Honda TRANSALP (XL600V)

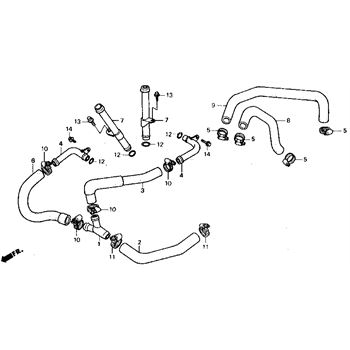

OEM Parts Honda 1990 Honda TRANSALP (XL600V) Water Pipe

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	JOINT, WATER, HOSE Part #: 19069-MM9-000 Required per assembly: 1 Not Available
002	HOSE, MAIN, WATER Part #: 19501-MM9-000 Required per assembly: 1 Not Available
003	HOSE, RR. Part #: 19502-MM9-000 Required per assembly: 1 Not Available
004	PIPE, WATER Part #: 19503-MM9-000 Required per assembly: 2 Not Available
005	CLAMP (25MM) Part #: 19504-KY1-003 Required per assembly: 2 $11.92 $10.16 - + Add to cart
006	HOSE, FR. Part #: 19505-MM9-000 Required per assembly: 1 Not Available
007	PIPE, OUTLET, WATER Part #: 19511-MM9-000 Required per assembly: 2 Not Available
008	HOSE, FR. Part #: 19521-MM9-000 Required per assembly: 1 Not Available
009	HOSE, RR. Part #: 19522-MM9-000 Required per assembly: 1 Not Available
010	CLAMP (25MM) Part #: 19504-KY1-003 Required per assembly: 2 $11.92 $10.16 - + Add to cart
011	CLAMP, WATER, HOSE Part #: 19505-ML3-770 Required per assembly: 10 $8.51 $7.39 - + Add to cart
012	SEAL, WATER, PIPE Part #: 91315-ME9-003 Required per assembly: 2 $5.44 $4.89 - + Add to cart
013	BOLT, FLANGE, (6X12) Part #: 96001-06012-00 Required per assembly: 1 $2.79 $2.60 - + Add to cart
014	BOLT, FLANGE, (6X14) Part #: 96001-06014-00 Required per assembly: 6 $2.79 $2.60 - + Add to cart
