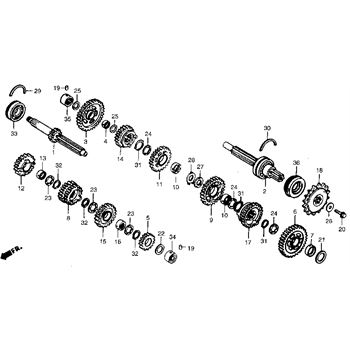

1990 Honda VTR (VTR250) - Transmission 89-90

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
001

MAINSHAFT

Part #: 23210-KV0-720 Required per assembly: 1
Not Available
002

COUNTERSHAFT

Part #: 23220-KV0-721 Required per assembly: 1
Not Available
003

GEAR (41T)

Part #: 23421-KY1-000 Required per assembly: 1
Not Available
004

COLLAR (20X8)

Part #: 23422-KY1-000 Required per assembly: 1
Not Available
005

GEAR (19T)

Part #: 23431-KY1-000 Required per assembly: 1
Not Available
006

GEAR (38T)

Part #: 23441-KY1-000 Required per assembly: 1
Not Available
007

COLLAR (25X8)

Part #: 23442-KV0-720 Required per assembly: 1
Not Available
008

GEAR (22T/24T)

Part #: 23451-KV0-720 Required per assembly: 1
Not Available
009

GEAR (35T)

Part #: 23461-KY1-010 Required per assembly: 1
Not Available
010

COLR, SPLINE, (25X8)

Part #: 23462-KY1-000 Required per assembly: 2
Not Available
011

GEAR (32T)

Part #: 23481-KY1-000 Required per assembly: 1
Not Available
012

GEAR (26T)

Part #: 23491-KY1-000 Required per assembly: 1
Not Available
013

COLLAR (22X13)

Part #: 23495-KY1-000 Required per assembly: 1
$22.83
$19.04
-
+
Add to cart
014

GEAR (30T)

Part #: 23501-KY1-000 Required per assembly: 1
Not Available
015

GEAR (28T)

Part #: 23511-KY1-000 Required per assembly: 1
Not Available
016

COLR, SPLINE, (22X14)

Part #: 23512-KEA-000 Required per assembly: 1
$23.42
$18.95
-
+
Add to cart
017

GEAR, COUNTERSHAFT

Part #: 23521-KBH-000 Required per assembly: 1
Not Available
018

SPROCKET (17T)

Part #: 23801-KY1-003 Required per assembly: 1
Not Available
019

PIN

Part #: 24261-283-000 Required per assembly: 1
$5.60
$5.09
-
+
Add to cart
020

BOLT, SPECIAL, (10MM)

Part #: 90037-422-003 Required per assembly: 1
$8.80
$7.62
-
+
Add to cart
021

WASHER (25.2X34)

Part #: 90446-KV0-720 Required per assembly: 1
Not Available
022

WASHER (17.2MM)

Part #: 90446-357-000 Required per assembly: 1
$4.96
$4.51
-
+
Add to cart
023

WASHER (22MM)

Part #: 90451-KY1-000 Required per assembly: 1
$5.18
$4.71
-
+
Add to cart
024

WASHER (25X31X1.5)

Part #: 90451-KY2-000 Required per assembly: 2
$5.18
$4.71
-
+
Add to cart
025

WASHER (20MM)

Part #: 90454-428-000 Required per assembly: 1
$3.69
$3.35
-
+
Add to cart
026

WASHER (10.2MM)

Part #: 90459-438-000 Required per assembly: 1
$6.99
$6.17
-
+
Add to cart
027

WASHER (25MM)

Part #: 90461-KY2-000 Required per assembly: 1
$5.83
$5.23
-
+
Add to cart
028

WASHER, LOCK, (25MM)

Part #: 90462-KAZ-000 Required per assembly: 1
$10.19
$8.74
-
+
Add to cart
029

RING (56MM)

Part #: 90601-MA6-000 Required per assembly: 2
$4.28
$3.89
-
+
Add to cart
030

SET-RING (52MM)

Part #: 90601-ML0-000 Required per assembly: 1
Not Available
031

CIRCLIP (25MM)

Part #: 90601-107-000 Required per assembly: 4
$5.10
$4.64
-
+
Add to cart
032

CIRCLIP (22MM)

Part #: 90601-329-000 Required per assembly: 1
$3.70
$3.36
-
+
Add to cart
033

BEARING, RADIAL, BALL

Part #: 91004-MA6-003 Required per assembly: 1
Not Available
034

BEARING (17MM)

Part #: 91021-KE8-003 Required per assembly: 1
Not Available
035

BEARING, NEEDLE, (20MM), (NTN)

Part #: 91022-MJE-DB1 Required per assembly: 1
$46.53
$39.82
-
+
Add to cart
036

OIL SEAL (34X52X9)

Part #: 91205-KT7-003 Required per assembly: 1
Not Available

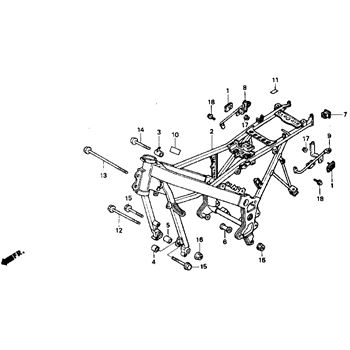

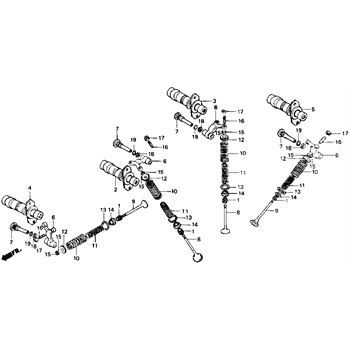

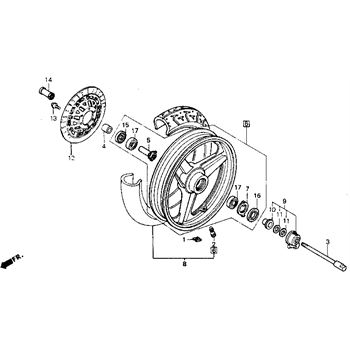

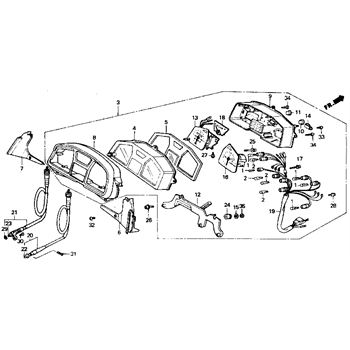

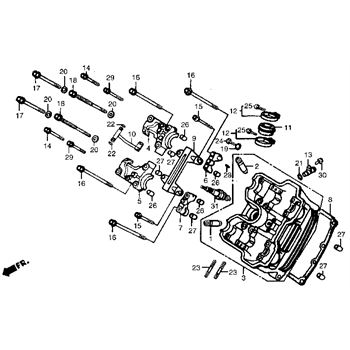

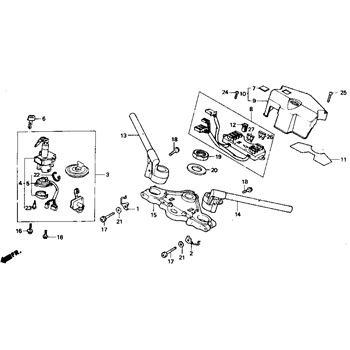

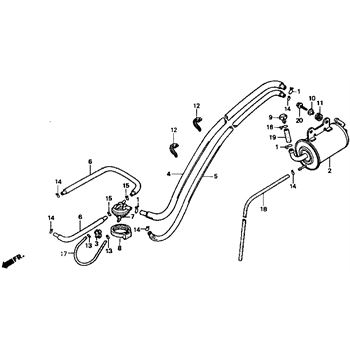

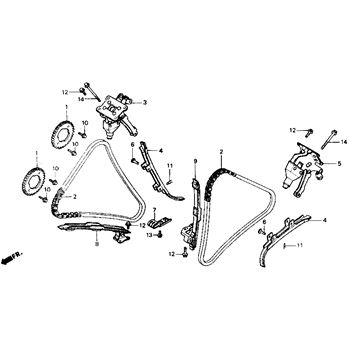

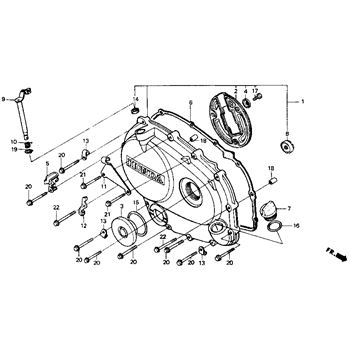

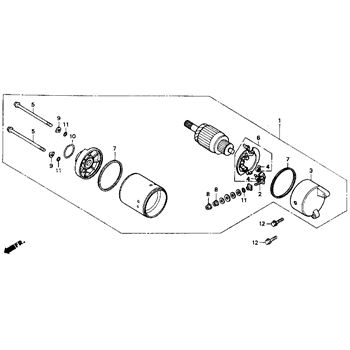

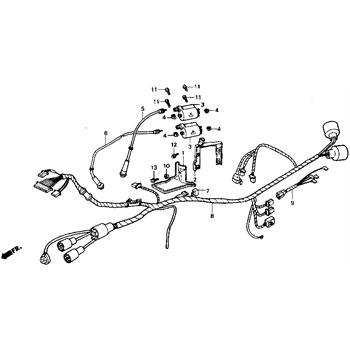

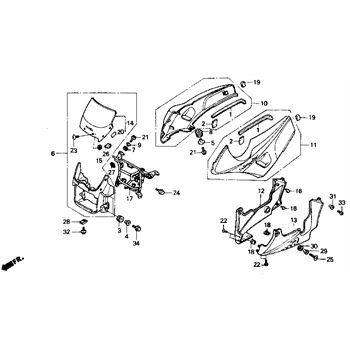

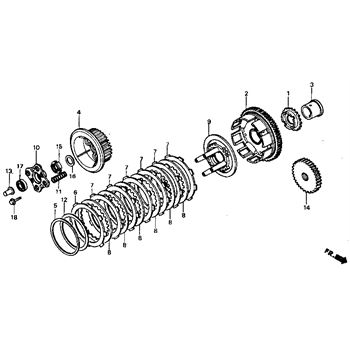

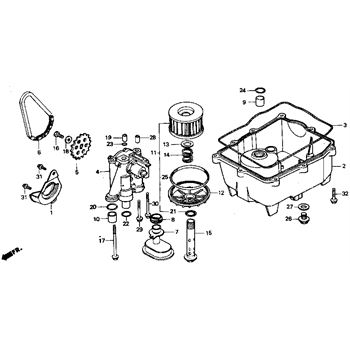

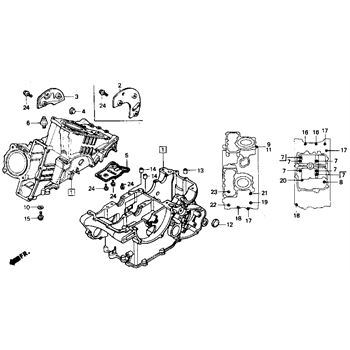

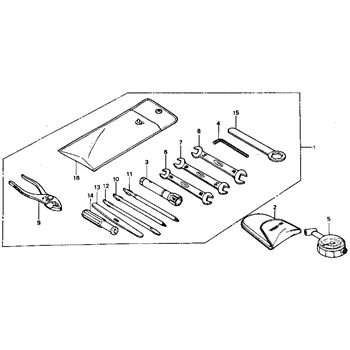

Other assembly diagrams for this model
