Seat replacement parts for 1990 Honda XR200R

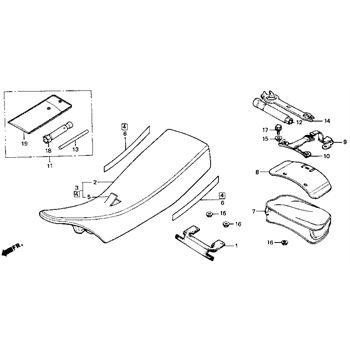

OEM Parts Honda 1990 Honda XR200R Seat

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	RUBBER, SEAT, (LOWER) Part #: 77120-KK0-000 Required per assembly: 1 Not Available
003	SEAT (TYPE1) Part #: 77200-KT0-A50ZA Required per assembly: 1 Not Available
007	BAG, TAIL Part #: 83501-KK0-000 Not Available
008	PLATE, TAIL, BAG Part #: 83502-KT0-770 Not Available
009	BAND, B, CARRIER Part #: 83506-KF0-000 Not Available
010	BAND, A, CARRIER Part #: 83507-KK0-000 Not Available
011	TOOL SET Part #: 89010-KT0-830 $24.54 $19.87 - + Add to cart
013	BAR, HANDLE Part #: 89217-045-670 $5.94 $5.31 - + Add to cart
015	WASHER Part #: 90563-045-000 Required per assembly: 3 $4.43 $4.03 - + Add to cart
016	NUT, FLANGE, (6MM) Part #: 94050-06000 Required per assembly: 2 $1.73 $1.59 - + Add to cart
017	BOLT, FLANGE, (6X16) Part #: 96300-06016-00 Required per assembly: 4 $1.98 $1.83 - + Add to cart
018	WRENCH, BOX, (P18) Part #: 99004-18002 $6.30 $5.98 - + Add to cart
019	BAG, TOOL, (160MM) Part #: 99008-01600 $3.12 - + Add to cart
