OEM Parts Polaris 1990 Polaris Trail Blazer (W907221) Gearcase Assembly

1990 Polaris Trail Blazer (W907221) - Gearcase Assembly

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7512242 Screw

SCREW

Part #: 7512242 Required per assembly: 4
$1.99
$1.15
-
+
Add to cart
3

BEARING, BALL

Part #: 3514001 Required per assembly: 1
Currently Not Available
6
Polaris 7512225 Screw

SCREW

Part #: 7512225 Required per assembly: 3
Currently Not Available
7
Polaris 3514304 Bearing, 205, W/O, Seal

BEARING, 205, W/O, SEAL

Part #: 3514304 Required per assembly: 3
Currently Not Available
8

SEAL, OIL

Part #: 3610015 Required per assembly: 2
Currently Not Available
9
Polaris 3211113 Belt, Drive

BELT, DRIVE

Part #: 3211113 Required per assembly: 1
Currently Not Available
10

SPACER, DRIVEN

Part #: 5211041 Required per assembly: 1
Currently Not Available
11

CLUTCH, DRIVEN, HVY, RET

Part #: 1322180 Required per assembly: 1
Currently Not Available
12
Polaris 5220646 Washer, Domed

WASHER, DOMED

Part #: 5220646 Required per assembly: 1
Currently Not Available
13
Polaris 7552901 Lock Washer

LOCK WASHER

Part #: 7552901 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
14

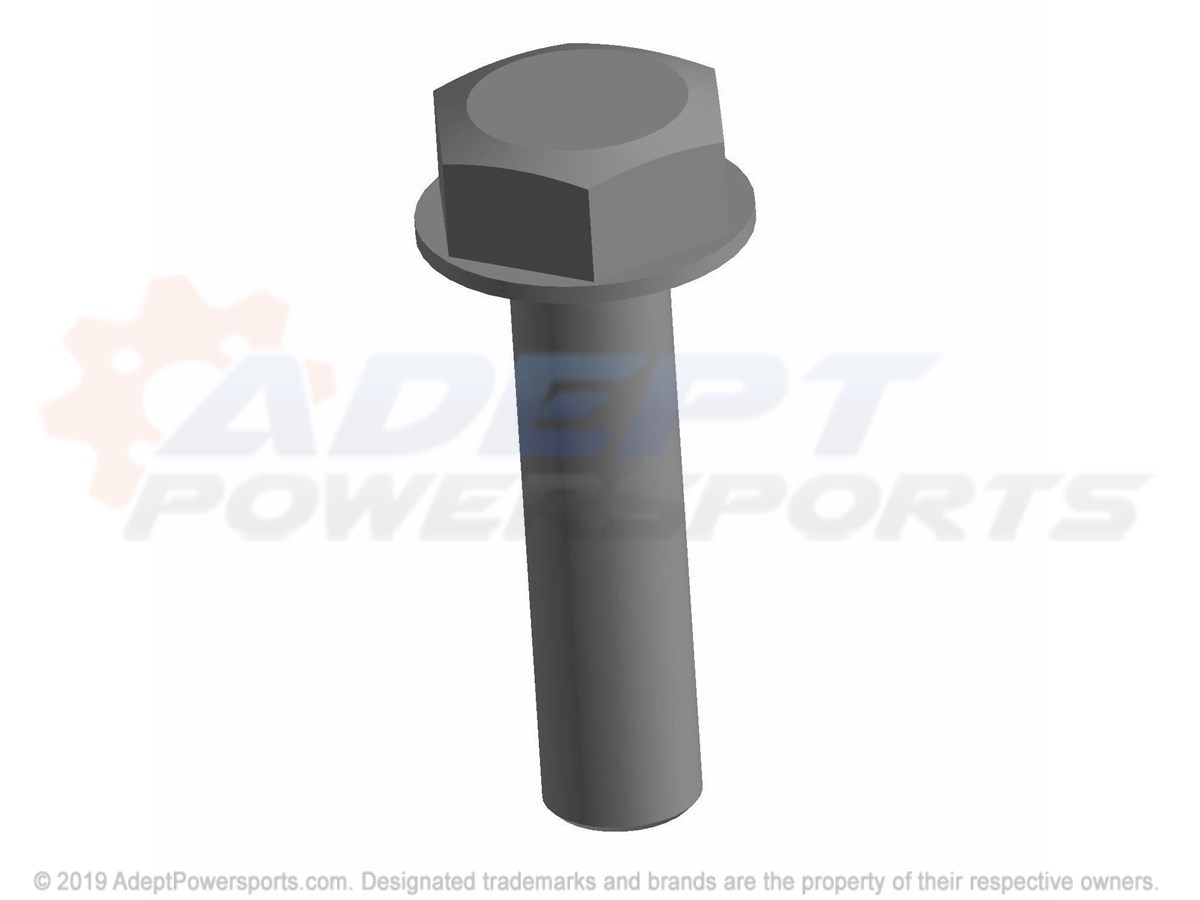

Polaris 7515327 Bolt

BOLT

Part #: 7515327 Required per assembly: 1
Currently Not Available
18

PLATE, BOLT, LOCK

Part #: 5220958 Required per assembly: 2
Currently Not Available
19
Polaris 7512702 Bolt, Shoulder

BOLT, SHOULDER

Part #: 7512702 Required per assembly: 1
Currently Not Available
19
Polaris 7512701 Bolt, Shoulder

BOLT, SHOULDER

Part #: 7512701 Required per assembly: 1
Currently Not Available
20

BOLT

Part #: 7515485 Required per assembly: 1
Currently Not Available
21
Polaris 7542404 Nut

NUT

Part #: 7542404 Required per assembly: 1
Currently Not Available
22
Polaris 7512492 Screw

SCREW

Part #: 7512492 Required per assembly: 1
$2.99
$1.73
-
+
Add to cart
23

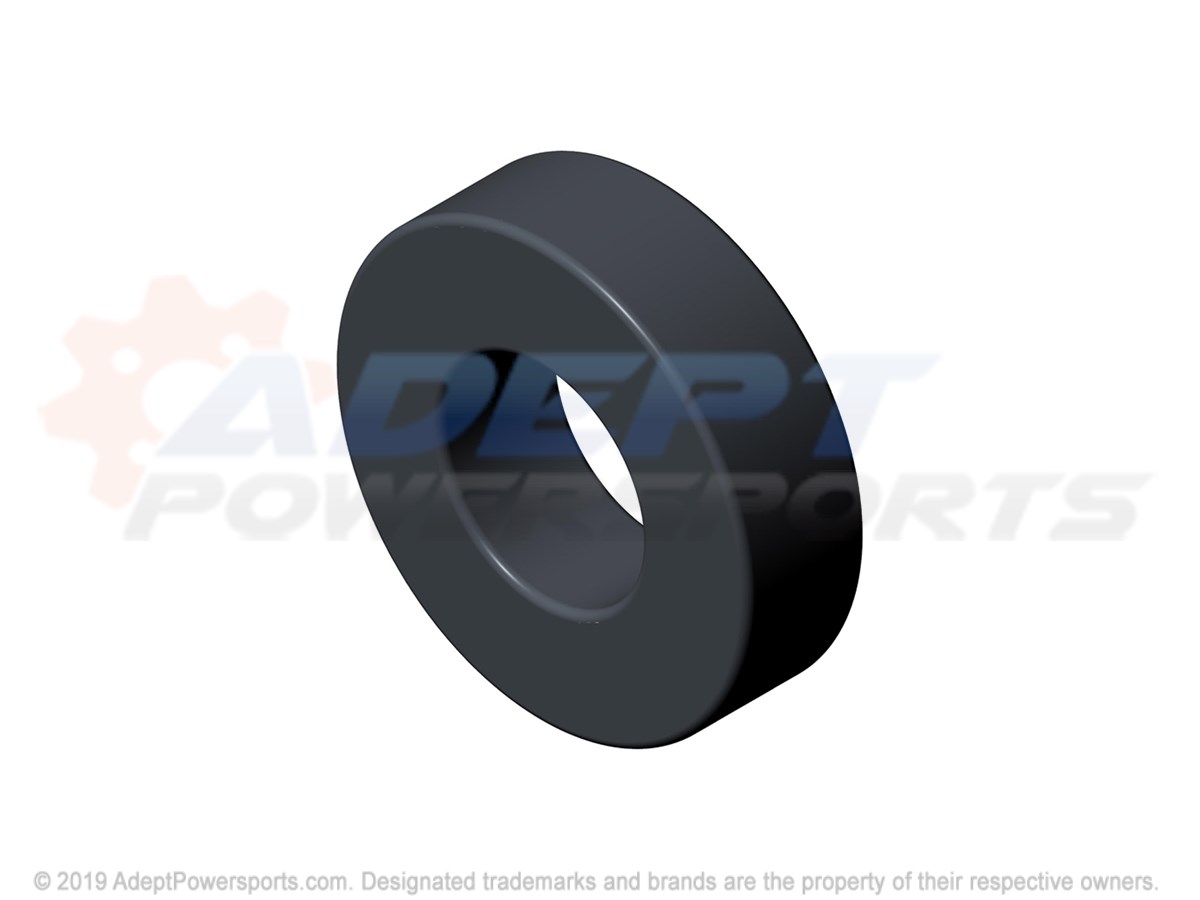

Polaris 7552603 Washer

WASHER

Part #: 7552603 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
25
Polaris 7515472 Bolt

BOLT

Part #: 7515472 Required per assembly: 1
Currently Not Available
26

CONNECTOR LINK

Part #: 3225024 Required per assembly: 1
Currently Not Available
27
Polaris 3221041 Spkt, 13T, Splined

SPKT, 13T, SPLINED

Part #: 3221041 Required per assembly: 1
Currently Not Available
27
Polaris 3221044 Sprocket, 12T

SPROCKET, 12T

Part #: 3221044 Required per assembly: 1
Currently Not Available
27
Polaris 3221043 Spkt, 11T, (Opt.)

SPKT, 11T, (OPT.)

Part #: 3221043 Required per assembly: 1 Note: SPKT, 11T
Currently Not Available
28

CHAIN-520, ORD4, O-RING, 88, PTCH

Part #: 3221193-088 Required per assembly: 1
Currently Not Available
32
Polaris 7542403 Nut Lock

NUT LOCK

Part #: 7542403 Required per assembly: 1
$3.99
$2.30
-
+
Add to cart
33
Polaris 7512208 Screw

SCREW

Part #: 7512208 Required per assembly: 6
Currently Not Available
35

GASKET, VENT

Part #: 5810305 Required per assembly: 1
Currently Not Available
39
Polaris 8360009-600 Fuel, Line, 1/8, Id, 600, Cm.

FUEL, LINE, 1/8, ID, 600, CM.

Part #: 8360009-600
Currently Not Available
42
Polaris 3280019 Bushing Metal Speedo

BUSHING METAL SPEEDO

Part #: 3280019 Required per assembly: 1
Currently Not Available
