Carburetor replacement parts for 1990 Yamaha RADIAN (YX600A)

OEM Parts Yamaha 1990 Yamaha RADIAN (YX600A) Carburetor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

002	CARBURETOR ASY 2 (1UJ-14902-00) Part #: 1UJ-14902-02-00 Required per assembly: 1 Not Available
004	CARBURETOR ASSEMBLY 4 (1UJ-14904-00) Part #: 1UL-14904-02-00 Required per assembly: 1 Not Available
005	PILOT SCREW SET Part #: 12R-14105-00-00 Required per assembly: 1 $18.98 $15.44 - + Add to cart
007	DIAPHRAGM ASSEMBLY Part #: 33M-14940-00-00 Required per assembly: 1 Not Available
008	NEEDLE SET Part #: 1UJ-1490J-00-00 Required per assembly: 1 Note: U.R. #1.4 Not Available
008	NEEDLE SET Part #: 1UL-1490J-00-00 Required per assembly: 1 Not Available
009	GASKET, FLOAT, CHMBR Part #: 46X-14984-00-00 Required per assembly: 1 $24.98 $17.81 - + Add to cart
010	JET, PILOT, #30 Part #: 4G0-14142-30-00 Required per assembly: 1 $12.99 $10.40 - + Add to cart
012	WASHER, MAIN, JET Part #: 137-14153-00-00 Required per assembly: 1 $8.49 $6.34 - + Add to cart
013	JET, MAIN, #975 Part #: 620-1423A-70-A0 Required per assembly: 1 $12.99 $10.58 - + Add to cart
014	SCREW, PAN, HEAD, (98511-04006- Part #: 98517-04006-00 Required per assembly: 1 $4.59 $4.46 - + Add to cart
015	FLOAT Part #: 4G0-14985-00-00 Required per assembly: 1 $49.99 $41.84 - + Add to cart
016	PIN, FLOAT Part #: 537-14186-00-00 Required per assembly: 1 $8.49 $7.15 - + Add to cart
017	NEEDLE VALVE SET Part #: 25G-14107-23-00 Required per assembly: 4 $53.99 $46.01 - + Add to cart
018	PLATE Part #: 2H0-14146-00-00 Required per assembly: 1 $7.49 $7.11 - + Add to cart
019	SCREW, PAN, HEAD, (62X) Part #: 97885-05010-00 Required per assembly: 2 $3.14 $3.08 - + Add to cart
021	SCREW, PAN, HEAD, (62X) Part #: 97885-05010-00 Required per assembly: 2 $3.14 $3.08 - + Add to cart
023	STARTER SET Part #: 33M-1410A-00-00 Required per assembly: 1 Not Available
024	SCREW, PAN, HEAD, -, FOR, CARB, #1, 4 Part #: 98580-04014-00 Required per assembly: 4 $3.29 $2.74 - + Add to cart
025	YBS67-4, WASHER, SPRING Part #: 92990-04100-00 Required per assembly: 4 $0.86 $0.61 - + Add to cart
027	JET, MAIN, (#135) Part #: 3G2-14231-27-00 Required per assembly: 1 $14.49 $10.40 - + Add to cart
028	CAP Part #: 3F9-14118-00-00 Required per assembly: 1 $9.49 $7.56 - + Add to cart
030	CABLE Part #: 4G0-14130-00-00 Required per assembly: 1 Not Available
031	THROTTLE SCREW SET Part #: 31A-14103-00-00 Required per assembly: 1 Not Available
033	SCREW, PAN, HEAD, (62X) Part #: 97885-05010-00 Required per assembly: 2 $3.14 $3.08 - + Add to cart
034	WASHER, SPRING Part #: 92990-05100-00 Required per assembly: 1 Note: Sold in multiples of 5 only $0.26 $0.25 - + Add to cart
035	SCREW, PAN, HEAD Part #: 98507-06014-00 Required per assembly: 8 $9.49 $6.06 - + Add to cart
036	HOSE Part #: 50H-14987-00-00 Required per assembly: 2 $45.99 $35.44 - + Add to cart

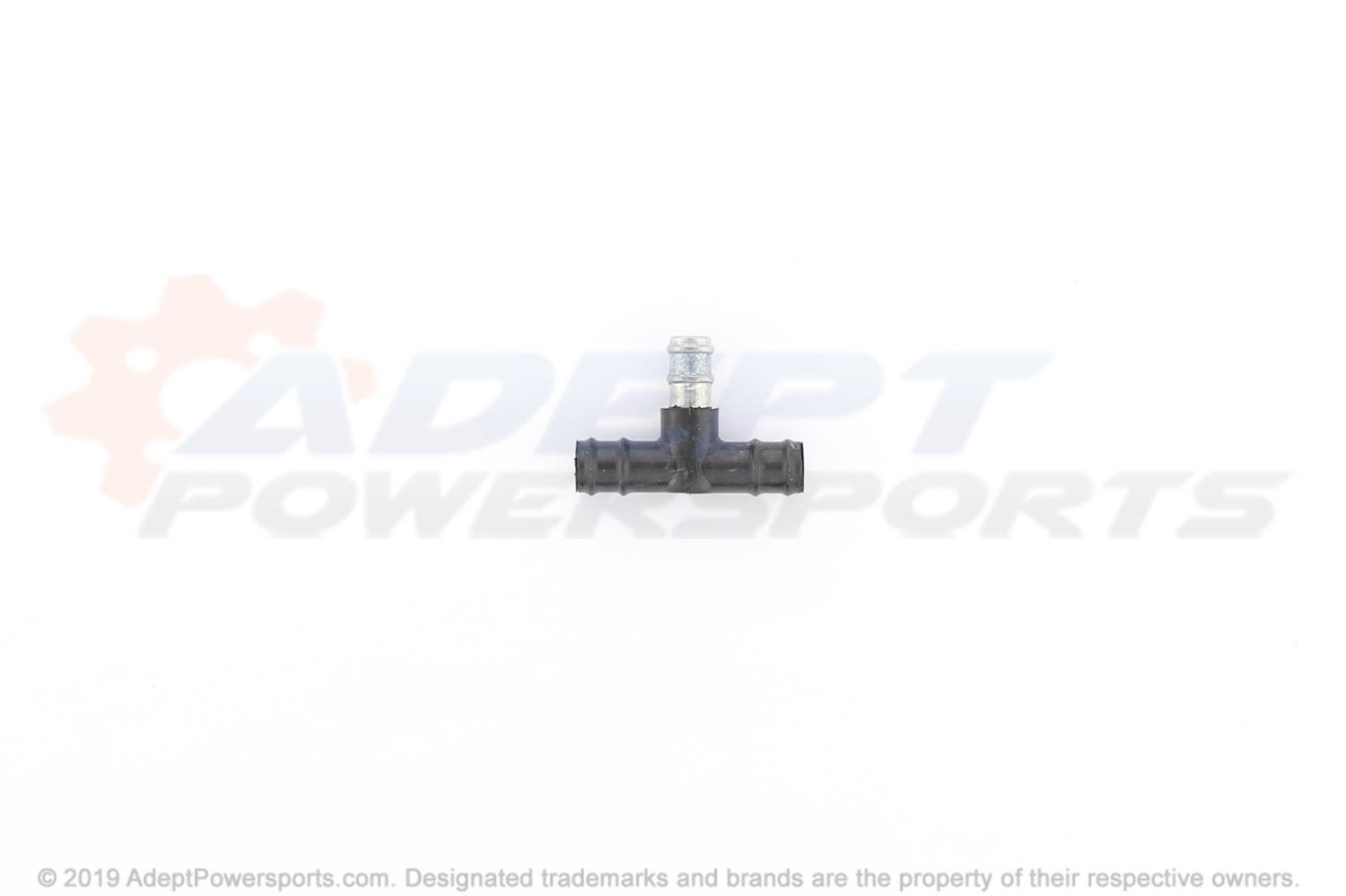

037	PIPE, STARTER, CON Part #: 4V7-14988-00-00 Required per assembly: 2 Not Available
038	O-RING Part #: 36Y-14147-00-00 Required per assembly: 4 $5.99 $4.97 - + Add to cart
039	SCREW, PAN, HEAD, (62X) Part #: 97885-05010-00 Required per assembly: 2 $3.14 $3.08 - + Add to cart
041	PIPE, STARTER, CON Part #: 4G0-14988-00-00 Required per assembly: 2 Not Available
042	PIPE, STARTER, CON Part #: 4U8-14988-00-00 Required per assembly: 1 $109.98 $92.55 - + Add to cart
