1990 Yamaha WR 650 - Fuel Pump

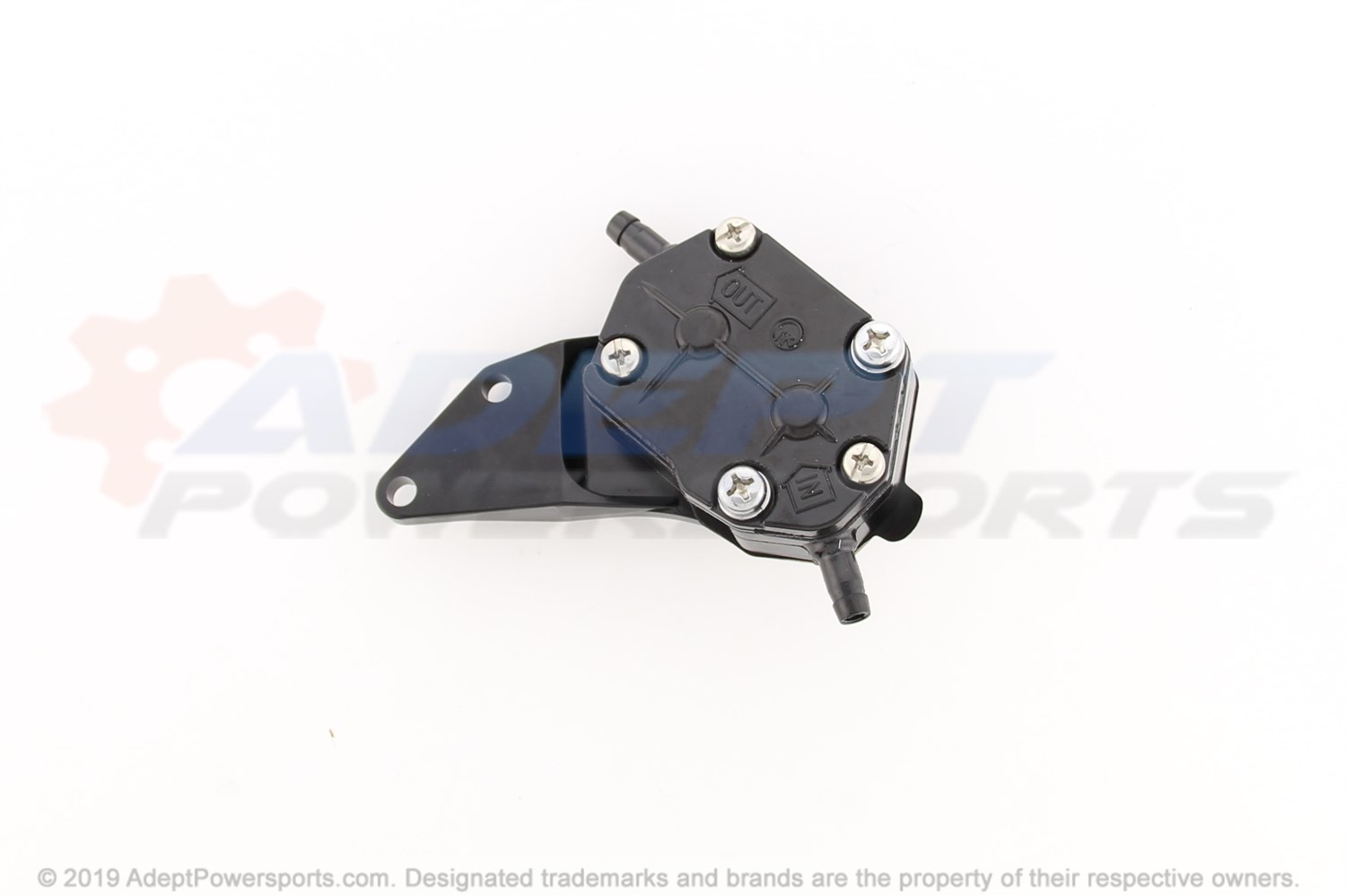

FUEL PUMP ASSEMBLY

Part #: 6M6-24410-01-00 Required per assembly: 1

Not Available

DIAPHRAGM

Part #: 648-24411-00-00 Required per assembly: 1

SEAT, SPRING

Part #: 648-24424-00-00 Required per assembly: 1

SPRING, DIAPHRAGM

Part #: 648-24423-00-00 Required per assembly: 1

GASKET, BODY

Part #: 648-24434-01-00 Required per assembly: 1

VALVE, CHECK

Part #: 62Y-24421-01-00 Required per assembly: 2

SCREW, PAN, HEAD

Part #: 90147-03M00-00 Required per assembly: 2

Not Available

NUT

Part #: 98813-03100-00 Required per assembly: 2

Not Available

GASKET, BODY, 2

Part #: 648-24435-03-00 Required per assembly: 1

DIAPHRAGM

Part #: 663-24411-00-00 Required per assembly: 1

BODY 2

Part #: 6M6-24413-02-00 Required per assembly: 1 Note: CARBURETOR 1

SCREW, PAN, HEAD

Part #: 98580-05530-00 Required per assembly: 3

WASHER, SPRING

Part #: 92990-05100-00 Required per assembly: 3 Note: Sold in multiples of 5 only

SCREW, PAN, HEAD, (6E0)

Part #: 97885-06030-00 Required per assembly: 2

WASHER, SPRING

Part #: 92995-06100-00 Required per assembly: 2 Note: Sold in multiples of 5 only

BOLT(7U8)

Part #: 97080-06020-00 Required per assembly: 2

WASHER, PLATE

Part #: 92990-06600-00 Required per assembly: 2 Note: Sold in multiples of 5 only

HOSE

Part #: 90445-10M43-00 Required per assembly: 1

HOSE (6TC)

Part #: 90446-14M51-00 Required per assembly: 1 Note: (L120)
