Muffler replacement parts for 1991 Honda CBR1000F

OEM Parts Honda 1991 Honda CBR1000F Muffler

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	PIPE, EX. Part #: 18150-MS2-721 Required per assembly: 1 Not Available
002	COVER, R., EX., PIPE Part #: 18156-MS2-721 Required per assembly: 1 Not Available
003	COVER, L., EX., PIPE Part #: 18256-MS2-721 Required per assembly: 1 ~~$79.47~~ $69.10 - + Add to cart
004	GASKET, EX., PIPE Part #: 18291-MM5-860 Required per assembly: 1 $7.43 - + Add to cart
005	MUFFLER, R., EX. Part #: 18310-MS2-405 Required per assembly: 1 Not Available
006	GROMMET A Part #: 18366-GW8-670 Required per assembly: 2 $5.48 - + Add to cart
007	BAND, R., MUFFLER Part #: 18371-MM5-640 Required per assembly: 1 Not Available
008	BAND, L., MUFFLER Part #: 18372-MM5-640 Required per assembly: 1 Not Available
009	GASKET, MUFFLER Part #: 18391-ML0-003 Required per assembly: 1 ~~$33.94~~ $28.29 - + Add to cart
010	MUFF, COMP, L, EXH Part #: 18410-MS2-405 Required per assembly: 1 Not Available
011	RUBBER, MUFF, MT Part #: 18421-MA6-000 Required per assembly: 2 $9.84 - + Add to cart
012	COLLAR, MUFF, MT Part #: 18422-MA6-000 Required per assembly: 1 $10.93 - + Add to cart
013	RUB, STAND, STOPPER Part #: 50524-MG9-000 Required per assembly: 1 $9.48 - + Add to cart
014	COVER, R., NH264M, (HAZY, GRAY, METALLIC) Part #: 64385-MS2-670ZB Required per assembly: 1 Not Available
015	RUBBER, PIVOT, COVER Part #: 64386-MS2-000 Required per assembly: 10 $7.62 - + Add to cart
017	COLLAR, LOCK, SETTING Part #: 83119-MG9-000 Required per assembly: 2 $8.40 - + Add to cart

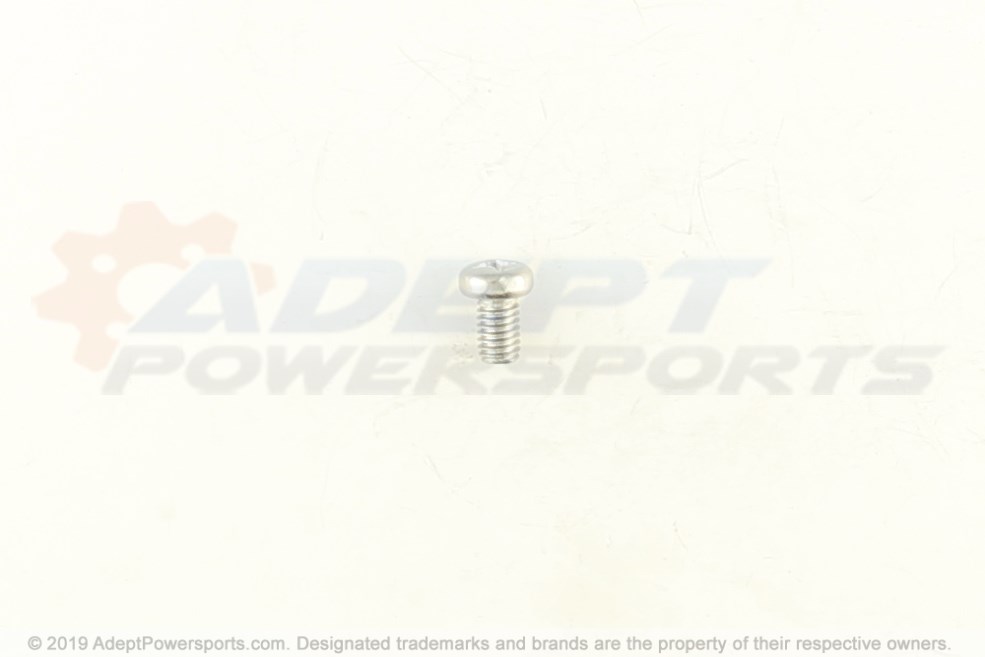

018	SCREW, PAN, (6X11) Part #: 90106-KY2-701 Required per assembly: 5 $6.18 - + Add to cart
019	SCREW, PAN, (6X14) Part #: 90118-MR1-000 Required per assembly: 2 $4.59 - + Add to cart
020	BOLT (8X45) Part #: 90158-MS9-000 Required per assembly: 2 Not Available
021	BOLT, FLANGE, (8X35) Part #: 90161-ML7-000 Required per assembly: 2 $5.38 - + Add to cart
022	NUT, FLANGE, (7MM) Part #: 90304-MM5-000 Required per assembly: 8 $7.12 - + Add to cart
023	NUT, CLIP, (6MM) Part #: 90344-MS2-000 Required per assembly: 2 Not Available
024	WASHER (8.5X26) Part #: 90504-MM5-000 Required per assembly: 1 Not Available
025	WASHER, SPRING, (6MM) Part #: 94111-06400 Required per assembly: 6 Not Available
026	SCREW, PAN, (6X10) Part #: 93500-06010-4J Required per assembly: 6 Not Available
027	NUT, FLANGE, (8MM) Part #: 94050-08000 Required per assembly: 1 Note: Sold in multiples of 5 only ~~$2.01~~ $1.41 - + Add to cart
028	WASHER, PLAIN, (6MM) Part #: 94101-06200 Required per assembly: 2 ~~$1.75~~ $0.96 - + Add to cart
029	BOLT, FLANGE, (8X45) Part #: 95701-08045-07 Required per assembly: 1 $4.32 - + Add to cart
