OEM Parts Honda 1992 Honda FOURTRAX 4X4 (TRX300FW) Labels

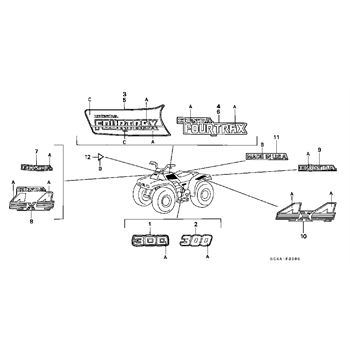

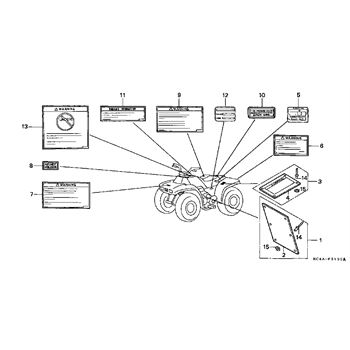

1992 Honda FOURTRAX 4X4 (TRX300FW) - Labels

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
005

MARK

Part #: 87506-HC4-300 Required per assembly: 1
Not Available
006

LABEL, TRAILER, HITCH

Part #: 87508-HC4-670 Required per assembly: 1
Not Available
007

LABEL, FR., CARRIER

Part #: 87511-HC4-900 Required per assembly: 1
Not Available
008

LABEL, HELMET, HOLDER

Part #: 87511-323-670 Required per assembly: 1
$3.75
$3.41
-
+
Add to cart
009

LABEL, RR., CARRIER

Part #: 87512-HC4-900 Required per assembly: 1
Not Available
010

LABEL

Part #: 87518-HB2-770 Required per assembly: 1
$4.42
$4.02
-
+
Add to cart
011

LABEL (4WD)

Part #: 87543-HC5-670 Required per assembly: 1
Not Available
012

LABEL (R109) (TYPE1)

Part #: 87565-HC5-900ZA Required per assembly: 1
Not Available
012

LABEL, COLOR, (TYPE2)

Part #: 87565-HC5-900ZB Required per assembly: 1
Not Available
012

LABEL, COLOR, (TYPE3)

Part #: 87565-HC5-900ZC Required per assembly: 1
Not Available
013

LABEL

Part #: 87704-HC4-670 Required per assembly: 1
Not Available
014

RIVET, POP, (3.2)

Part #: 90841-HF1-670 Required per assembly: 10
$2.63
$2.44
-
+
Add to cart
015

WASHER, PLAIN, (3MM)

Part #: 94103-03800 Required per assembly: 10
$1.90
$1.73
-
+
Add to cart
