Rear Hub replacement parts for 1993 Kawasaki Mule 2030 (KAF540-E1)

OEM Parts Kawasaki 1993 Kawasaki Mule 2030 (KAF540 E1) Rear Hub

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

190	BOLT-UPSET-WS, 10X16 Part #: 190BA1016 Required per assembly: 8 $4.79 $3.76 - + Add to cart
461	WASHER-SPRING, 18MM Part #: 461DA1800 Required per assembly: 2 Note: Sold in multiples of 5 only $3.00 $2.14 - + Add to cart
11012	CAP, WHEEL Part #: 11012-1969 Required per assembly: 2 $5.80 $4.49 - + Add to cart
13236	LEVER-COMP, REAR, BRAKE, PANEL, LH Part #: 13236-1180 Required per assembly: 1 Not Available
13236A	LEVER-COMP, REAR, BRAKE, PANEL, RH Part #: 13236-1181 Required per assembly: 1 Not Available
27012	HOOK, REAR, BRAKE, LEVER Part #: 27012-1396 Required per assembly: 2 Not Available
32085	STOPPER, REAR, BRAKE, LEVER Part #: 32085-1298 Required per assembly: 2 $11.37 $9.66 - + Add to cart
39020	BRACKET-COMP-REAR SUSP Part #: 39020-1053 Required per assembly: 1 Not Available
41035	PANEL, ASSEMBLY, BRAKE, RR, LH Part #: 41035-1268 Required per assembly: 1 Not Available
41035A	PANEL, ASSEMBLY, BRAKE, RR, RH Part #: 41035-1269 Required per assembly: 1 Not Available
41038	DRUM, REAR, BRAKE Part #: 41038-1226 Required per assembly: 2 $358.62 $354.71 - + Add to cart

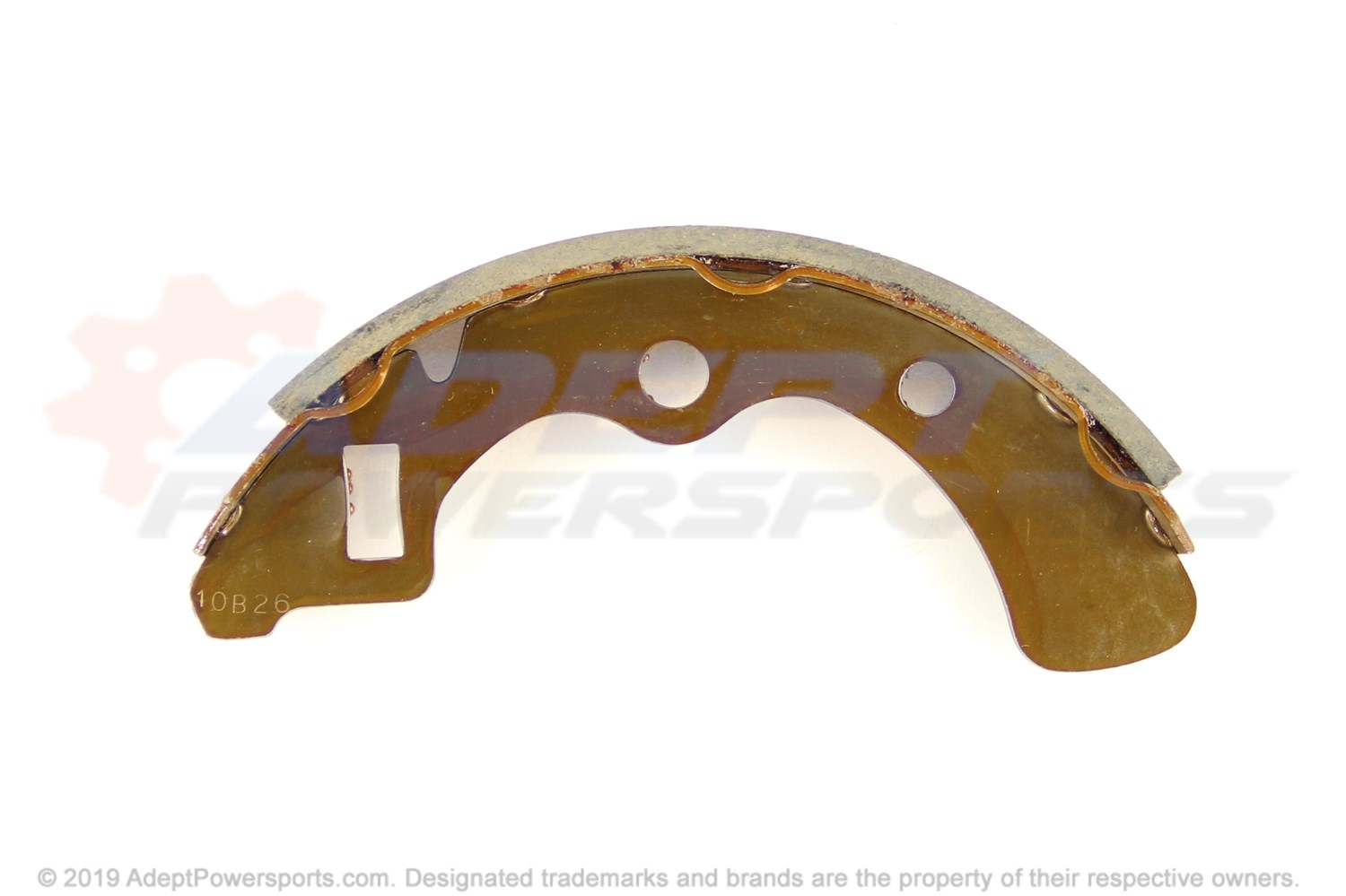

41048	SHOE-BRAKE (EACH) Part #: 41048-1078 Required per assembly: 2 Note: Sold in multiples of 2 only $29.87 $27.29 - + Add to cart
41048A	SHOE-BRAKE (EACH) Part #: 41048-1079 Required per assembly: 2 Note: Sold in multiples of 2 only $29.87 $27.29 - + Add to cart
43092	CYLINDER, REAR, WHEEL Part #: 43092-1053 Required per assembly: 2 $92.73 $84.92 - + Add to cart
49016	COVER-SEAL Part #: 49016-1151 Required per assembly: 2 $6.39 $4.94 - + Add to cart
92015	NUT, CASTLE, 18MM Part #: 42045-018 Required per assembly: 2 $9.46 $8.05 - + Add to cart
92015A	NUT, 6MM Part #: 92015-1729 Required per assembly: 4 $2.87 $2.06 - + Add to cart
92022	WASHER, 18.5X52X4.5 Part #: 92200-1474 Required per assembly: 2 $8.34 $7.20 - + Add to cart
92022A	WASHER, SPRING, 6MM Part #: 92022-1951 Required per assembly: 4 $2.87 $2.06 - + Add to cart
92041	COTTER, 4.0X35 Part #: 92041-1053 Required per assembly: 2 $4.04 $3.20 - + Add to cart
92043	PIN, TENSION Part #: 92043-1398 Required per assembly: 4 $5.00 $3.91 - + Add to cart
92045	BEARING-BALL Part #: 92045-1163 Required per assembly: 4 $34.03 $31.50 - + Add to cart
92066	PLUG Part #: 92066-1309 Required per assembly: 2 $5.94 $4.60 - + Add to cart
92081	SPRING, SHOE, CLAMP Part #: 92081-1904 Required per assembly: 4 $8.27 $7.16 - + Add to cart
92093	SEAL, REAR, BRAKE, LEVER Part #: 92093-1259 Required per assembly: 2 $16.66 $13.96 - + Add to cart
92143	COLLAR, 25.1X32X23.3 Part #: 92152-1238 Required per assembly: 2 $20.97 $17.56 - + Add to cart
92143A	COLLAR Part #: 92152-1239 Required per assembly: 2 $33.31 $30.87 - + Add to cart
92144	SPRING, BRAKE Part #: 92144-1299 Required per assembly: 1 $8.53 $7.37 - + Add to cart
92144A	SPRING, BRAKE Part #: 92144-1300 Required per assembly: 1 $8.53 $7.37 - + Add to cart
92144B	SPRING, BRAKE Part #: 92144-1301 Required per assembly: 2 $8.53 $7.37 - + Add to cart
92144C	SPRING, ROD, LH Part #: 92144-1302 Required per assembly: 1 $8.53 $7.37 - + Add to cart
92144D	SPRING, ROD, RH Part #: 92144-1303 Required per assembly: 1 $7.83 $6.79 - + Add to cart
92150	BOLT Part #: 92150-1366 Required per assembly: 8 $8.28 $7.17 - + Add to cart
