Electrical 2 replacement parts for 1993 Yamaha XVZ13DEC

OEM Parts Yamaha 1993 Yamaha XVZ13DEC Electrical 2

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	SY50N18LAT YUASA BATTERY Part #: SY5-0N18L-A0-00 Required per assembly: 1 Not Available
002	SENDER, BATTERY Part #: 26H-82120-00-00 Required per assembly: 1 Not Available
003	SEAT, BATTERY Part #: 26H-82122-00-00 Required per assembly: 1 Not Available
004	BAND, BATTERY Part #: 26H-82131-00-00 Required per assembly: 1 $25.98 $20.53 - + Add to cart
005	HOSE Part #: 90445-08716-00 Required per assembly: 1 Not Available
006	WIRE, PLUS, LEAD Part #: 26H-82115-00-00 Required per assembly: 1 Not Available
008	NEUTRAL SWITCH ASSEMBLY Part #: 41R-82540-02-00 Required per assembly: 1 Not Available
009	O-RING Part #: 93210-29196-00 Required per assembly: 1 $9.49 $6.34 - + Add to cart
010	SCREW, COUNTERSUNK Part #: 98707-05012-00 Required per assembly: 3 $1.85 $1.21 - + Add to cart
011	OIL LVL GAUGE ASSEMBLY Part #: 1NL-85720-00-00 Required per assembly: 1 Not Available
012	BOLT, HEXAGON Part #: 97017-06020-00 Required per assembly: 1 $4.05 $2.49 - + Add to cart
013	WASHER, SPRING Part #: 92995-06100-00 Required per assembly: 2 Note: Sold in multiples of 5 only $3.45 $3.24 - + Add to cart
014	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 2 Note: Sold in multiples of 5 only $2.85 $2.80 - + Add to cart
015	THERMO SWITCH ASSEMBLY Part #: 3LN-82560-01-00 Required per assembly: 1 $90.98 $76.58 - + Add to cart
016	THERMO UNIT Part #: 11H-83591-00-00 Required per assembly: 1 $114.98 $96.78 - + Add to cart
017	IGNITION COIL ASSEMBLY Part #: 25G-82310-10-00 Required per assembly: 4 $186.99 $159.94 - + Add to cart
018	WIRE, EARTH, LEAD, 1 Part #: 4NK-83354-00-00 Required per assembly: 1 Not Available
019	SCREW, PAN, HEAD, (713) Part #: 98580-04008-00 Required per assembly: 2 $6.49 $4.46 - + Add to cart
020	YBS67-4, WASHER, SPRING Part #: 92990-04100-00 Required per assembly: 4 $0.86 $0.61 - + Add to cart
021	WASHER, PLAIN, (646) Part #: 92990-04600-00 Required per assembly: 3 $1.13 $1.03 - + Add to cart
022	SCREW, PAN, HEAD Part #: 98580-06020-00 Required per assembly: 4 $8.49 $5.15 - + Add to cart
023	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 1 Note: Sold in multiples of 5 only $2.85 $2.80 - + Add to cart
024	CORD, HIGH, TENSION, 3 Part #: 1NL-82343-00-00 Required per assembly: 1 Not Available
025	CORD, HIGH, TENSION, 2 Part #: 41R-82342-00-00 Required per assembly: 1 Not Available
026	CORD, HIGH, TENSION, 3 Part #: 1NL-82343-00-00 Required per assembly: 1 Not Available
028	PLUG CAP ASSEMBLY Part #: 3NS-82370-00-00 Required per assembly: 1 $41.99 $31.90 - + Add to cart
029	PLUG CAP ASSEMBLY Part #: 4XY-82370-00-00 Required per assembly: 4 $87.98 $71.65 - + Add to cart
030	IGNITOR UNIT ASSEMBLY (3JJ-82305- Part #: 3JJ-82305-12-00 Required per assembly: 1 Not Available
031	SCREW, PAN, HEAD Part #: 98507-06014-00 Required per assembly: 4 $9.49 $6.06 - + Add to cart
032	WASHER, SPRING Part #: 92995-06100-00 Required per assembly: 2 Note: Sold in multiples of 5 only $3.45 $3.24 - + Add to cart
034	SENSOR, PRESSURE Part #: 22N-82380-10-00 Required per assembly: 1 Not Available
035	WIRE, SUB, LEAD Part #: 26H-82309-00-00 Required per assembly: 1 Not Available
036	SCREW, PAN, HEAD Part #: 98580-06020-00 Required per assembly: 4 $8.49 $5.15 - + Add to cart
037	WASHER, SPRING Part #: 92995-06100-00 Required per assembly: 2 Note: Sold in multiples of 5 only $3.45 $3.24 - + Add to cart
038	WASHER, PLATE Part #: 90201-06020-00 Required per assembly: 1 $10.49 $6.17 - + Add to cart
039	MAIN SWITCH STEERING LOCK Part #: 1NL-82501-01-00 Required per assembly: 1 Not Available
040	BOLT, HEXAGON, DEEP, RECESS Part #: 97D95-06016-00 Required per assembly: 6 $2.75 $1.87 - + Add to cart
041	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 1 Note: Sold in multiples of 5 only $2.85 $2.80 - + Add to cart
042	STOP SWITCH ASSEMBLY Part #: 2WR-82530-00-00 Required per assembly: 1 Not Available
044	FUSE (10A-BL) Part #: 42X-82151-00-00 Required per assembly: 2 $4.32 $2.18 - + Add to cart
045	FUSE (5A-BL) Part #: 1NL-82151-00-00 Required per assembly: 4 Note: Sold in multiples of 10 only $7.49 $6.21 - + Add to cart
046	FUSE (15A) Part #: 4X7-82151-00-00 Required per assembly: 1 $3.79 $2.92 - + Add to cart

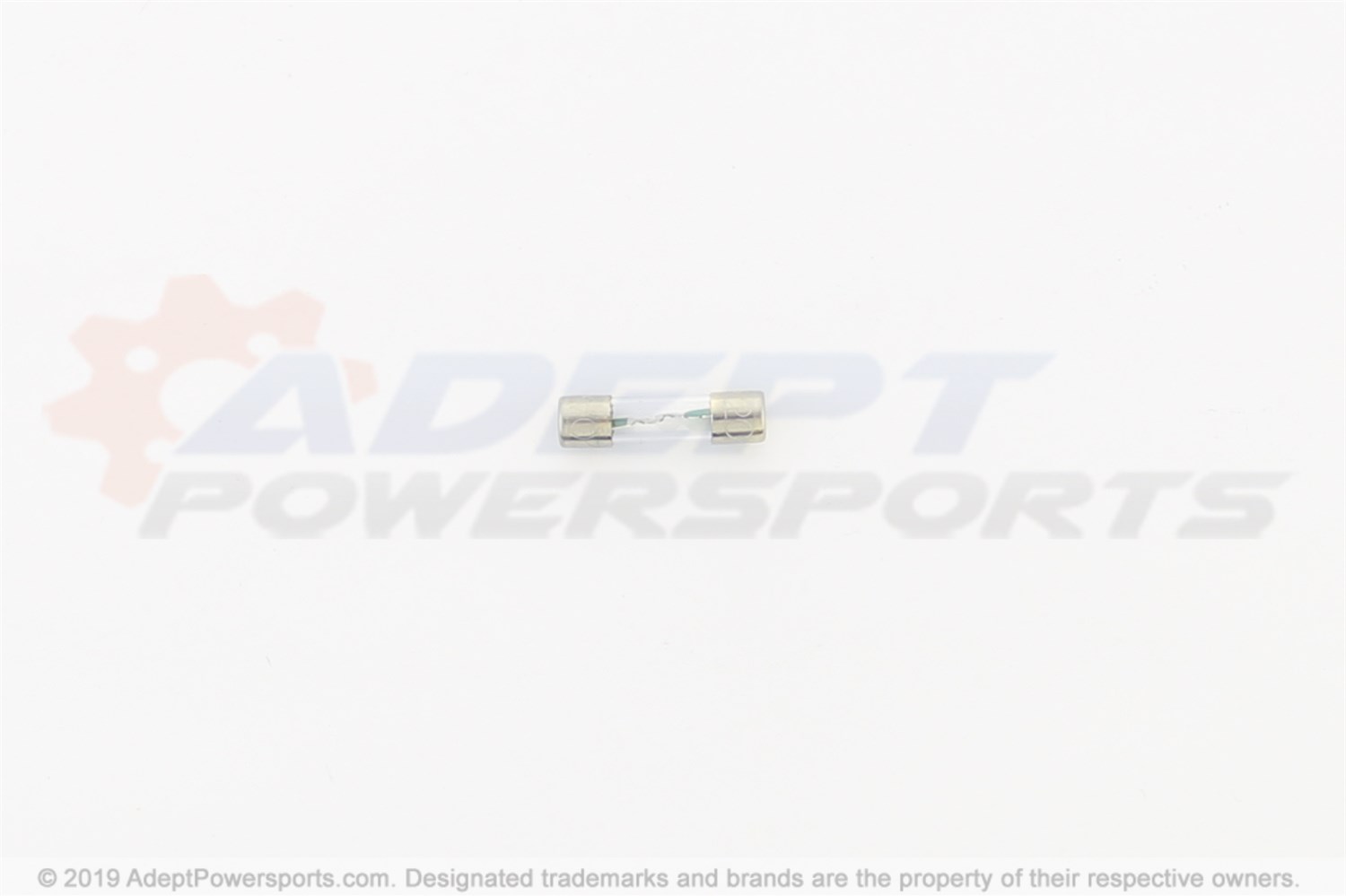

047	FUSE Part #: 1A0-82151-00-00 Required per assembly: 1 $17.98 $14.82 - + Add to cart
048	SCREW, TAPPING Part #: 97780-50620-00 Required per assembly: 1 $3.20 $3.08 - + Add to cart
049	WASHER, PLAIN Part #: 92990-06200-00 Required per assembly: 1 Note: Sold in multiples of 10 only $1.00 $0.77 - + Add to cart
050	BAND, SWITCH, CORD Part #: 437-83936-11-00 Required per assembly: 1 $5.00 $3.52 - + Add to cart
051	BAND, SWITCH, CORD Part #: 437-83936-01-00 Required per assembly: 2 $8.49 $6.31 - + Add to cart
052	BINDER (XL540J) Part #: 7H9-87188-00-00 Required per assembly: 12 $2.00 $1.29 - + Add to cart
053	FUSE HOLDER ASSEMBLY Part #: 26H-82150-01-00 Required per assembly: 1 Not Available
054	FUSE (40A) Part #: 707-82151-00-00 Required per assembly: 1 $3.79 $3.18 - + Add to cart
055	FUSE HOLDER ASSEMBLY Part #: 4X7-82150-00-00 Required per assembly: 1 Not Available
056	FUSE (20A) Part #: 1A0-82161-00-00 Required per assembly: 1 $7.99 $5.17 - + Add to cart
057	SWITCH, SIDE, STAND Part #: 26H-82566-00-00 Required per assembly: 1 Not Available
058	SCREW, FLAT, HEAD Part #: 98707-05016-00 Required per assembly: 2 $7.99 $5.50 - + Add to cart
059	RESERVE LIGHTING UNIT ASSEMBLY Part #: 10M-84308-00-00 Required per assembly: 1 Not Available
061	SCREW, TAPPING Part #: 97780-40112-00 Required per assembly: 8 $4.20 $3.93 - + Add to cart
062	WASHER, PLAIN Part #: 92990-04200-00 Required per assembly: 4 $1.86 $1.11 - + Add to cart
063	SWITCH, ALARMSWITCH, ASSEMBLY Part #: J45-82503-01-00 Required per assembly: 1 $40.99 $33.45 - + Add to cart
064	SCREW, PAN, HEAD Part #: 98507-04018-00 Required per assembly: 2 $2.35 $1.21 - + Add to cart
065	WASHER (JF2) Part #: 92907-04600-00 Required per assembly: 1 $1.85 $1.21 - + Add to cart
