Switch, Authorities replacement parts for 1994-2001 BMW R1100RT (259T)

OEM Parts Bmw 1994-2001 Bmw R1100RT (259T) Switch, Authorities

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	FILLISTER HEAD SCREW - M4X8 Part #: 07119906407 Required per assembly: 4 Currently Not Available
02	WAVE WASHER - B4 Part #: 07119932033 Required per assembly: 4 Currently Not Available
03	BRACKET Part #: 61312317597 Required per assembly: 1 Currently Not Available
04	SWITCH HOUSING Part #: 61132316865 Required per assembly: 3 Currently Not Available

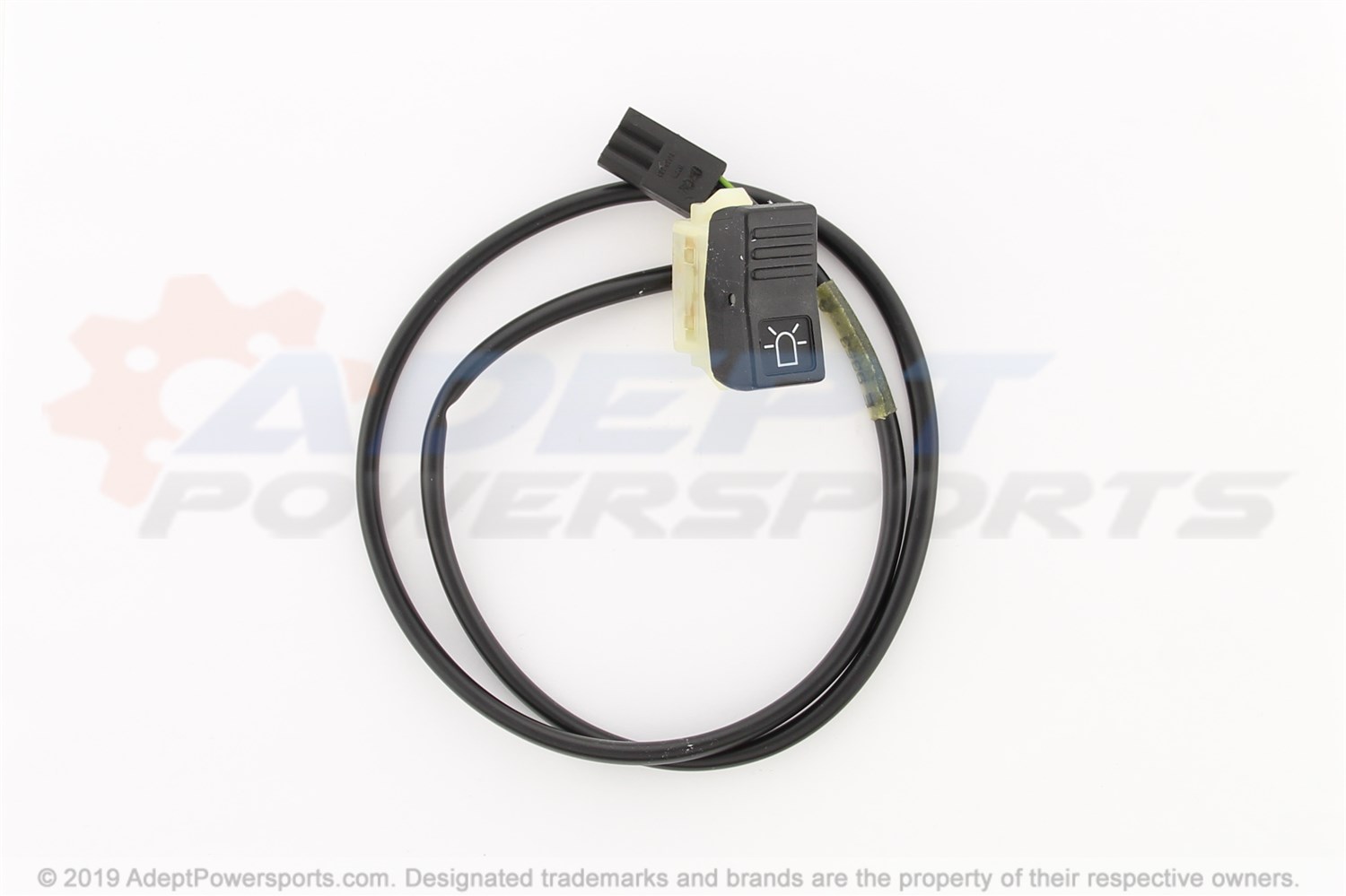

05	PRIORITY WARNING LIGHT SWITCH Part #: 61312315289 Required per assembly: 1 Note: FOR VEHICLES WITH PRIORITY WARNING LIGHT, BLUE (CODE: X466A) OR PRIORITY WARNING LIGHT, RED (CODE: X467A) Currently Not Available
06	SWITCH HOUSING, BOTTOM PART Part #: 61132316866 Required per assembly: 2 Currently Not Available
07	CLAMP "RT" Part #: 61312317246 Required per assembly: 2 Currently Not Available
08	FILLISTER-HEAD SCREW - M 4X30 Part #: 07119919955 Required per assembly: 4 Currently Not Available
10	SYMBOL SIGNALLING LIGHT Part #: 61311459361 Required per assembly: 1 Note: FOR VEHICLES WITH PRIORITY WARNING LIGHT, BLUE (CODE: X466A) OR PRIORITY WARNING LIGHT, RED (CODE: X467A) Currently Not Available
10	SYMBOL SIGNALLING LIGHT Part #: 61312305196 Required per assembly: 1 Note: FOR VEHICLES WITH CRUISING LIGHT SPAIN (CODE: X114A) OR PRIORITY VEHICLE LIGHT, BLUE (CODE: X441A) OR PRIORITY VEHICLE LIGHT, RED (CODE: X442A) OR FLASH SIGNALLING LIGHT BLUE (CODE: X464A) OR RED FLASH SIGNALLING LIGHT (CODE: X465A) OR SIGNALLING LIGHT,BLUE (CODE: X481A) OR SIGNALLING LIGHT,RED (CODE: X482A) OR PREP., SEQUENTIAL SIREN, FRANCE (CODE: X494A) Currently Not Available
12	FOG TAIL LAMP SYMBOL Part #: 61312305197 Required per assembly: 1 Currently Not Available
12	CLIP WITHOUT SYMBOL Part #: 61311459363 Required per assembly: 1 Currently Not Available
13	COVERING CAP Part #: 32711459318 Required per assembly: 1 Currently Not Available
