Fuel Tank replacement parts for 1994 Yamaha G9AK

OEM Parts Yamaha 1994 Yamaha G9AK Fuel Tank

FUEL TANK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FUEL TANK Part #: J55-F4111-12-00 Required per assembly: 1 Not Available
2	BODY CAP ASSEMBLY Part #: J24-24620-01-00 Required per assembly: 1 $51.99 $49.88 - + Add to cart
3	GASKET, CAP Part #: J10-24612-00-00 Required per assembly: 1 $4.09 $2.65 - + Add to cart
4	GROMMET Part #: J10-21773-00-00 Required per assembly: 1 $3.29 $2.42 - + Add to cart
5	RELEASE VALVE ASSEMBLY Part #: J24-24460-01-00 Required per assembly: 1 $20.98 $19.64 - + Add to cart
6	FILTER ASSEMBLY Part #: 8R4-24560-00-00 Required per assembly: 1 $22.98 $21.15 - + Add to cart
7	GASKET Part #: 8F3-24564-00-00 Required per assembly: 1 $14.49 $11.90 - + Add to cart
8	FUEL LEVEL GAUGE ASSEMBLY Part #: J38-85710-03-00 Required per assembly: 1 $34.99 $33.23 - + Add to cart
9	BOLT, HEXAGON Part #: 97017-08025-00 Required per assembly: 3 $11.49 $7.32 - + Add to cart
10	WASHER, PLATE, (4W3) Part #: 90201-086A3-00 Required per assembly: 3 $9.49 $6.17 - + Add to cart
11	NUT, FLANGE Part #: 95704-08500-00 Required per assembly: 1 $9.49 $6.06 - + Add to cart
12	FUEL PUMP ASSEMBLY Part #: J38-24410-10-00 Required per assembly: 1 Note: ~JG5-300100 $119.72 $108.83 - + Add to cart
12	FUEL PUMP ASSEMBLY Part #: JG5-24410-00-00 Required per assembly: 1 Note: JG5-300101~ $136.35 $123.95 - + Add to cart
13	COVER Part #: J38-24452-10-00 Required per assembly: 1 $26.59 $24.18 - + Add to cart
14	BOLT, FLANGE Part #: 95817-06014-00 Required per assembly: 2 $2.79 $2.10 - + Add to cart
15	PIPE, FUEL, 1 Part #: JG5-24311-01-00 Required per assembly: 1 Note: ~JG5-300100 Not Available
15	PIPE, FUEL, 1 Part #: JG5-24311-01-00 Required per assembly: 1 Note: JG5-300101~ Not Available
16	HOSE (L420) Part #: 90445-092K1-00 Required per assembly: 1 $12.49 $10.45 - + Add to cart
17	HOSE (L420) Part #: 90445-092K1-00 Required per assembly: 1 $12.49 $10.45 - + Add to cart
18	CLIP, SCISSOR Part #: 90467-11009-00 Required per assembly: 2 Note: ALT. PART $11.49 $7.42 - + Add to cart
19	CLIP, SCISSOR Part #: 90467-08017-00 Required per assembly: 4 $11.49 $7.36 - + Add to cart

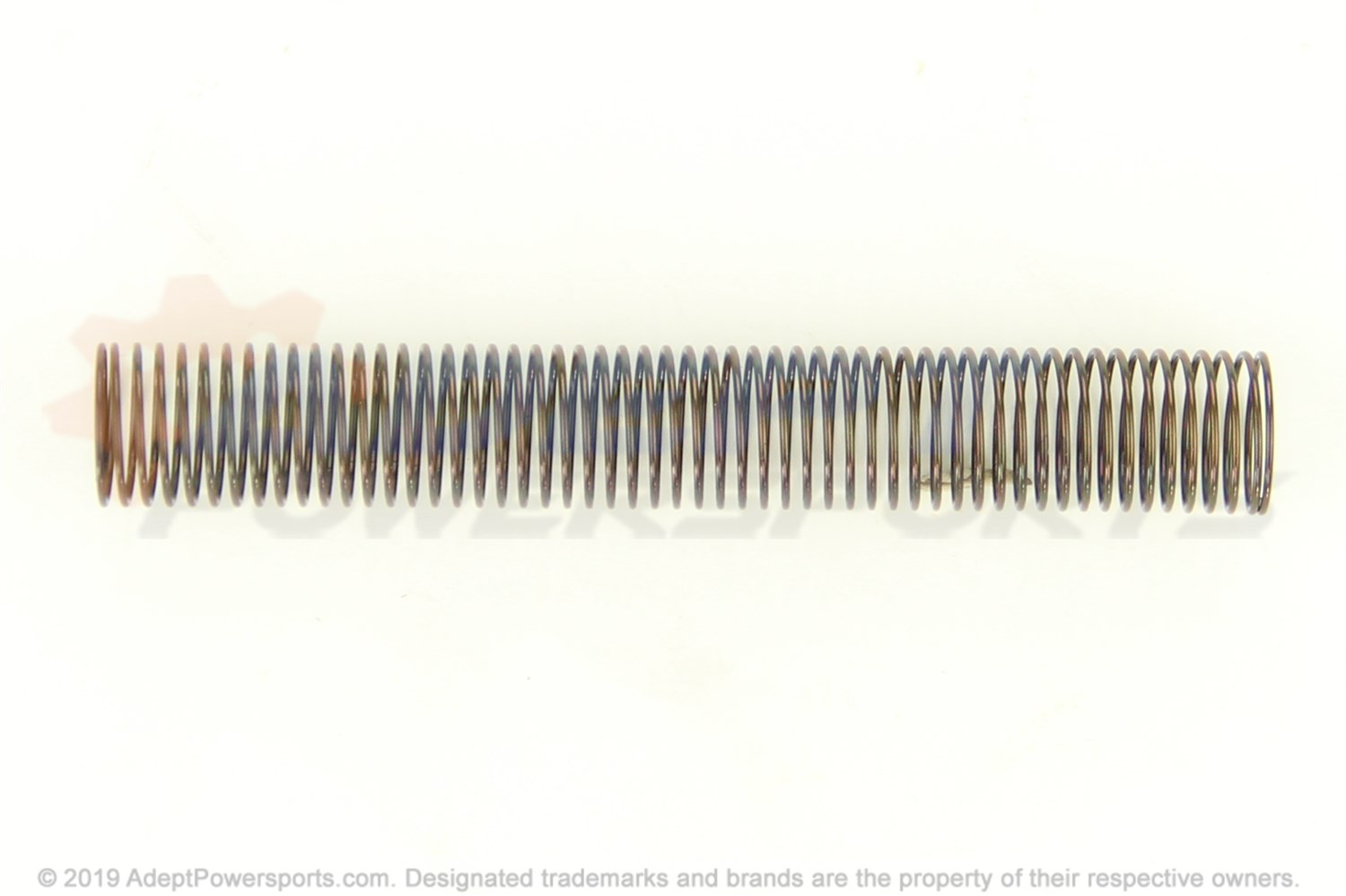

20	SPRING, COMPRESSION Part #: 90501-08707-00 Required per assembly: 1 Not Available
