Crankcase Cover (Model R/S) replacement parts for 1995 Suzuki RM250

OEM Parts Suzuki 1995 Suzuki RM250 Crankcase Cover (Model R/S)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	COVER, CLUTCH Part #: 11340-28840 Required per assembly: 1 Not Available
2	GASKET, CLUTCH, COVER Part #: 11482-28E10 Required per assembly: 1 Not Available
3	COVER, CLUTCH, OUTER Part #: 11371-28E02 Required per assembly: 1 Not Available
4	O, RING, CLUTCH, COVER, OUTER Part #: 11484-28C10 Required per assembly: 1 Not Available
5	PIN Part #: 04221-04089 Required per assembly: 2 $1.40 $1.26 - + Add to cart
6	PIN Part #: 04211-09129 Required per assembly: 2 $2.06 $1.85 - + Add to cart
7	BOLT Part #: 01547-0625B Required per assembly: 10 $3.03 $2.73 - + Add to cart
8	BOLT Part #: 01547-0635B Required per assembly: 1 Note: BOLT, CRANKCASE (6X35) $3.38 $3.04 - + Add to cart
9	BOLT Part #: 01547-0670B Required per assembly: 3 Note: BOLT (6X70); $4.21 $3.79 - + Add to cart
10	BOLT Part #: 01547-0680B Required per assembly: 1 $4.07 $3.66 - + Add to cart
11	BOLT Part #: 01547-0690B Required per assembly: 1 $4.09 $3.68 - + Add to cart
13	PLUB, OIL, LEVEL Part #: 09128-06044 Required per assembly: 1 Note: SCREW, OIL LEVEL; $1.74 $1.57 - + Add to cart
14	GASKET Part #: 09168-06004 Required per assembly: 1 Note: WASHER (6.2X11X1.2); $1.78 $1.60 - + Add to cart
16	GASKET, MAGNETO, COVER Part #: 11483-28E10 Required per assembly: 1 Not Available
17	BOLT Part #: 01547-0625B Required per assembly: 4 $3.03 $2.73 - + Add to cart
18	COVER, ENGINE, SPROCKET Part #: 11360-28E00 Required per assembly: 1 Note: MODEL N $42.49 $36.32 - + Add to cart
19	BOLT Part #: 01547-0625B Required per assembly: 1 $3.03 $2.73 - + Add to cart
20	BOLT Part #: 01547-0695B Required per assembly: 1 $4.22 $3.80 - + Add to cart
21-1	PLATE, CHAIN, GUIDE Part #: 27641-28C10 Required per assembly: 1 Not Available
21-2	PLATE, CHAIN, GUIDE Part #: 27641-28C00 Required per assembly: 1 Note: OPT,FOR NT:14 Not Available
21-3	PLATE, CHAIN, GUIDE Part #: 27641-28C20 Required per assembly: 1 Note: OPT,FOR NT:15 $13.11 $11.80 - + Add to cart
22	SPACER Part #: 09180-06203 Required per assembly: 1 Note: SPACER (6.5X10.5X25); $3.31 $2.98 - + Add to cart
23	CASE, ASSEMBLY, WATER, PUMP Part #: 17410-28E00 Required per assembly: 1 Not Available
24	CONNECTOR Part #: 17412-28E00 Required per assembly: 1 Note: MODEL P/R/S Not Available
25	O, RING, WATER, PUMP, CONNECTOR Part #: 17414-14300 Required per assembly: 1 Note: O RING; $3.69 $3.32 - + Add to cart
26	SCREW Part #: 02112-0616A Required per assembly: 2 $1.78 $1.60 - + Add to cart
27	BOLT, DRAIN Part #: 17415-43D00 Required per assembly: 1 $5.12 $4.61 - + Add to cart
28	GASKET Part #: 17413-28C10 Required per assembly: 1 $2.40 $2.16 - + Add to cart

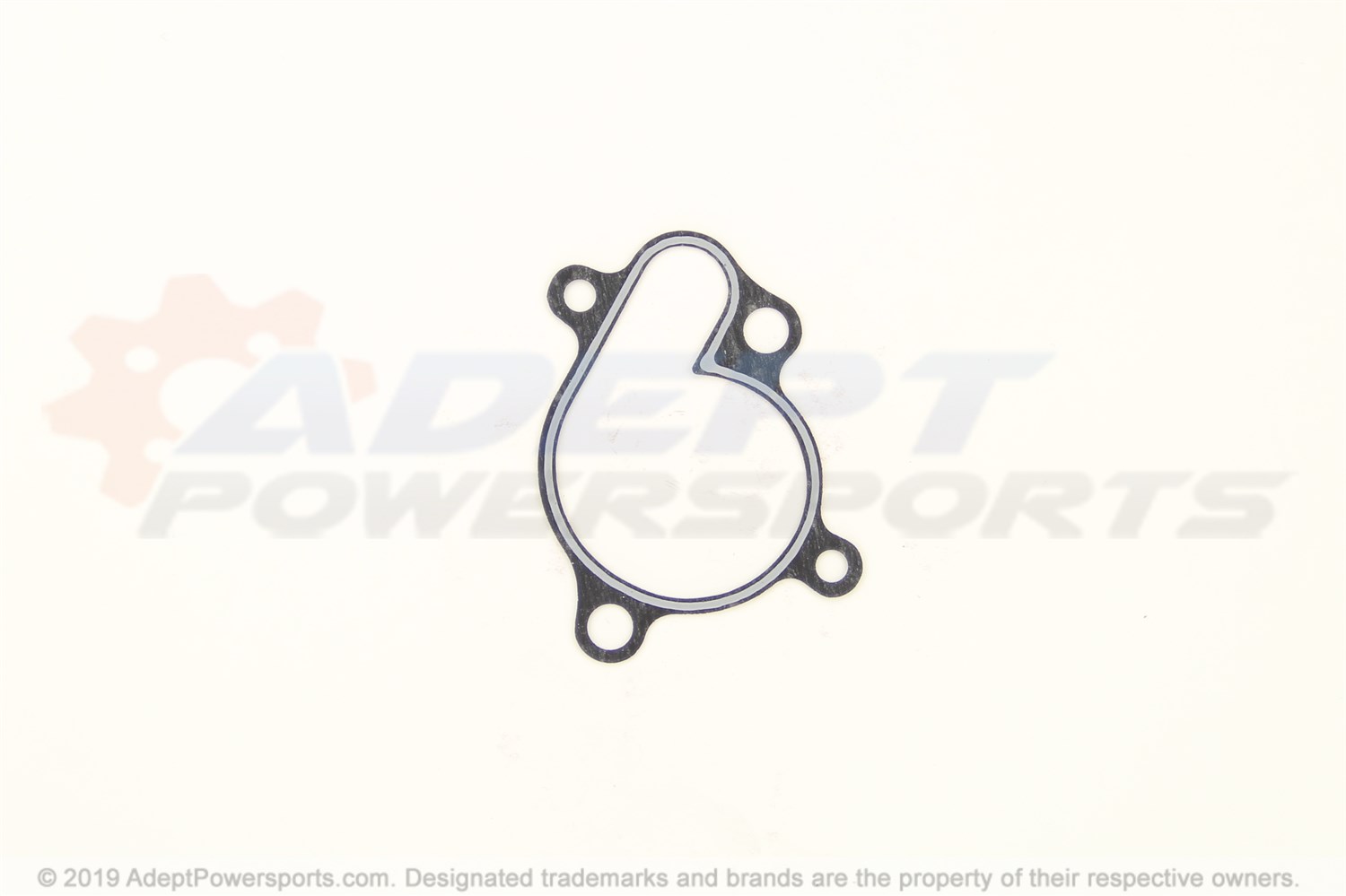

29	GASKET, WATER, PUMP, CASE Part #: 17431-28C10 Required per assembly: 1 $10.01 $9.01 - + Add to cart
30	PIN Part #: 04211-09129 Required per assembly: 2 $2.06 $1.85 - + Add to cart
31	BOLT Part #: 01547-0620B Required per assembly: 1 $3.03 $2.73 - + Add to cart
32	BOLT, SEC, CASE Part #: 01547-0630B Required per assembly: 1 $3.38 $3.04 - + Add to cart

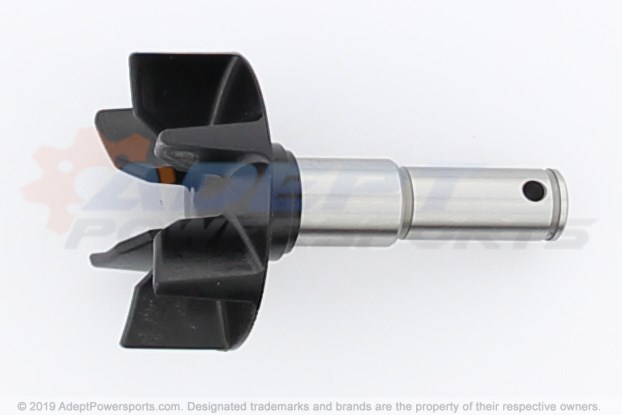

33	IMPELLER, WATER, PUMP Part #: 17491-28C10 Required per assembly: 1 $64.38 $55.05 - + Add to cart
34	SEAL, WATER, PUMP, OIL Part #: 17461-03B00 Required per assembly: 1 Note: MODEL K1/K2/K3 $10.66 $9.59 - + Add to cart
35	GEAR, WATER, PUMP, DRIVEN Part #: 17441-28C11 Required per assembly: 1 Not Available
36	PIN Part #: 09261-03010 Required per assembly: 1 Not Available
37	CIRCLIP Part #: 51118-36213 Required per assembly: 1 $4.81 $4.33 - + Add to cart
38	BEARING Part #: 08113-69000 Required per assembly: 2 $30.93 $26.43 - + Add to cart
39	CIRCLIP OIL PUM Part #: 08331-31109 Required per assembly: 1 $2.21 $1.99 - + Add to cart
