Front Wheel Brake replacement parts for 1996 Suzuki QuadRunner (LT-4WD)

OEM Parts Suzuki 1996 Suzuki QuadRunner (LT 4WD) Front Wheel Brake

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PLATE, BACKING, RH Part #: 54510-19B20 Required per assembly: 1 Not Available
2	PLATE, BACKING, LH Part #: 54810-19B20 Required per assembly: 1 Not Available
3	PLUG, DRAIN Part #: 01500-0816B Required per assembly: 8 Note: BOLT; $3.11 $2.80 - + Add to cart
4	LOCK WASHER Part #: 08321-0108A Required per assembly: 8 $2.30 $2.07 - + Add to cart
5	BOLT Part #: 01550-0610A Required per assembly: 4 Note: BOLT, LH; MODEL K6/K7 $2.45 $2.21 - + Add to cart
6	PLUG, BACKING, PLATE Part #: 54515-39D00 Required per assembly: 2 Note: PLUG, BACK PLATE; $3.17 $2.85 - + Add to cart
7	SHOE, SET, BRAKE Part #: 54400-19830 Required per assembly: 2 Note: MODEL M/N/P $39.79 $34.01 - + Add to cart

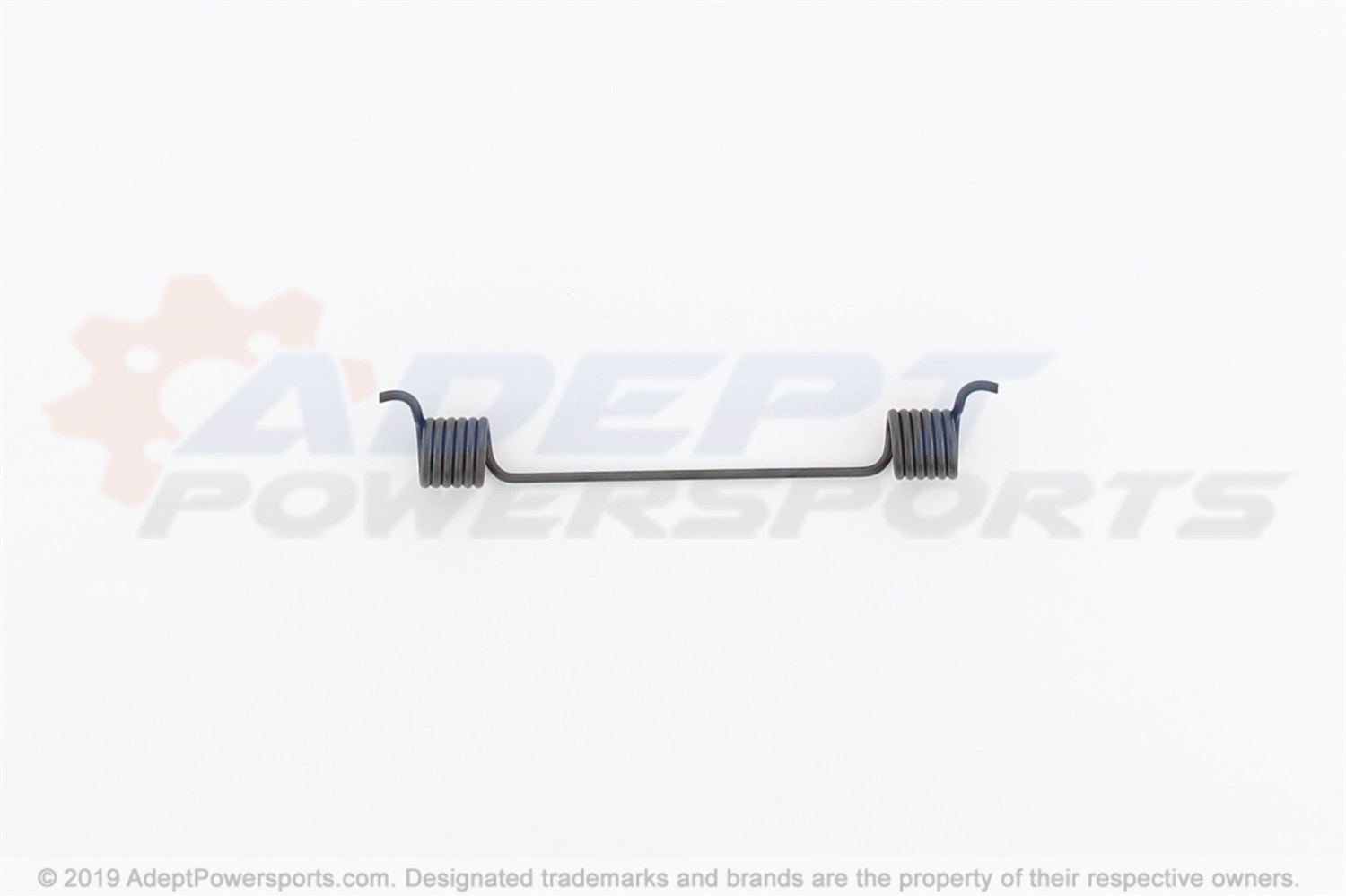

8	SPRING, SHOE, RETURN, UPPER Part #: 54531-19B01 Required per assembly: 2 $9.06 $8.15 - + Add to cart
9	SPRING, SHOE, RETURN, LOWER Part #: 54532-19B01 Required per assembly: 2 $8.91 $8.02 - + Add to cart
10	PIN, SHOE, HOLD, DOWN Part #: 53241-82030 Required per assembly: 4 $3.91 $3.52 - + Add to cart
11	SPRING, SHOE, HOLD, DOWN Part #: 53243-85010 Required per assembly: 2 $5.55 $5.00 - + Add to cart
12	SPRING, SHOE, HOLD, DOWN, RH Part #: 53245-82031 Required per assembly: 1 $8.02 $7.22 - + Add to cart
13	SPRING, SHOE, HOLD, DOWN, LH Part #: 53244-82031 Required per assembly: 1 $8.13 $7.32 - + Add to cart
14	CYLINDER, ASSEMBLY, FRONT, WHEEL Part #: 54540-19B10 Required per assembly: 2 $121.37 $103.77 - + Add to cart
15	PISTON SET Part #: 54500-19810 Required per assembly: 2 Not Available
16	CUP, SET, WHEEL, CYLINDER Part #: 53400-82811 Required per assembly: 2 $20.07 $17.14 - + Add to cart
17	SPRING, WHEEL, CYLINDER Part #: 53432-82030 Required per assembly: 2 $3.88 $3.49 - + Add to cart
18	PLUG, BLEEDER Part #: 54542-19B00 Required per assembly: 2 $9.18 $8.26 - + Add to cart
19	CAP, BLEEDER Part #: 55156-66310 Required per assembly: 2 Note: CAP; $6.67 $6.00 - + Add to cart
20	GASKET, REAR, WHEEL, CYLINDER Part #: 53417-82030 Required per assembly: 2 $3.91 $3.52 - + Add to cart
21	STRUT, ASSEMBLY, BRAKE, RH Part #: 54550-19B10 Required per assembly: 1 Not Available
22	STRUT, ASSEMBLY, BRAKE, LH Part #: 54850-19B10 Required per assembly: 1 Not Available
23	SPRING, QUADRANT Part #: 53714-8203V Required per assembly: 2 $4.81 $4.33 - + Add to cart
24	SPRING, ANTIRATTLE, RH Part #: 54524-56B00 Required per assembly: 1 $5.55 $5.00 - + Add to cart
25	SPRING, ANTIRATTLE, LH Part #: 54824-56B00 Required per assembly: 1 $5.80 $5.22 - + Add to cart
26	E RING Part #: 08332-1104A Required per assembly: 2 $1.70 $1.53 - + Add to cart
