Turn Indicator, Rear replacement parts for 1997-2004 BMW R1100S (259S)

OEM Parts Bmw 1997-2004 Bmw R1100S (259S) Turn Indicator, Rear

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	TURN SIGNAL LAMP, WHITE Part #: 63137658964 Required per assembly: 1 Note: FOR VEHICLES WITH WHITE DIRECTION INDICATOR LIGHTS (CODE: X588A) ONLY FOR LEFT SIDE Currently Not Available

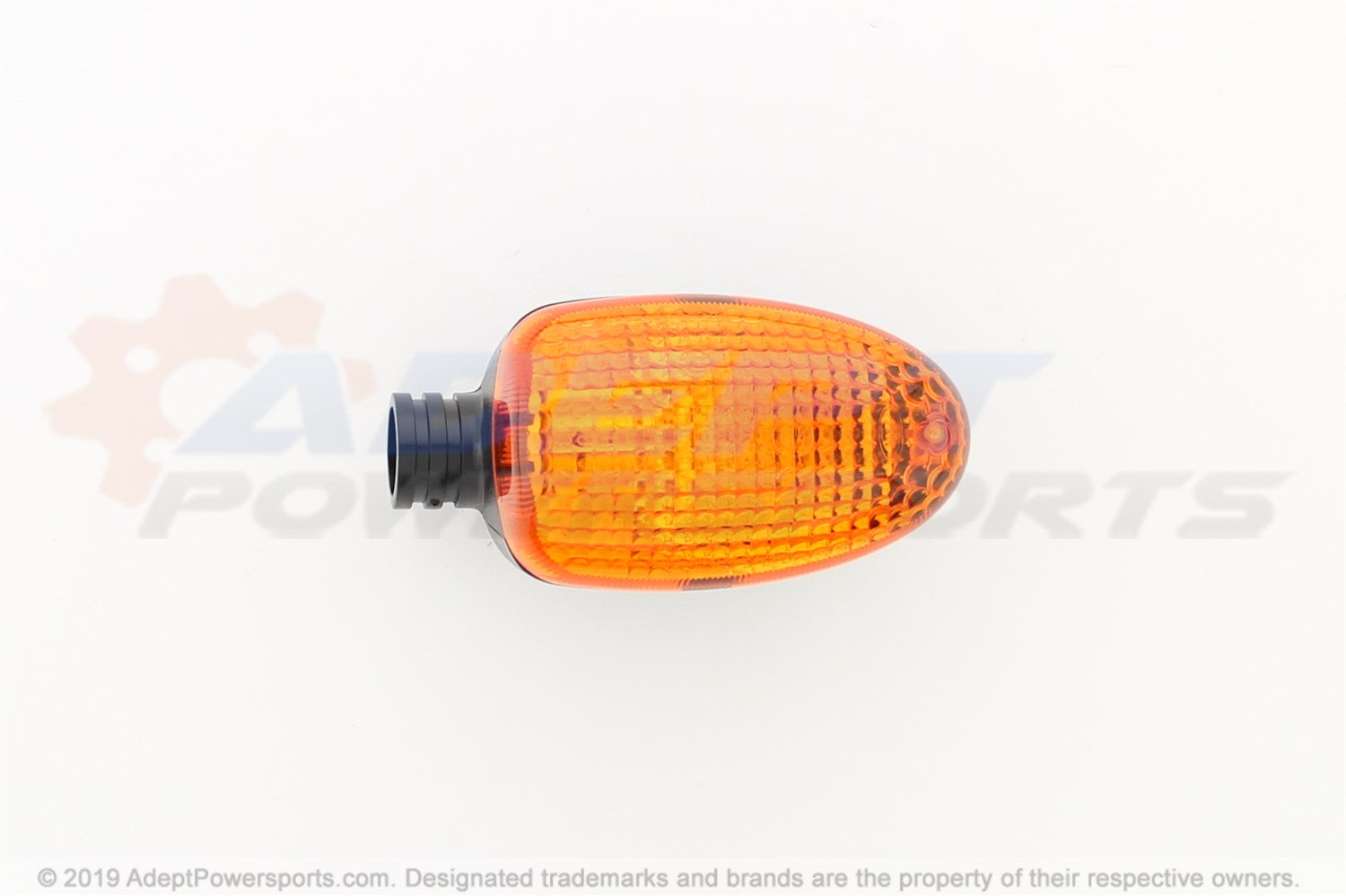

01	TURN INDICATOR Part #: 63132306494 Required per assembly: 1 Note: NOT FOR VEHICLES WITH WHITE DIRECTION INDICATOR LIGHTS (CODE: X588A) ONLY FOR LEFT SIDE Currently Not Available
02	TURN INDICATOR Part #: 63132306493 Required per assembly: 1 Note: NOT FOR VEHICLES WITH WHITE DIRECTION INDICATOR LIGHTS (CODE: X588A) ONLY FOR RIGHT SIDE Currently Not Available
02	TURN SIGNAL LAMP, WHITE Part #: 63137658963 Required per assembly: 1 Note: FOR VEHICLES WITH WHITE DIRECTION INDICATOR LIGHTS (CODE: X588A) ONLY FOR RIGHT SIDE Currently Not Available
03	HEADLIGHT LENS, WHITE Part #: 63137658957 Required per assembly: 2 Note: FOR VEHICLES WITH WHITE DIRECTION INDICATOR LIGHTS (CODE: X588A) Currently Not Available
03	LAMP LENS Part #: 63132306293 Required per assembly: 2 Note: NOT FOR VEHICLES WITH WHITE DIRECTION INDICATOR LIGHTS (CODE: X588A) Currently Not Available
04	LONGLIFE BULB, YELLOW - 12V 21W Part #: 63217176025 Required per assembly: 2 Note: FOR VEHICLES WITH WHITE DIRECTION INDICATOR LIGHTS (CODE: X588A) Currently Not Available
04	BULB - 12V 21W Part #: 63137160789 Required per assembly: 2 Not Available
04	BULB - P12V/21W Part #: 63217160789 Required per assembly: 2 Currently Not Available
05	SCREW - 3,5X12 Part #: 63132306499 Required per assembly: 4 Currently Not Available

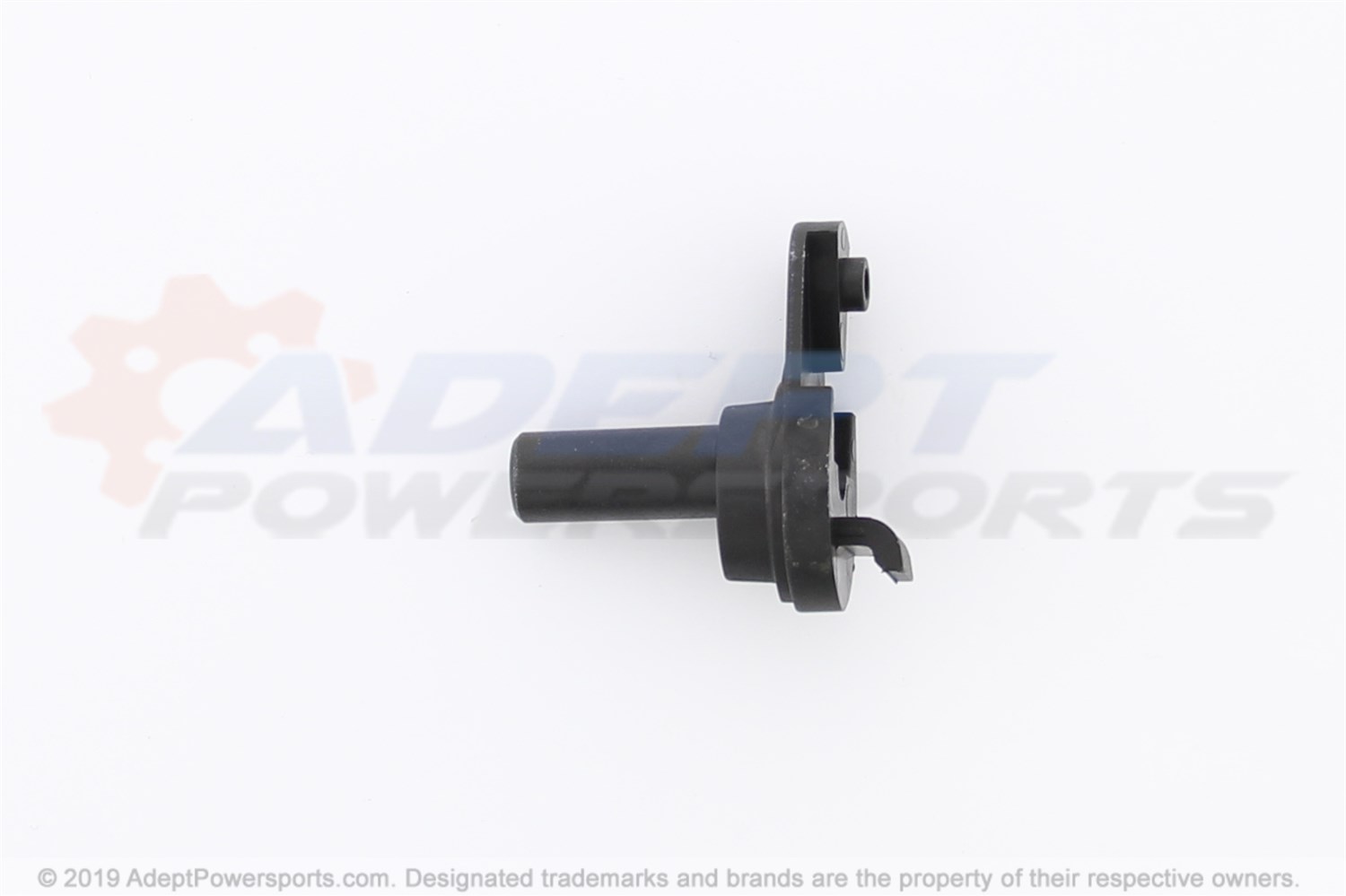

06	TURN INDICATOR HOLDER Part #: 63132306801 Required per assembly: 2 Currently Not Available
07	PLUG-IN NUT - 5,1 Part #: 46622307857 Required per assembly: 2 Currently Not Available
08	SHEET METAL SCREW - ST3,5X19-Z1 Part #: 07119901142 Required per assembly: 2 Currently Not Available
