OEM Parts Aprilia 1997 Aprilia RS 50 Electrical System I

1997 Aprilia RS 50 - Electrical System I

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

MAIN SWITCH - STEERING LOCK

Part #: AP8212342
Currently Not Available
2

APRILIA MILLED KEY

Part #: AP8102880
Currently Not Available
3

SHEAR RIVET M8X16*

Part #: AP8150349
Currently Not Available
4

HEX SOCKET SCREW M8X16*

Part #: AP8150211
Currently Not Available
5

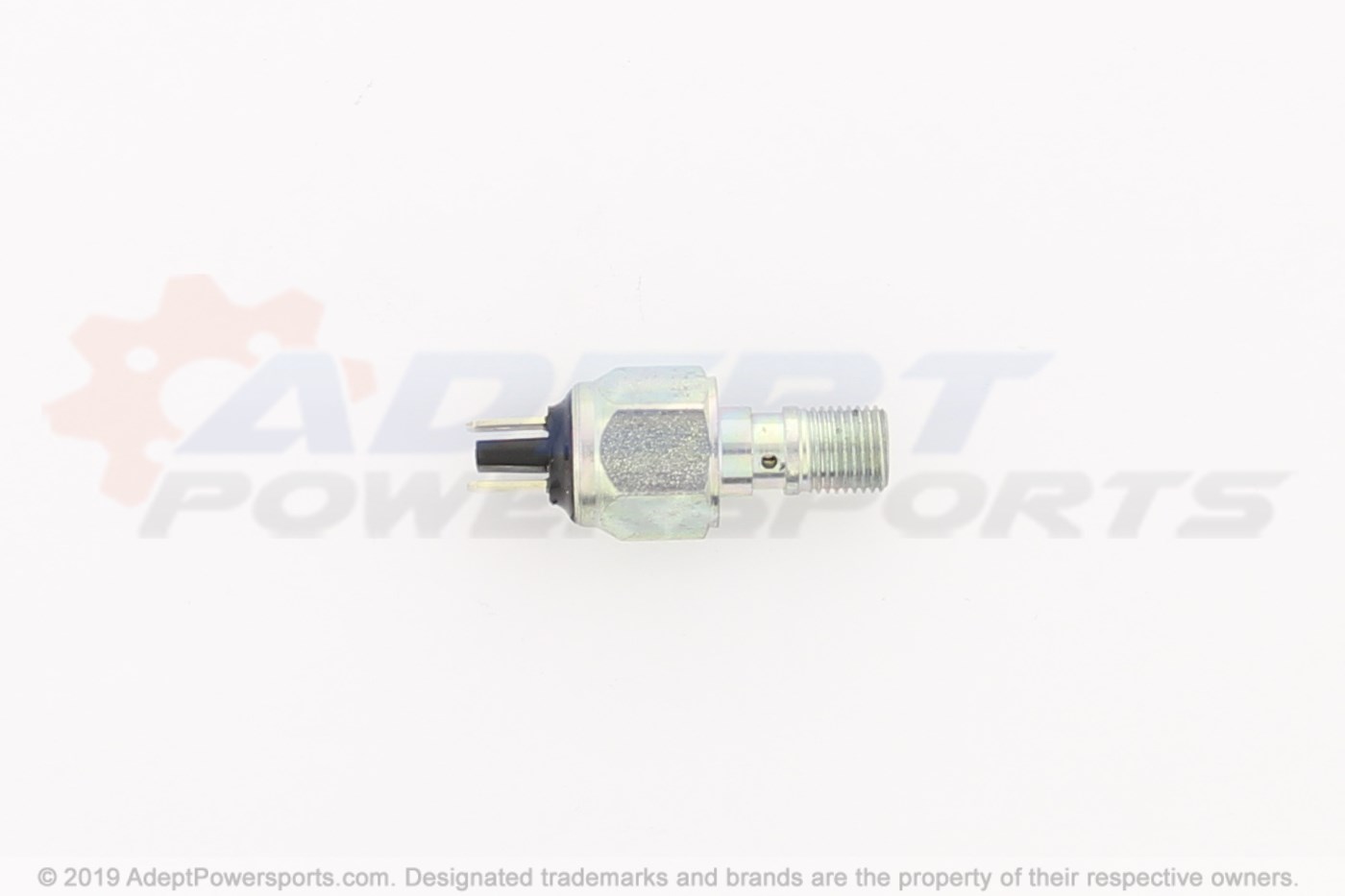

BRAKE LIGHT SWITCH

Part #: AP8124479
Currently Not Available
6

SCREW W/ FLANGE M6X30*

Part #: AP8152281
Currently Not Available
7

VOLTAGE REGULATOR

Part #: AP8212121
Currently Not Available
8

RUBBER SPACER 10X20X10

Part #: AP8120030
Currently Not Available
9

T BUSH *

Part #: AP8121665
Currently Not Available
10

WASHER 6, 6X18X1, 6*

Part #: AP8150015
$1.07
$0.87
-
+
Add to cart
11

SCREW W/ FLANGE M6X20*

Part #: AP8152279
Currently Not Available
12

HORN

Part #: AP8212421
Currently Not Available
13

MAIN WIRING HARNESS

Part #: AP8212418
Currently Not Available
14

FRONT BRAKE SWITCH+HARNESS

Part #: AP8212196
Currently Not Available
15

BALL 7,1

Part #: AP8201326
Currently Not Available
16

THERMISTOR

Part #: AP8222019
Currently Not Available
17

RUBBER SPACER *

Part #: AP8120482
Currently Not Available
