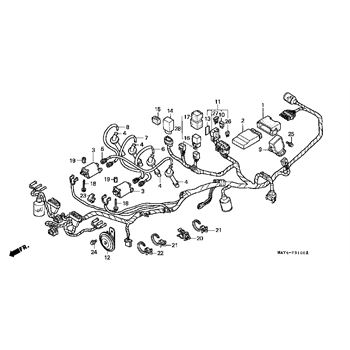

Wire Harness 97-98 replacement parts for 1997 Honda CBR1100XX

OEM Parts Honda 1997 Honda CBR1100XX Wire Harness 97-98

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CUSHION, SPARK, UNIT Part #: 30405-MT6-000 Required per assembly: 1 Not Available
002	MODULE, IGNITION, CONTROL, (CDI) Part #: 30410-MAT-671 Required per assembly: 1 Not Available
002	MODULE, IGN, CONT Part #: 30410-MAT-751 Required per assembly: 1 Not Available
003	COIL, IGNITION Part #: 30510-MM8-003 Required per assembly: 1 $129.90 $108.30 - + Add to cart
004	CAP ASSEMBLY Part #: 30700-MW4-000 Required per assembly: 4 Not Available
005	WIRE, IGNITION, (1) Part #: 30731-MAT-000 Required per assembly: 1 $29.38 $23.78 - + Add to cart
006	WIRE, IGNITION, (2) Part #: 30732-MAT-000 Required per assembly: 1 $25.17 $20.37 - + Add to cart
007	WIRE, IGNITION, (3) Part #: 30733-MAT-000 Required per assembly: 1 $28.31 $22.91 - + Add to cart
008	WIRE, IGNITION, (4) Part #: 30734-MAT-000 Required per assembly: 1 $25.17 $20.37 - + Add to cart
009	SET, REGULATOR Part #: 31600-MY7-305 Required per assembly: 1 Not Available
010	DIODE, THREE, WAY Part #: 31730-MAS-601 Required per assembly: 1 $12.53 $10.44 - + Add to cart
011	WIRE HARNESS Part #: 32100-MAT-750 Required per assembly: 1 Not Available
011	WIRE HARNESS Part #: 32100-MAT-670 Required per assembly: 1 Not Available
012	HORN Part #: 38110-KW3-008 Required per assembly: 1 Not Available
013	LABEL, FUSE Part #: 38215-MAT-610 Required per assembly: 1 Not Available
014	RELAY, TURN, SIGNAL Part #: 38301-KK9-952 Required per assembly: 1 Note: MITSUBA $78.75 $65.64 - + Add to cart
015	SUSPENSION Part #: 38306-KK4-000 Required per assembly: 1 $4.32 $3.93 - + Add to cart
016	RELAY, STARTER Part #: 38501-GN2-014 Required per assembly: 4 $57.54 $47.98 - + Add to cart
017	SUSPENSION Part #: 38506-GC7-611 Required per assembly: 4 $5.41 $4.86 - + Add to cart
018	BOLT Part #: 90091-P0A-000 Required per assembly: 4 $11.69 $10.63 - + Add to cart
019	NUT (6X19) Part #: 90282-MAT-000 Required per assembly: 4 $4.28 - + Add to cart
020	CLAMP, CLUTCH, HOSE Part #: 90650-MAT-000 Required per assembly: 1 $3.94 - + Add to cart
021	STRAP, CABLE, (118MM) Part #: 90672-SA0-003 Required per assembly: 1 $7.49 $7.13 - + Add to cart
022	CLIP, CABLE, (20MM) Part #: 90690-GHB-661 Required per assembly: 1 $3.15 $2.93 - + Add to cart
023	CLAMP Part #: 91594-SV4-003 Required per assembly: 1 $2.99 $2.78 - + Add to cart
024	BOLT, FLANGE, (8X12) Part #: 95701-08012-07 Required per assembly: 1 $2.79 $2.60 - + Add to cart
025	BOLT, FLANGE, (6X14) Part #: 96001-06014-07 Required per assembly: 1 $2.22 $2.06 - + Add to cart
026	FUSE, MINI, (10A) Part #: 98200-41000 Required per assembly: 6 $2.34 $2.17 - + Add to cart
027	FUSE, MINI, (20A) Part #: 98200-42000 Required per assembly: 3 $2.27 $2.10 - + Add to cart
028	RELAY, ASSEMBLY, STARTER Part #: 38500-GC7-612 Required per assembly: 2 $54.81 $45.70 - + Add to cart
