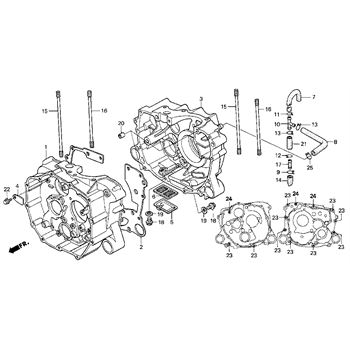

Crankcase replacement parts for 1997 Honda TRX250 RECON (TRX250)

OEM Parts Honda 1997 Honda TRX250 RECON (TRX250) Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CRANKCASE, FR. Part #: 11100-HM8-000 Required per assembly: 1 $405.23 $352.55 - + Add to cart
002	GASKET, CRANKCASE Part #: 11191-HM8-000 Required per assembly: 1 $29.84 $24.88 - + Add to cart
003	CRANKCASE, RR. Part #: 11200-HM8-000 Required per assembly: 1 Not Available
004	PLATE, CAM, FIXING Part #: 14115-HM8-000 Required per assembly: 1 $5.18 - + Add to cart
005	STRAINER, OIL Part #: 15153-HM8-000 Required per assembly: 1 $6.88 $6.08 - + Add to cart
006	SCREEN, OIL, FILTER Part #: 15421-ZE9-003 Required per assembly: 1 $14.74 $11.17 - + Add to cart
007	TUBE, BREATHER Part #: 15761-HM8-000 Required per assembly: 1 Not Available
008	TUBE, BREATHER Part #: 15762-HM8-000 Required per assembly: 1 Not Available
009	CLIP, OIL, DRAIN, TUBE Part #: 15771-551-000 Required per assembly: 1 $10.95 $9.96 - + Add to cart
010	JOINT (THREE-WAY) Part #: 15772-376-000 Required per assembly: 1 $21.30 $17.24 - + Add to cart
011	CLIP, BREATHER, TUBE Part #: 15772-551-000 Required per assembly: 2 $3.03 $2.81 - + Add to cart
012	CLIP, BREATHER, TUBE Part #: 17316-HA0-000 Required per assembly: 6 $5.19 - + Add to cart
013	CLIP, BREATHER, TUBE Part #: 17316-611-000 Required per assembly: 1 $10.71 $9.95 - + Add to cart
014	TUBE, DRAIN Part #: 17358-HM8-000 Required per assembly: 1 $5.92 $5.30 - + Add to cart
015	BOLT, STUD, (8X193) Part #: 90031-HM8-000 Required per assembly: 2 Not Available
016	BOLT, STUD, (8X117) Part #: 90032-HM8-000 Required per assembly: 2 Not Available
017	JOINT, TUBE Part #: 91463-393-780 Required per assembly: 1 $2.79 $2.60 - + Add to cart
018	BOLT, DRAIN, (12MM) Part #: 92800-12000 Required per assembly: 2 $4.86 $4.42 - + Add to cart
019	WASHER, DRAIN, (12MM) Part #: 94109-12000 Required per assembly: 2 $2.17 $1.97 - + Add to cart
020	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 $3.21 $2.99 - + Add to cart
021	BULK HOSE (12X1000) Part #: 95005-12001-20M Required per assembly: 1 $38.95 $35.96 - + Add to cart
022	BOLT, FLANGE, (6X16) Part #: 95701-06016-00 Required per assembly: 2 Note: 95701-06016-08* $2.63 $2.44 - + Add to cart
023	BOLT, FLANGE, (6X40) Part #: 95701-06040-00 Required per assembly: 1 $2.87 $2.67 - + Add to cart
024	BOLT, FLANGE, (6X65) Part #: 95701-06065-00 Required per assembly: 1 $2.52 $2.33 - + Add to cart
025	CLIP, SUB-TANK, HOSE Part #: 17724-102-700 Required per assembly: 5 $5.41 $4.62 - + Add to cart
