Carburetor replacement parts for 1997 Suzuki GSX-R1100W

OEM Parts Suzuki 1997 Suzuki GSX R1100W Carburetor

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

2-2	CARBURETOR, ASSEMBLY, ML Part #: 13202-46EC0 Required per assembly: 1 Note: MODEL S/T/V/W Not Available
5	DIAPHRAGM Part #: 13507-17C02 Required per assembly: 4 $38.21 $32.66 - + Add to cart
6-1	VALVE, PISTON Part #: 13501-17C00 Required per assembly: 4 Not Available
6-2	VALVE, PISTON Part #: 13501-02D00 Required per assembly: 4 $101.13 $86.45 - + Add to cart
7	NEEDLE CLIP Part #: 13394-10010 Required per assembly: 4 Note: E RING $5.90 $5.31 - + Add to cart
8	RING Part #: 13382-42A00 Required per assembly: 4 $5.78 $5.20 - + Add to cart
9	RING Part #: 13387-47010 Required per assembly: 4 $9.59 $8.63 - + Add to cart
10-1	SPRING Part #: 13417-17D00 Required per assembly: 2 $9.53 $8.58 - + Add to cart
10-2	SPRING Part #: 13417-17D00 Required per assembly: 2 $9.53 $8.58 - + Add to cart
10-3	SPRING Part #: 13503-34A00 Required per assembly: 2 Note: ML,MR Not Available
10-4	SPRING Part #: 13503-34A00 Required per assembly: 4 Note: ML,MR Not Available

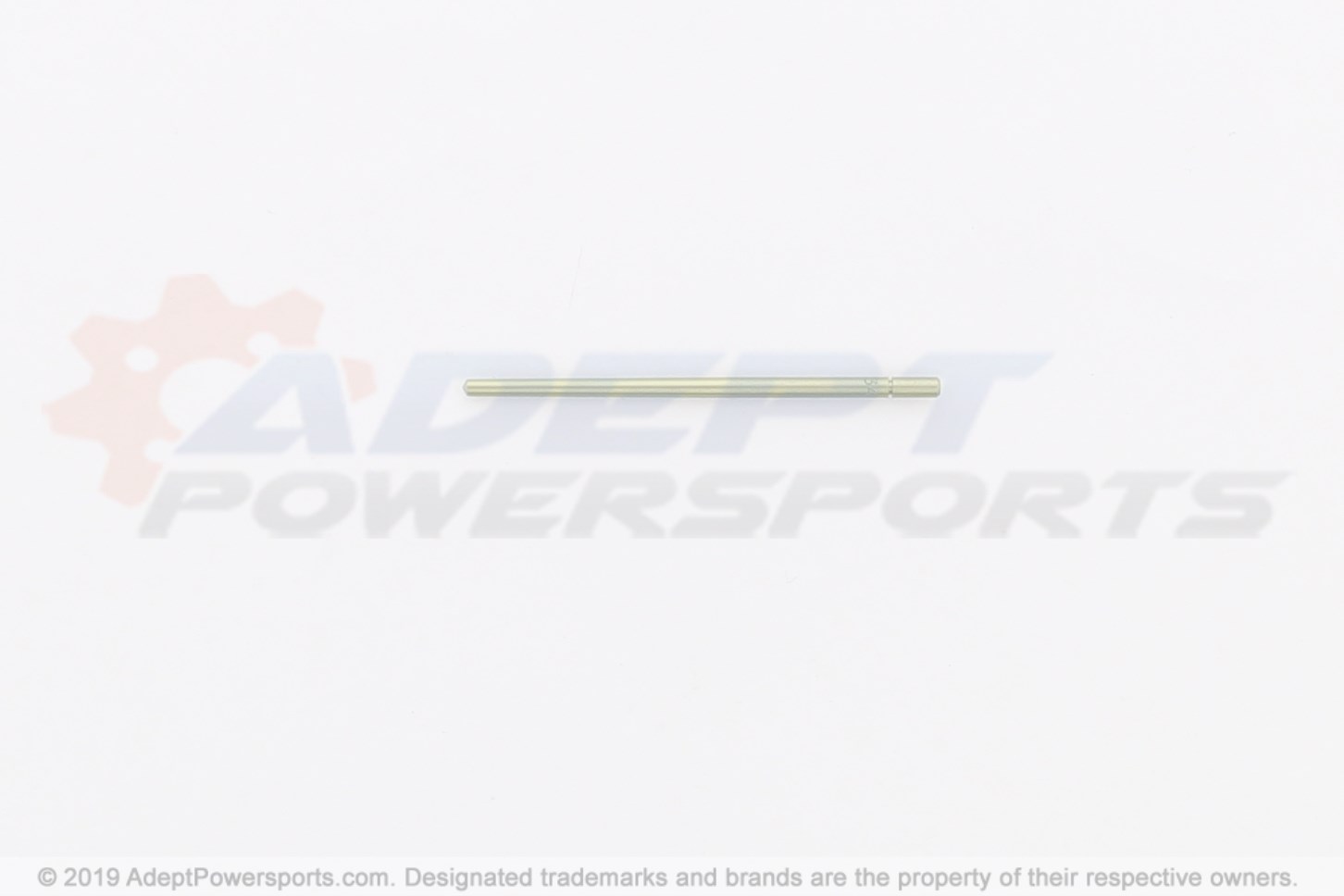

11-1	JET NEEDLE (5C34-1) Part #: 13383-46E20 Required per assembly: 4 Note: MODEL P/R Not Available
11-2	JET NEEDLE (5D75) Part #: 13383-46E60 Required per assembly: 4 Note: MODEL S/T/V/W Not Available
11-3	JET NEEDLE (5D62-1) Part #: 13383-46E30 Required per assembly: 4 Note: CALIFORNIA ONLY Not Available
12	GASKET, FLOAT, CHAMBER Part #: 13258-44B00 Required per assembly: 4 $12.63 $11.37 - + Add to cart
13	JET, PILOT, (30) Part #: 09492-30010 Required per assembly: 4 $19.35 $16.53 - + Add to cart
14-1	NEEDLE JET (O-8M) Part #: 09494-00851 Required per assembly: 4 Note: MODEL P/R Not Available
14-2	NEEDLE JET (O-8M) Part #: 09494-00851 Required per assembly: 4 Note: MODEL P/R Not Available
14-3	NEEDLE JET (O-8M) Part #: 09494-00852 Required per assembly: 4 Note: MODEL S/T/V/W (CALIFORNIA ONLY) Not Available
14-4	NEEDLE JET (O-8M) Part #: 09494-00852 Required per assembly: 4 Note: MODEL S/T/V/W (CALIFORNIA ONLY) Not Available
15	O RING Part #: 13509-17C00 Required per assembly: 4 $5.52 $4.97 - + Add to cart
16-1	JET, MAIN, (127.5) Part #: 09491-25011 Required per assembly: 2 $11.97 $10.77 - + Add to cart
16-2	JET, MAIN, (117.5) Part #: 09491-23017 Required per assembly: 2 Note: E33 - US California model $12.43 $11.19 - + Add to cart
16-3	JET, MAIN, (125) Part #: 09491-25010 Required per assembly: 2 $11.58 $10.42 - + Add to cart
16-4	JET, MAIN, (120) Part #: 09491-24016 Required per assembly: 2 $11.97 $10.77 - + Add to cart
16-5	JET, MAIN, (122.5) Part #: 09491-24013 Required per assembly: 4 $12.39 $11.15 - + Add to cart
16-6	JET, MAIN, (117.5) Part #: 09491-23017 Required per assembly: 4 Note: E33 - US California model $12.43 $11.19 - + Add to cart
17-1	FLOAT ASSEMBLY Part #: 13250-40C00 Required per assembly: 4 Note: FLOAT/NEEDLE VALVE ASSY; Not Available
17-2	FLOAT/NEEDLE VALVE ASSEMBLY Part #: 13250-12EH0 Required per assembly: 4 $127.30 $108.84 - + Add to cart
18	O RING Part #: 13374-46710 Required per assembly: 4 $5.78 $5.20 - + Add to cart
19-1	SCREW Part #: 02112-7516A Required per assembly: 8 Note: MODEL K1/K2/K3 $3.03 $2.73 - + Add to cart
19-2	SCREW Part #: 02112-7516A Required per assembly: 8 Note: MODEL K1/K2/K3 $3.03 $2.73 - + Add to cart
20-1	SCREW Part #: 02112-05127 Required per assembly: 8 $2.45 $2.21 - + Add to cart
20-2	SCREW Part #: 02112-05127 Required per assembly: 8 $2.45 $2.21 - + Add to cart
21	CAP Part #: 13508-17C00 Required per assembly: 3 Note: FRONT $6.03 $5.43 - + Add to cart
22-1	CLIP Part #: 13671-05A40 Required per assembly: 3 $4.93 $4.44 - + Add to cart
22-2	CLIP Part #: 13671-05A40 Required per assembly: 3 $4.93 $4.44 - + Add to cart
23	SCREW, DRAIN Part #: 13247-02340 Required per assembly: 4 $6.44 $5.80 - + Add to cart
24-1	COVER, DIAPHRAGM Part #: 13502-17E20 Required per assembly: 4 Not Available
24-2	COVER, DIAPHRAGM Part #: 13502-41C00 Required per assembly: 4 $55.79 $47.69 - + Add to cart
24-3	COVER, DIAPHRAGM Part #: 13502-17C00 Required per assembly: 4 Not Available
25	CAP, STARTER Part #: 13418-17C01 Required per assembly: 4 $5.57 $5.01 - + Add to cart
26	HOLDER Part #: 13418-17C10 Required per assembly: 4 Note: HOLDER, GUIDE; $15.70 $14.13 - + Add to cart
27	SPRING Part #: 13417-26D00 Required per assembly: 4 $6.58 $5.92 - + Add to cart
28	PLUNGER ASSEMBLY Part #: 13411-05320 Required per assembly: 4 $30.25 $25.86 - + Add to cart
29-1	JET, AIR, (1.3) Part #: 09493-26004 Required per assembly: 4 Note: JET, PILOT AIR (1.3); $17.88 $15.29 - + Add to cart
29-2	JET, PILOT, AIR, (1.2) Part #: 09493-24007 Required per assembly: 4 Note: JET, AIR (1.2); $16.97 $14.51 - + Add to cart
29-4	JET, PILOT, AIR, (1.2) Part #: 09493-24007 Required per assembly: 4 Note: JET, AIR (1.2); $16.97 $14.51 - + Add to cart
30	WASHER Part #: 13432-47090 Required per assembly: 4 $2.48 $2.23 - + Add to cart
31	WASHER Part #: 13382-44030 Required per assembly: 4 Note: MODEL V $4.72 $4.25 - + Add to cart
32	O RING Part #: 13374-35C00 Required per assembly: 4 $7.73 $6.96 - + Add to cart
33-1	VALVE, ASSEMBLY, NEEDLE Part #: 13370-46E21 Required per assembly: 4 $82.34 $70.38 - + Add to cart
33-2	VALVE, ASSEMBLY, NEEDLE Part #: 13370-46E21 Required per assembly: 4 $82.34 $70.38 - + Add to cart
33-3	VALVE, ASSEMBLY, NEEDLE Part #: 13370-46E21 Required per assembly: 4 $82.34 $70.38 - + Add to cart
34-1	SCREW, PILOT, (2, 7/8) Part #: 13279-47070 Required per assembly: 4 Note: SCREW, PILOT (1 1/2); $17.25 $14.75 - + Add to cart
34-2	SCREW, PILOT, (2, 7/8) Part #: 13279-47070 Required per assembly: 4 Note: SCREW, PILOT (1 1/2); $17.25 $14.75 - + Add to cart
35	SPRING Part #: 13268-47070 Required per assembly: 4 $5.60 $5.04 - + Add to cart
36	GASKET Part #: 13291-29900 Required per assembly: 4 Note: WASHER; $2.19 $1.97 - + Add to cart
37	O RING Part #: 13295-29901 Required per assembly: 4 $5.60 $5.04 - + Add to cart
