Primary Clutch replacement parts for 1997 Yamaha G16AR

OEM Parts Yamaha 1997 Yamaha G16AR Primary Clutch

PRIMARY CLUTCH Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PRIMARY FIXED SHEAVE ASSEMBLY Part #: JN6-G6201-04-00 Required per assembly: 1 Not Available
2	PRIMARY FIXED SHEAVE Part #: JN6-G6210-00-00 Required per assembly: 1 $216.50 - + Add to cart
3	PRIMARY SLIDING SHEAVE Part #: JN6-G6220-00-00 Required per assembly: 1 Not Available
4	SEAL, OIL Part #: 93101-28831-00 Required per assembly: 2 Not Available
5	BUSH, BIMETAL, FORMED Part #: 90384-27823-00 Required per assembly: 2 Not Available
6	NIPPLE, GREASE Part #: 93700-06810-00 Required per assembly: 1 Note: Sold in multiples of 10 only Not Available

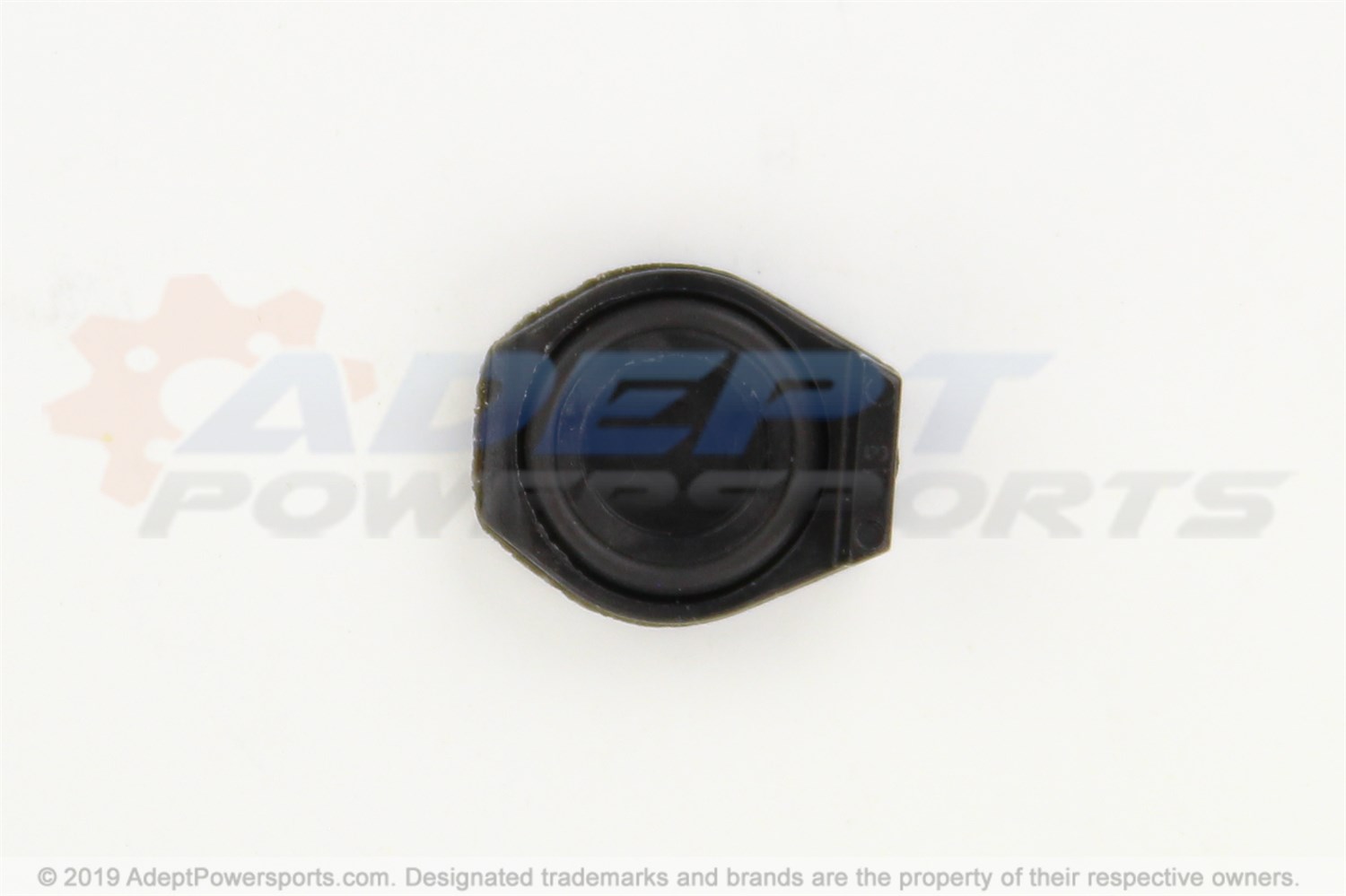

7	PLUG Part #: 90338-04840-00 Required per assembly: 3 $3.99 $2.64 - + Add to cart
8	WEIGHT 1 Part #: JN6-G6232-00-00 Required per assembly: 3 $24.98 $20.94 - + Add to cart
9	BOLT Part #: 90109-06860-00 Required per assembly: 3 $26.98 $23.18 - + Add to cart
10	NUT, SELF-LOCKING Part #: 90185-06834-00 Required per assembly: 3 $2.99 $1.69 - + Add to cart
11	SPIDER/ROLLER KIT Part #: JU0-G6430-00-00 Required per assembly: 1 Not Available
12	SPIDER Part #: JN6-G6251-01-00 Required per assembly: 1 Note: USE AS A SET, SEE TECHNICAL BULLETIN G03-005 $70.98 $55.73 - + Add to cart
13	COLLAR, ROLLER Part #: JN6-G6258-02-00 Required per assembly: 3 Note: USE AS A SET, SEE TECHNICAL BULLETIN G03-005 Not Available
14	PIN, DOWEL Part #: 93610-358A3-00 Required per assembly: 3 Not Available
15	SLIDER Part #: JN6-G6253-00-00 Required per assembly: 6 $7.99 $5.16 - + Add to cart
16	CAP Part #: JU0-G6231-00-00 Required per assembly: 1 $52.99 $50.55 - + Add to cart
17	COVER, DUST Part #: JU0-G6297-00-00 Required per assembly: 1 $8.99 $6.59 - + Add to cart
18	BOLT, FLANGE Part #: 90105-06861-00 Required per assembly: 3 $2.04 $1.36 - + Add to cart
19	WASHER, PLATE Part #: 90201-228K5-00 Required per assembly: 1 Not Available
20	BOLT Part #: JN6-G6249-10-00 Required per assembly: 1 Not Available
21	SHIM, THRUST Part #: JN6-G621F-00-00 Required per assembly: 6 $2.99 $1.91 - + Add to cart
22	BELT Part #: J55-G6241-03-00 Required per assembly: 1 $47.99 $47.28 - + Add to cart
