Fuel Tank replacement parts for 1997 Yamaha Timberwolf (YFB250UJ)

OEM Parts Yamaha 1997 Yamaha Timberwolf (YFB250UJ) Fuel Tank

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	FUEL TANK COMP Part #: 4BD-24110-02-00 Required per assembly: 1 Not Available
002	CAP ASSEMBLY Part #: 5MV-24610-00-00 Required per assembly: 1 $63.99 $55.73 - + Add to cart

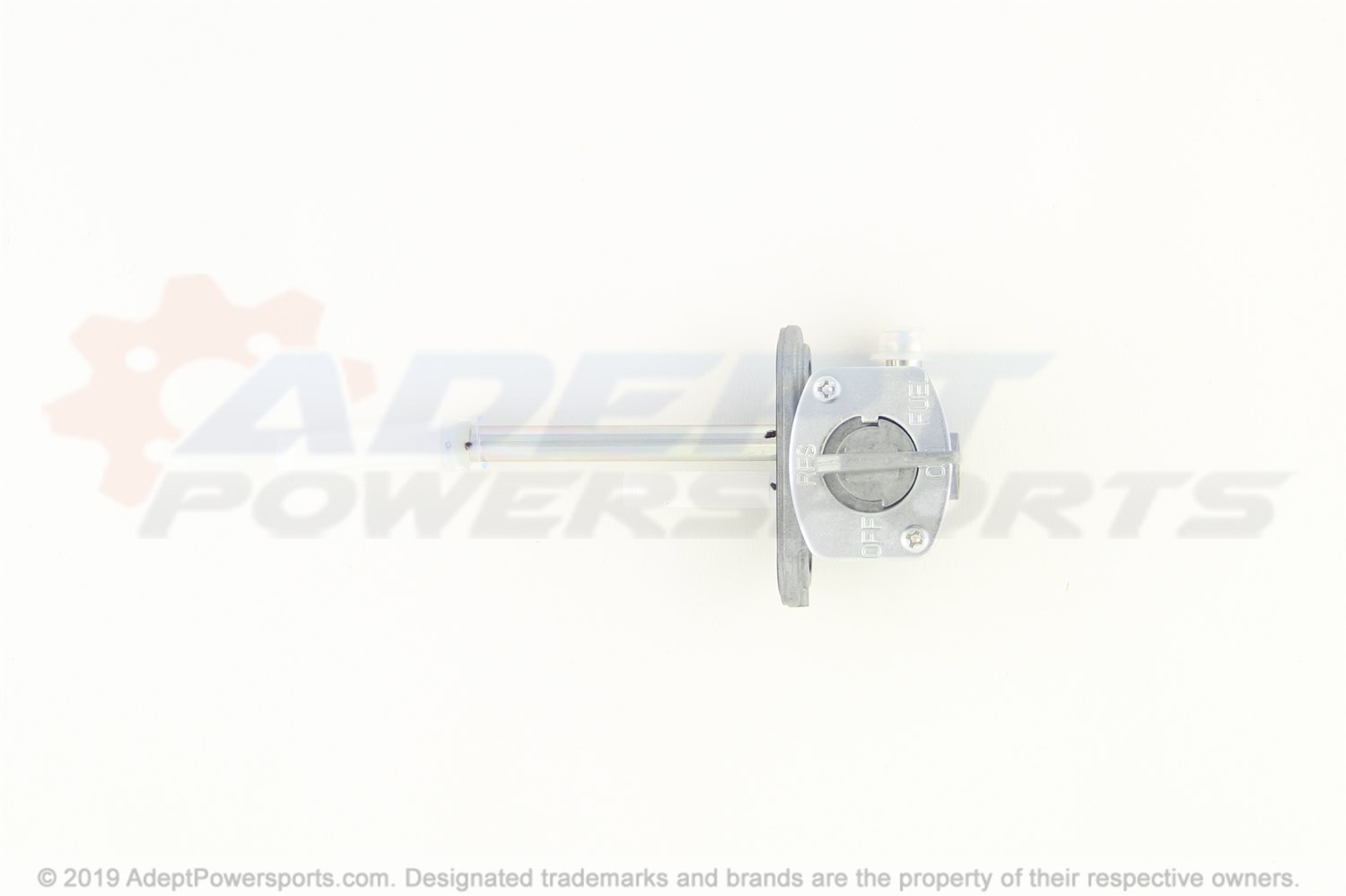

003	FUEL COCK ASSEMBLY 1 Part #: 3JN-24500-10-00 Required per assembly: 1 $48.99 $41.97 - + Add to cart
004	SEAL, COCK Part #: 3AJ-24534-01-00 Required per assembly: 1 $11.99 $9.15 - + Add to cart
005	SCREW, PAN, HEAD Part #: 98580-03008-00 Required per assembly: 4 $3.54 $2.25 - + Add to cart
006	O-RING Part #: 4X8-24512-00-00 Required per assembly: 1 $8.99 $6.58 - + Add to cart
007	WASHER, PLATE(3MB) Part #: 90202-05187-00 Required per assembly: 2 $1.70 $1.30 - + Add to cart
008	SCREW, SPEC'L, SHAPE Part #: 90149-06011-00 Required per assembly: 2 $2.04 $1.56 - + Add to cart
009	GROMMET Part #: 90480-18290-00 Required per assembly: 1 $9.49 $6.88 - + Add to cart
010	COLLAR Part #: 90387-066H4-00 Required per assembly: 2 $9.49 $6.17 - + Add to cart
011	BOLT, WITH, WASHER Part #: 90119-06073-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
012	GROMMET Part #: 90480-01400-00 Required per assembly: 1 $14.49 $9.89 - + Add to cart
013	WASHER, PLATE Part #: 90201-06090-00 Required per assembly: 1 $6.49 $5.07 - + Add to cart
014	COLLAR (1T2) Part #: 90387-07598-00 Required per assembly: 1 $6.49 $4.75 - + Add to cart
015	BOLT, WITH, WASHER Part #: 90119-06073-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
016	HOSE (L400) Part #: 90445-116K9-00 Required per assembly: 1 $26.98 $18.75 - + Add to cart
017	CLIP Part #: 90467-100A1-00 Required per assembly: 2 $8.49 $6.27 - + Add to cart
018	HOSE (L460) Part #: 90445-083J5-00 Required per assembly: 1 $11.49 $7.50 - + Add to cart
019	GROMMET Part #: 4BD-24339-00-00 Required per assembly: 1 $24.98 $19.13 - + Add to cart
020	DAMPER, LOCATING, 1 Part #: 4BD-24181-00-00 Required per assembly: 1 Not Available
021	DAMPER, PLATE, 1 Part #: 4BD-2414H-00-00 Required per assembly: 1 Not Available
