Air Shroud Fan replacement parts for 1997 Yamaha VK540EA

OEM Parts Yamaha 1997 Yamaha VK540EA Air Shroud Fan

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CASE, FAN Part #: 88T-12621-01-00 Required per assembly: 1 Note: (8H8-12621-01) Not Available
2	DAMPER, SHROUD, 6 Part #: 8Y0-12679-00-00 Required per assembly: 1 $9.49 $6.41 - + Add to cart
3	DAMPER, AIR, SHROUD, 1 Part #: 8Y0-12658-00-00 Required per assembly: 1 $43.99 $38.39 - + Add to cart
4	BOLT (8K4) Part #: 90101-08499-00 Required per assembly: 2 Note: (82G) $21.98 $21.58 - + Add to cart
5	WASHER, PLATE Part #: 92907-08600-00 Required per assembly: 2 $3.25 $2.46 - + Add to cart
6	BOLT, HEXAGON Part #: 97017-08055-00 Required per assembly: 1 $10.49 $6.74 - + Add to cart
7	WASHER, PLATE Part #: 92907-08600-00 Required per assembly: 1 $3.25 $2.46 - + Add to cart
8	BOLT, HEXAGON Part #: 97017-08075-00 Required per assembly: 1 Note: (97326-08075) $49.99 $43.79 - + Add to cart
9	WASHER, PLATE Part #: 92907-08600-00 Required per assembly: 1 $3.25 $2.46 - + Add to cart
10	BOLT, HEXAGON Part #: 97017-08075-00 Required per assembly: 1 Note: (97326-08075) $49.99 $43.79 - + Add to cart
11	BEARING Part #: 93306-20348-00 Required per assembly: 2 $44.99 $34.04 - + Add to cart
12	CIRCLIP, R-TYPE Part #: 93420-40064-00 Required per assembly: 1 $10.49 $6.86 - + Add to cart
13	WASHER, PLATE Part #: 90201-17713-00 Required per assembly: 1 $8.49 $6.11 - + Add to cart

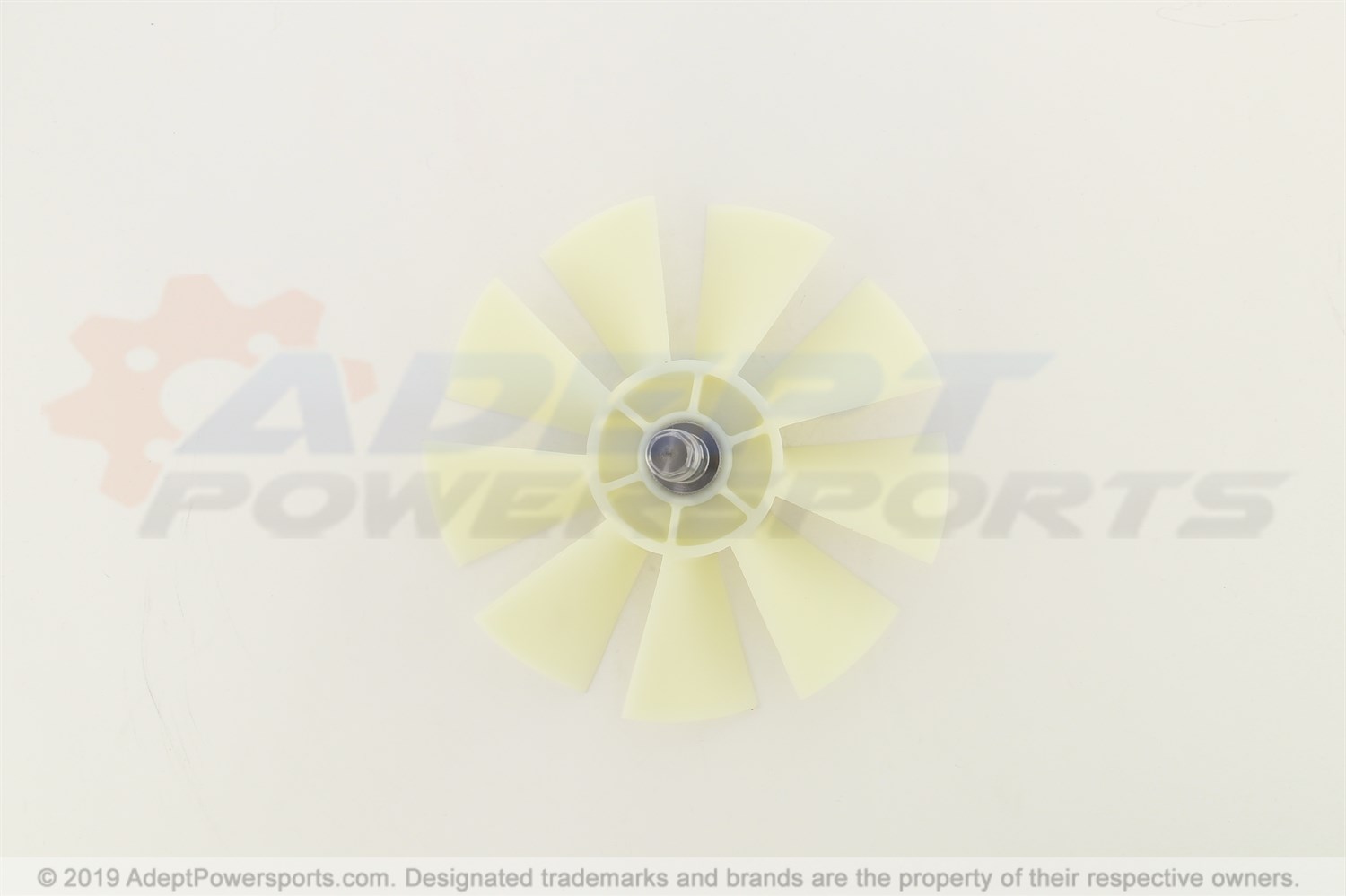

14	FAN Part #: 8H8-12611-01-00 Required per assembly: 1 $97.98 $82.06 - + Add to cart
15	KEY, WOODRUFF Part #: 90280-05014-00 Required per assembly: 1 $10.49 $7.68 - + Add to cart
16	PULLEY 2 Part #: 8H8-12619-01-00 Required per assembly: 2 $41.99 $32.31 - + Add to cart
17	WASHER, CLAW, (1.0T) Part #: 90214-17018-00 Required per assembly: 1 Note: UR Not Available
17	WASHER, CLAW, (0.5T) Part #: 90214-17017-00 Required per assembly: 1 Note: UR $8.49 $5.64 - + Add to cart
18	WASHER, SPRING Part #: 92907-16100-00 Required per assembly: 1 $16.48 $11.85 - + Add to cart
19	WASHER, PLATE Part #: 90201-17713-00 Required per assembly: 1 $8.49 $6.11 - + Add to cart
20	NUT Part #: 90170-16425-00 Required per assembly: 1 $10.49 $6.49 - + Add to cart
21	BELT Part #: 8H8-12612-00-00 Required per assembly: 1 $25.98 $19.07 - + Add to cart
22	PULLEY 1 Part #: 8H8-12618-01-00 Required per assembly: 1 $45.99 $36.50 - + Add to cart
23	AIR, SHROUD, CYLINDER, 1 Part #: 8H8-12651-02-00 Required per assembly: 1 $71.98 $70.90 - + Add to cart
24	EMBLEM, YAMAHA Part #: 99246-00080-00 Required per assembly: 1 $22.98 $17.40 - + Add to cart
25	DAMPER, AIR, SHROUD, 1 Part #: 8H8-12658-00-00 Required per assembly: 2 $9.49 $7.20 - + Add to cart
26	DAMPER, AIR, SHROUD, 2 Part #: 8H8-12659-00-00 Required per assembly: 1 $5.99 $4.90 - + Add to cart
27	DAMPER, AIR, SHROUD, 4 Part #: 8H8-12669-00-00 Required per assembly: 1 $4.45 $3.70 - + Add to cart
28	DAMPER, AIR, SHROUD, 5 Part #: 8V8-12678-00-00 Required per assembly: 1 $7.99 $6.47 - + Add to cart
30	BOLT, WITH, WASHER Part #: 90119-06108-00 Required per assembly: 4 $9.49 $6.55 - + Add to cart
31	AIR, SHROUD, CYLINDER, 2 Part #: 8H8-12652-00-00 Required per assembly: 1 $44.99 $39.25 - + Add to cart
32	COVER, FAN, CASE Part #: 8L0-12616-00-00 Required per assembly: 1 $33.99 $29.59 - + Add to cart
33	STAY 1 Part #: 8Y0-12637-02-00 Required per assembly: 1 $33.99 $27.75 - + Add to cart
34	DAMPER, DUCT, 4 Part #: 8Y0-12687-02-00 Required per assembly: 1 $10.49 $8.75 - + Add to cart
35	RIVET (8Y0) Part #: 90269-05051-00 Required per assembly: 4 $0.50 $0.41 - + Add to cart
37	LABEL, CAUTION Part #: 8K4-12628-00-00 Required per assembly: 1 $12.49 $9.96 - + Add to cart
39	DAMPER, SHROUD, 6 Part #: 8AT-12679-00-00 Required per assembly: 1 $8.49 $7.20 - + Add to cart
