Front Master Cylinder replacement parts for 1997 Yamaha YZF1000RJC

OEM Parts Yamaha 1997 Yamaha YZF1000RJC Front Master Cylinder

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

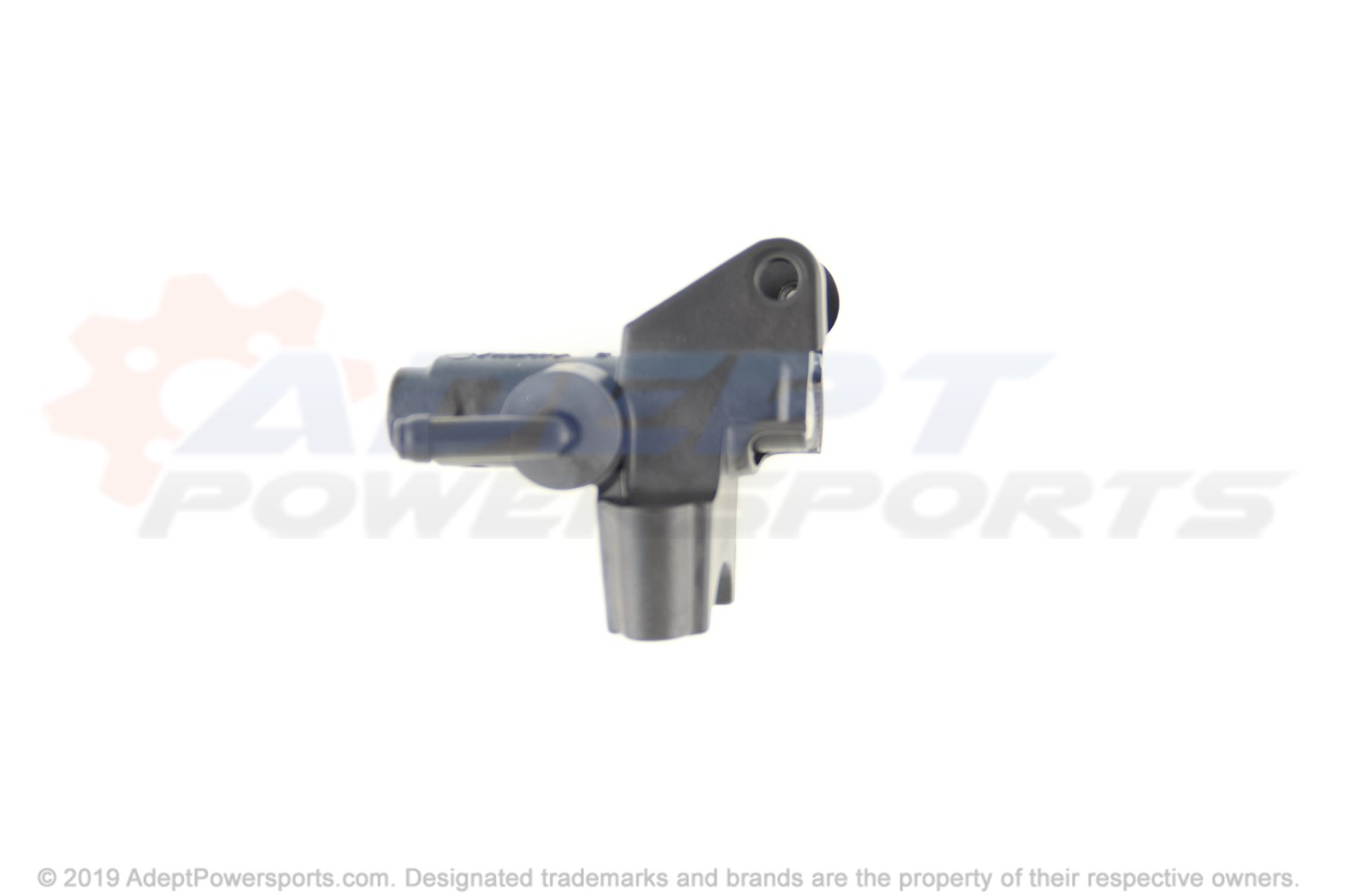

001	MASTER CYLINDER SUB ASSEMBLY Part #: 4SV-W2587-10-00 Required per assembly: 1 $246.99 $212.90 - + Add to cart
002	CYLINDER, KIT, MASTER Part #: 4SV-W0041-00-00 Required per assembly: 1 $104.98 $86.94 - + Add to cart
003	O-RING (22U) Part #: 93210-15566-00 Required per assembly: 1 Note: Sold in multiples of 5 only $8.49 $5.67 - + Add to cart
004	CIRCLIP Part #: 2VN-25866-00-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
005	COVER, DUST Part #: 3FV-2589A-00-00 Required per assembly: 1 $22.98 $16.78 - + Add to cart
006	BRACKET, MASTER, CYLINDER Part #: 56A-25867-00-00 Required per assembly: 1 $31.98 $24.22 - + Add to cart
007	BOLT, FLANGE Part #: 90105-060A0-00 Required per assembly: 2 $9.49 $6.59 - + Add to cart
008	LEVER 2 Part #: 4SV-83922-00-00 Required per assembly: 1 $77.98 $70.16 - + Add to cart
009	BOLT, LEVER Part #: 3FV-2589F-00-00 Required per assembly: 1 $17.98 $12.49 - + Add to cart
010	NUT, SELF-LOCKING Part #: 95617-06100-00 Required per assembly: 2 $2.89 $2.28 - + Add to cart
011	TANK, RESERVOIR Part #: 3FV-25894-00-00 Required per assembly: 1 $65.98 $54.37 - + Add to cart
012	CAP, RESERVOIR Part #: 3GM-25852-50-00 Required per assembly: 1 $32.99 $24.86 - + Add to cart
013	DIAPHRAGM, RESERVOIR Part #: 3FV-25854-00-00 Required per assembly: 1 $30.98 $20.88 - + Add to cart
014	BUSH, DIAPHRAGM Part #: 2J2-25855-50-00 Required per assembly: 1 $5.99 $5.22 - + Add to cart
015	FRONT STOP SWITCH ASSEMBLY Part #: 4HM-83980-00-00 Required per assembly: 1 $45.99 $36.06 - + Add to cart
016	SCREW, PAN, HEAD Part #: 98517-04012-00 Required per assembly: 4 $4.20 $3.21 - + Add to cart
017	YBS67-4, WASHER, SPRING Part #: 92990-04100-00 Required per assembly: 2 $0.86 $0.61 - + Add to cart
018	WASHER, PLAIN, (646) Part #: 92990-04600-00 Required per assembly: 1 $0.99 $0.91 - + Add to cart
019	HOSE Part #: 3GM-2585F-00-00 Required per assembly: 1 Not Available
020	CLIP, PIPE, 1 Part #: 3PA-24356-00-00 Required per assembly: 2 $8.49 $6.67 - + Add to cart
021	HOLDER Part #: 3FV-2589G-00-00 Required per assembly: 1 $39.99 $31.83 - + Add to cart
022	SCREW W/WASHER Part #: 3GM-2589H-00-00 Required per assembly: 1 Note: (USA) $8.49 $6.27 - + Add to cart
023	STAY Part #: 4FM-26292-00-00 Required per assembly: 1 Not Available
025	HOSE, BRAKE, 1 Part #: 4SV-25872-01-00 Required per assembly: 1 Not Available
026	HOSE, BRAKE, 2 Part #: 4SV-25873-01-00 Required per assembly: 1 Not Available
027	BRACKET, HORN Part #: 4SV-23377-00-00 Required per assembly: 1 Not Available
028	CLAMP 1 Part #: 90461-08031-00 Required per assembly: 2 $9.49 $6.40 - + Add to cart
029	BOLT, FLANGE Part #: 95817-06012-00 Required per assembly: 2 $1.95 $1.47 - + Add to cart
030	BOLT, UNION Part #: 90401-10038-00 Required per assembly: 1 $13.49 $11.01 - + Add to cart
031	BOLT, UNION, (3GM) Part #: 90401-10159-00 Required per assembly: 1 $12.49 $8.69 - + Add to cart
032	WASHER, PLATE Part #: 90201-10118-00 Required per assembly: 4 Note: Sold in multiples of 5 only $3.79 $2.84 - + Add to cart
