Left Crankcase Cover replacement parts for 1998 Honda INTERCEPTOR (VFR800FI)

OEM Parts Honda 1998 Honda INTERCEPTOR (VFR800FI) Left Crankcase Cover

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	COVER, ASSEMBLY, L. Part #: 11340-MBG-000 Required per assembly: 1 Not Available
002	PLATE Part #: 11365-MW4-000 Required per assembly: 1 Not Available
003	COVER, CHANGE Part #: 11630-MW4-000 Required per assembly: 1 $134.81 $122.55 - + Add to cart
004	GASKET, CHANGE, COVER Part #: 11632-MW4-020 Required per assembly: 1 $25.04 $20.88 - + Add to cart
005	PLATE, CHANGE, COVER Part #: 11633-MW4-000 Required per assembly: 1 $13.21 $11.02 - + Add to cart
006	WATER PUMP Part #: 19200-MBG-000 Required per assembly: 1 Not Available
007	COVER, WATER, PUMP Part #: 19220-MBG-000 Required per assembly: 1 Not Available
008	GASKET Part #: 19226-ML7-000 Required per assembly: 1 $5.92 $5.30 - + Add to cart

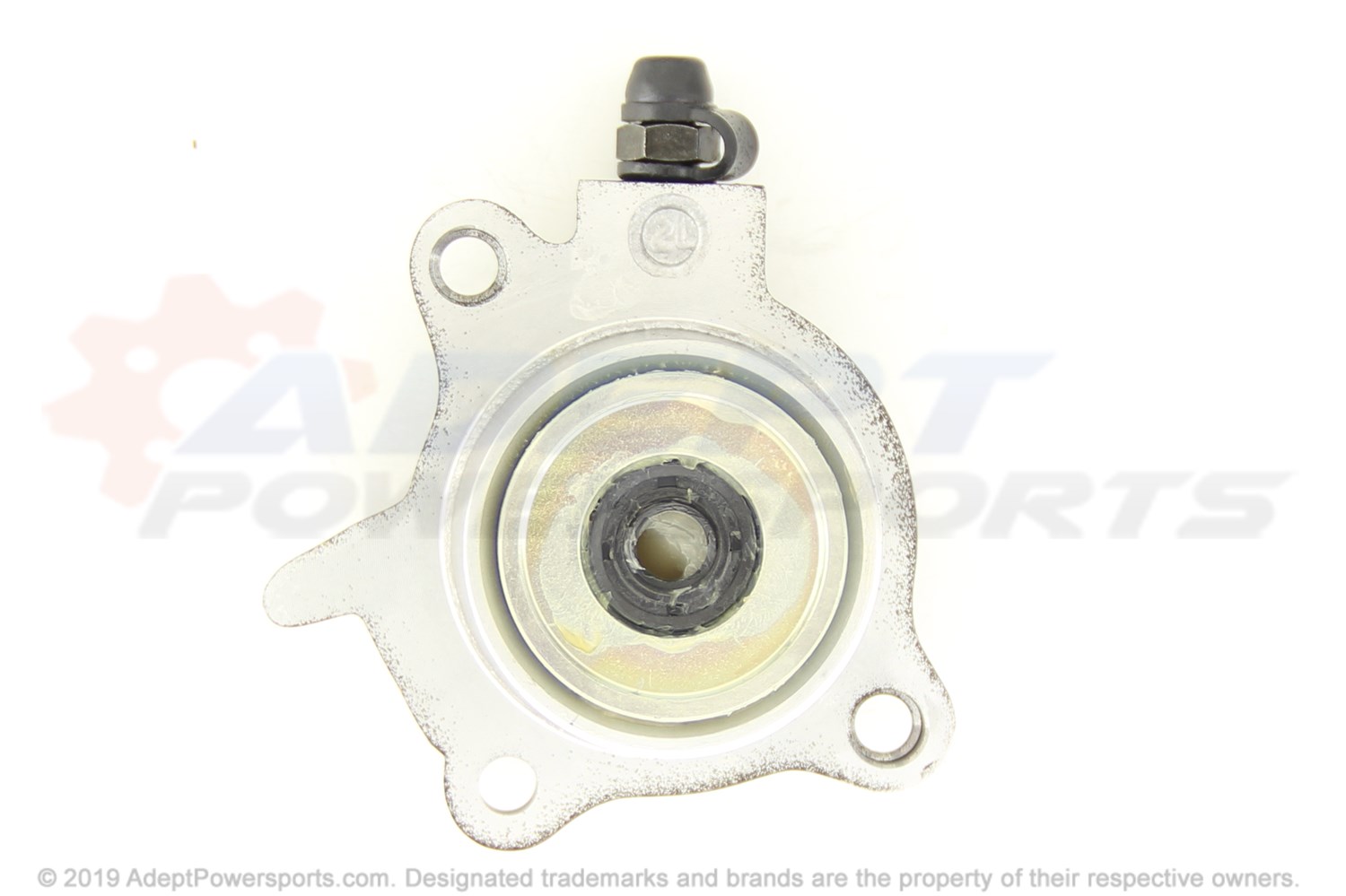

009	CYLINDER, SLAVE Part #: 22860-MT7-000 Required per assembly: 1 $227.51 $189.70 - + Add to cart
010	GASKET, SLAVE, CYLINDER Part #: 22862-MGJ-D00 Required per assembly: 1 $5.98 $5.34 - + Add to cart
011	PISTON Part #: 22863-MJ8-003 Required per assembly: 1 $30.89 $25.75 - + Add to cart
012	SPRING Part #: 22864-MT7-016 Required per assembly: 1 $7.46 $6.53 - + Add to cart
013	CUP, SLAVE, CYLINDER Part #: 22865-MJ8-003 Required per assembly: 1 $13.32 $11.11 - + Add to cart
014	SCREW, BLEEDER Part #: 22866-MF2-711 Required per assembly: 1 $6.15 $5.47 - + Add to cart
015	CAP, BLEEDER Part #: 43353-461-771 Required per assembly: 1 $6.07 $5.42 - + Add to cart
016	BOLT, FLANGE, (6X12) Part #: 90004-GHB-610 Required per assembly: 2 $4.28 $3.89 - + Add to cart
017	BOLT, FLANGE, (6X22) Part #: 90004-GHB-660 Required per assembly: 6 $5.14 $4.67 - + Add to cart
018	BOLT, FLANGE, (6X28) Part #: 90004-GHB-680 Required per assembly: 3 $4.99 $4.54 - + Add to cart
019	BOLT (6X12) (CT200) Part #: 90013-883-000 Required per assembly: 1 $2.55 $2.36 - + Add to cart
020	BOLT, FLANGE, (6X25) Part #: 90121-MV9-670 Required per assembly: 2 $4.00 $3.64 - + Add to cart
021	WASHER (6.5MM) Part #: 90463-ML7-000 Required per assembly: 1 $4.10 $3.73 - + Add to cart
022	BEARING (14MM) Part #: 91101-121-691 Required per assembly: 1 $31.48 $26.26 - + Add to cart
023	OIL SEAL (14X22X5) Part #: 91203-KK3-830 Required per assembly: 1 $5.18 $4.71 - + Add to cart
024	OIL SEAL (8X18X5) Part #: 91209-MB0-003 Required per assembly: 1 $5.43 $4.94 - + Add to cart
025	O-RING (32.95X2.62) Part #: 91302-MB0-013 Required per assembly: 1 $3.96 $3.60 - + Add to cart
026	PIN, DOWEL, (8X14) Part #: 94301-08140 Required per assembly: 2 $3.21 $2.99 - + Add to cart
027	BOLT, FLANGE, (6X35) Part #: 96001-06035-00 Required per assembly: 4 $2.41 $2.23 - + Add to cart
028	BOLT, FLANGE, (6X35) Part #: 96001-06035-07 Required per assembly: 1 $3.14 $2.91 - + Add to cart
029	BOLT, FLANGE, (6X75) Part #: 96001-06075-00 Required per assembly: 1 $3.19 $2.97 - + Add to cart
030	BOLT, FLANGE, (6X90) Part #: 96001-06090-07 Required per assembly: 1 Not Available
031	BOLT, FLANGE, (6X95) Part #: 96001-06095-07 Required per assembly: 2 $3.26 - + Add to cart
