2000 Aprilia Area 51 - Supply - Oil Pump

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SCREW M6X20

Part #: AP8502564
Currently Not Available
2

INTAKE MANIFOLD

Part #: AP8206466
Currently Not Available
3

REED VALVE ASSY

Part #: AP8206557
Currently Not Available
4

FUEL INTAKE VALVE GASKET

Part #: AP8206486
Currently Not Available
5

HOSE COLLAR

Part #: AP8206181
Currently Not Available
6

HOSE CLIP D8,5X5,5

Part #: AP8201225
Currently Not Available
7

HOSE CLAMP

Part #: AP8206711
Currently Not Available
8

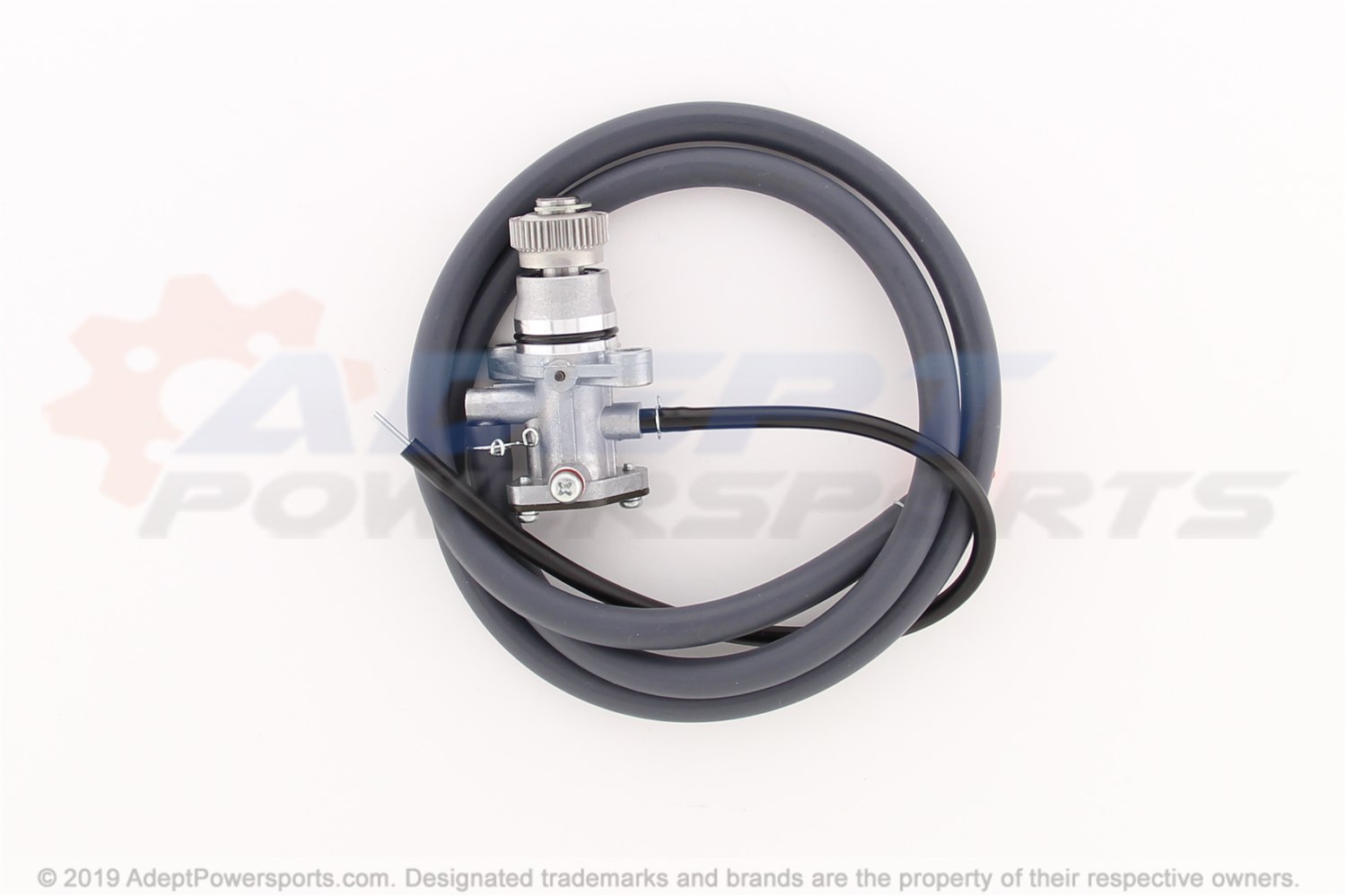

OIL PUMP ASSY.

Part #: AP8206119
Currently Not Available
9

SCREW M5X14

Part #: AP8508887
Currently Not Available
10

COVER+RUBBER

Part #: AP8206570
Currently Not Available
11

SCREW M5X14

Part #: AP8206696
Currently Not Available
12

HOSE CLAMP D11,3

Part #: AP8102378
Currently Not Available
13

ANTI-CONDENSATE BREATHER

Part #: AP8220548
Currently Not Available
