2000 Aprilia RS 250 - Primary Gear Shaft

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

CIRCLIP

Part #: AP8600292
Currently Not Available
2

2ND PINION GEAR Z=16

Part #: AP8600288
Currently Not Available
3

6TH PINION GEAR Z=25

Part #: AP8600291
Not Available
4

WASHER

Part #: AP8600294
Currently Not Available
5

3RD-4TH PINION GEAR Z=17-22

Part #: AP8600289
Currently Not Available
6

SNAP RING

Part #: AP8600295
Currently Not Available
7

BUSH

Part #: AP8600293
Currently Not Available
8

5TH PINION GEAR Z=24

Part #: AP8600290
Currently Not Available
9

PRIMARY GEAR SHAFT Z=11

Part #: AP8600287
Currently Not Available
10

BEARING 20X52X15

Part #: AP8600296
Currently Not Available
11

CHECK BEARING PLATE

Part #: AP8600410
Currently Not Available
12

SCREW M6X16

Part #: AP8600412
Currently Not Available
13

SCREW M6X16

Part #: AP8600412
Currently Not Available
14

STUD BOLT

Part #: AP8600073
Currently Not Available
15

STUD BOLT

Part #: AP8600074
Currently Not Available
16

STUD BOLT L=90

Part #: AP8600072
Currently Not Available
17

FORK SHAFT

Part #: AP8600331
Currently Not Available
18

FORK N3

Part #: AP8600329
Currently Not Available
19

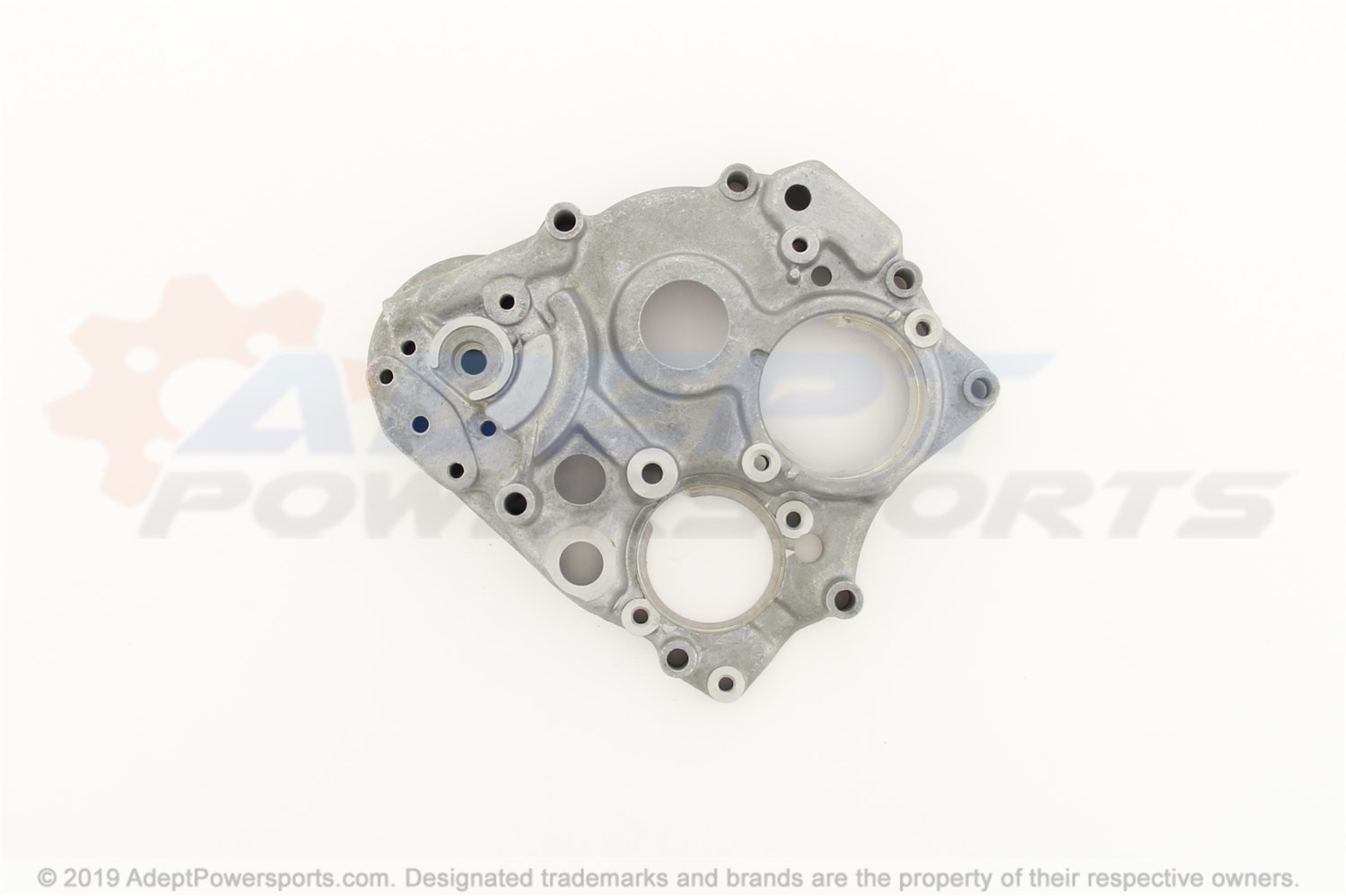

GEARBOX COVER

Part #: AP8600408
Currently Not Available
20

BEARING 17X40X12

Part #: AP8600297
Currently Not Available
21

PIN

Part #: AP8600075
Currently Not Available
22

NUT

Part #: AP8600076
Currently Not Available
