OEM Parts Aprilia 2000 Aprilia SR 125 150 Frame

2000 Aprilia SR 125-150 - Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

FRAME WITH ELECTRO-COATING

Part #: AP8146206
Currently Not Available
2

REAR FOOTRESTS, PAIR

Part #: AP8235058
Currently Not Available
3

FOOTREST PIN PG

Part #: AP8221286
Currently Not Available
4

STOP RING

Part #: AP8120573
Currently Not Available
5

BALL D6,35

Part #: AP8101861
Currently Not Available
6

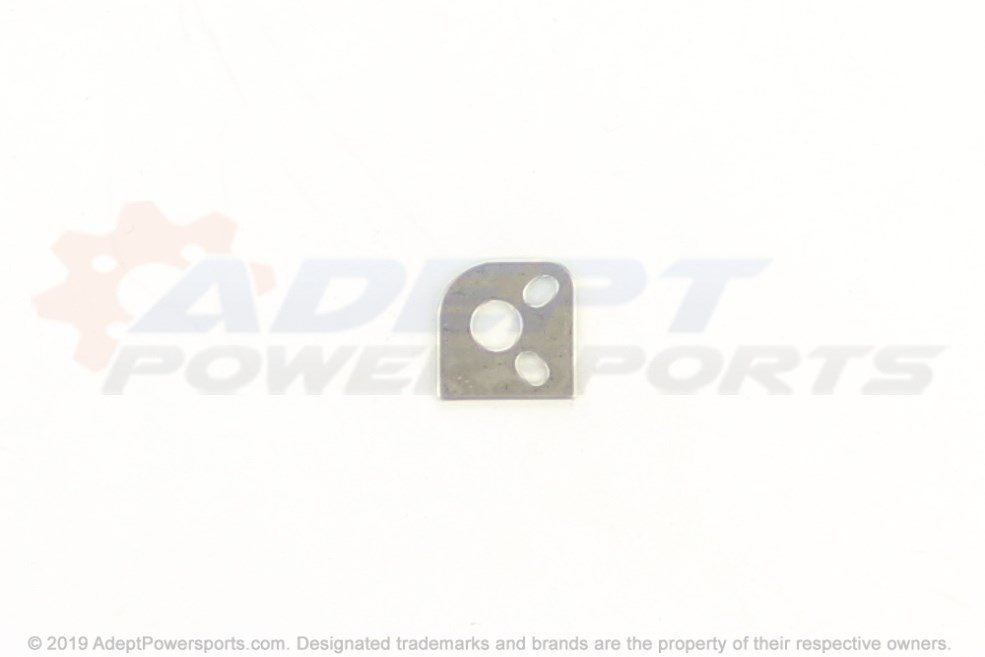

FOOTREST PLATE

Part #: AP8134451
$5.53
$4.53
-
+
Add to cart
7

COIL COMPRESS. SPRING *

Part #: AP8121133
Currently Not Available
8

CAPTIVE NUT M6

Part #: AP8152313
Currently Not Available
9

CLIP M6

Part #: 254485
Currently Not Available
11

UNDERPANEL SUPPORT

Part #: AP8146302
Not Available
12

UPPER FRONT SHIELD SUPPORT

Part #: AP8134586
Currently Not Available
13

FRONT SHIELD SUPPORT

Part #: AP8134620
Currently Not Available
14

SCREW W/ FLANGE M6X12*

Part #: AP8152277
Currently Not Available
16

HOSE CLAMP *

Part #: AP8120657
Currently Not Available
17

BUMPER

Part #: AP8148491
Currently Not Available
