Rear Brake Master Cylinder replacement parts for 2000 Honda INTERCEPTOR (VFR800FI)

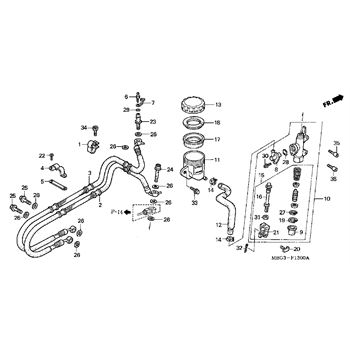

OEM Parts Honda 2000 Honda INTERCEPTOR (VFR800FI) Rear Brake Master Cylinder

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CLAMP, RR. Part #: 43156-MBG-000 Required per assembly: 1 Not Available
002	HOSE, RR., BRAKE, MAIN Part #: 43310-MBG-003 Required per assembly: 1 Not Available
003	SUB-HOSE, RR., BRAKE Part #: 43311-MBG-003 Required per assembly: 1 Not Available
004	CLAMP, BRAKE, HOSE Part #: 43312-MBG-000 Required per assembly: 2 $9.29 - + Add to cart
005	PLATE, BRAKE, HOSE Part #: 43313-MBG-000 Required per assembly: 2 $9.20 - + Add to cart
006	SCREW, BLEEDER Part #: 43352-MG9-006 Required per assembly: 1 $7.14 - + Add to cart
007	CAP, BLEEDER Part #: 43353-461-771 Required per assembly: 1 $7.28 - + Add to cart
008	CONNECTOR Part #: 43503-MB2-006 Required per assembly: 1 $14.39 - + Add to cart
009	BOOT Part #: 43504-MB2-006 Required per assembly: 1 $13.00 - + Add to cart
010	M/CYL, SUB-ASSEMBLY, RR. Part #: 43510-MBG-006 Required per assembly: 1 Not Available
011	CUP Part #: 43511-MA6-006 Required per assembly: 1 ~~$46.97~~ $39.13 - + Add to cart
012	HOSE, RR. Part #: 43512-MBG-006 Required per assembly: 1 Not Available
013	CAP, OIL, CUP Part #: 43513-MY1-006 Required per assembly: 1 ~~$34.07~~ $28.39 - + Add to cart
014	CLAMP Part #: 43514-445-771 Required per assembly: 2 $15.22 - + Add to cart
015	PISTON, SET, RR. Part #: 43520-MBG-006 Required per assembly: 1 Not Available
016	ROD, PUSH Part #: 43530-MBG-006 Required per assembly: 1 ~~$28.55~~ $24.45 - + Add to cart
017	DIAPHRAGM Part #: 45520-300-000 Required per assembly: 1 $11.91 - + Add to cart
018	PLATE, DIAPHRAGM Part #: 45521-MJ6-006 Required per assembly: 1 $5.92 - + Add to cart
019	CIRCLIP Part #: 46182-500-013 Required per assembly: 1 $6.48 - + Add to cart
020	PIN, BRAKE, ROD Part #: 46503-MAL-000 Required per assembly: 1 $7.82 - + Add to cart
021	JOINT, BRAKE, ROD Part #: 46504-MAL-601 Required per assembly: 1 $15.35 - + Add to cart
022	SCREW, PAN, (5X8) Part #: 90115-KV3-700 Required per assembly: 2 ~~$3.64~~ $3.55 - + Add to cart
023	BOLT, B, OIL, (10X22) Part #: 90145-MBG-003 Required per assembly: 1 $15.42 - + Add to cart
024	BOLT, OIL, (10X34) Part #: 90145-MR8-014 Required per assembly: 1 $9.07 - + Add to cart
025	BOLT, OIL, (10X22) Part #: 90145-MS9-612 Required per assembly: 2 $10.20 - + Add to cart
026	WASHER, OIL, BOLT Part #: 90545-300-000 Required per assembly: 4 ~~$4.80~~ $4.09 - + Add to cart
027	CIRCLIP, PISTON Part #: 90651-MBG-006 Required per assembly: 1 $3.87 - + Add to cart
028	O-RING (14.8X2.4) Part #: 91212-422-006 Required per assembly: 1 $3.49 - + Add to cart
029	O-RING Part #: 91355-MG9-006 Required per assembly: 1 $4.53 - + Add to cart
030	SCREW-WASHER (4X12) Part #: 93893-04012-07 Required per assembly: 1 ~~$2.37~~ $1.98 - + Add to cart
031	NUT, HEX., (8MM) Part #: 94002-08000-0S Required per assembly: 1 ~~$2.33~~ $1.96 - + Add to cart
032	PIN, SPLIT, (2.0X12) Part #: 94201-20120 Required per assembly: 1 ~~$2.07~~ $1.57 - + Add to cart
033	BOLT, FLANGE, (6X16) Part #: 95701-06016-07 Required per assembly: 2 ~~$2.63~~ $2.43 - + Add to cart
034	BOLT, SOCKET, (6X20) Part #: 96600-06020-07 Required per assembly: 4 ~~$2.07~~ $1.44 - + Add to cart
035	BOLT, SOCKET, (6X25) Part #: 96700-06025-00 Required per assembly: 2 $2.47 - + Add to cart
